Engine Mount: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000161
 3-Bar Engine Support Kit 303-F072

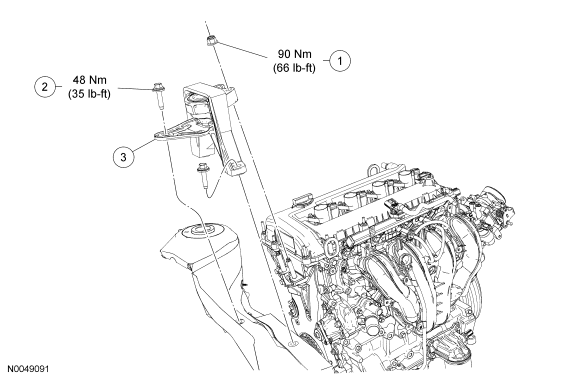

Fig 1: Engine Mount Replacement Components With Torque Specifications
GF0039285Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520214 Engine mount bracket nut (2 required)
2 W709417 Engine mount bracket bolt (3 required)
3 6F012 Engine mount
