Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

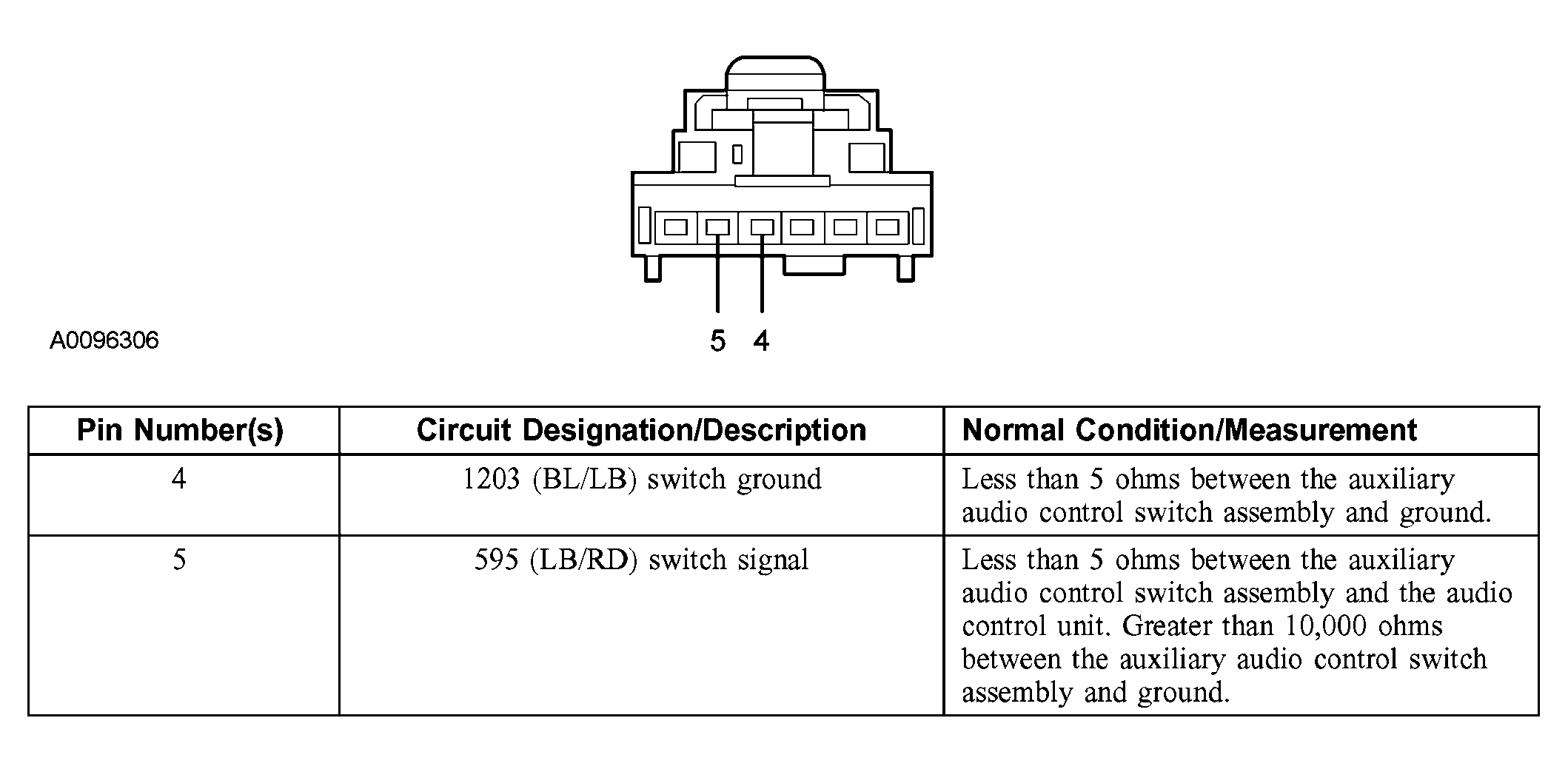

Fig 1: Identifying Auxiliary Audio Control Switch Assembly Connector

Courtesy of FORD MOTOR CO.

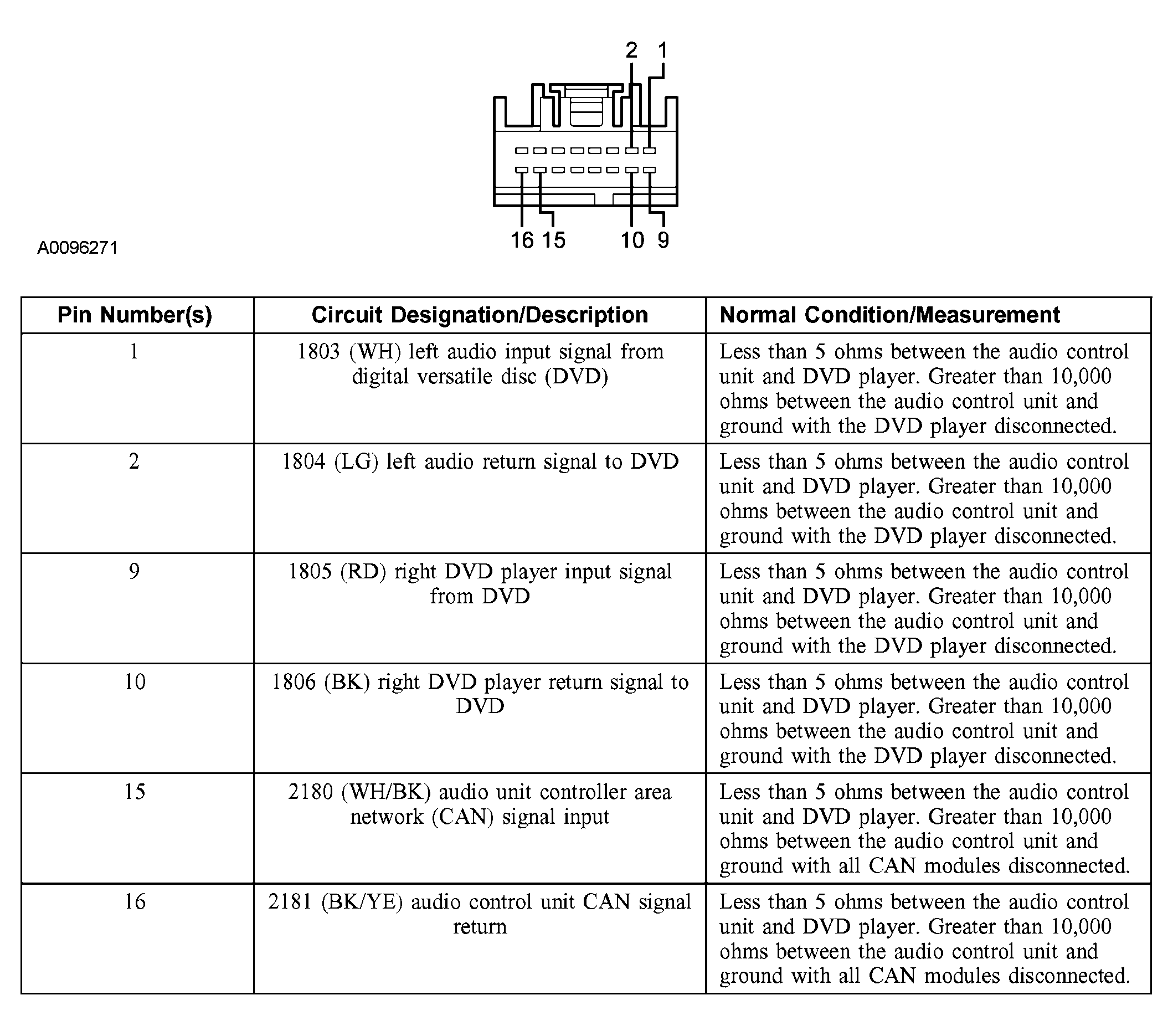

Fig 2: Identifying Audio Control Unit C240A Connector

Courtesy of FORD MOTOR CO.

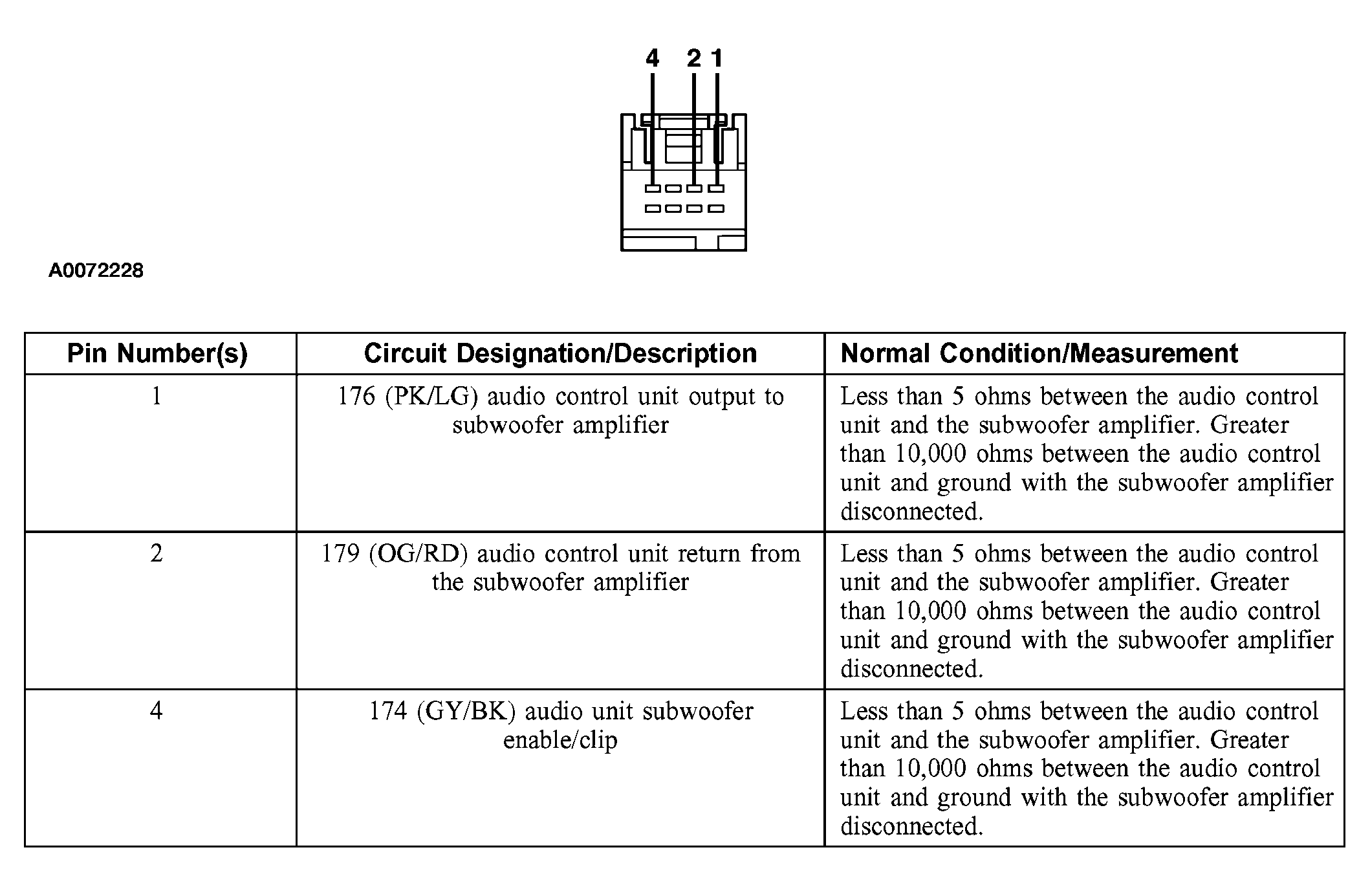

Fig 3: Identifying Audio Control Unit C240C Connector

Courtesy of FORD MOTOR CO.

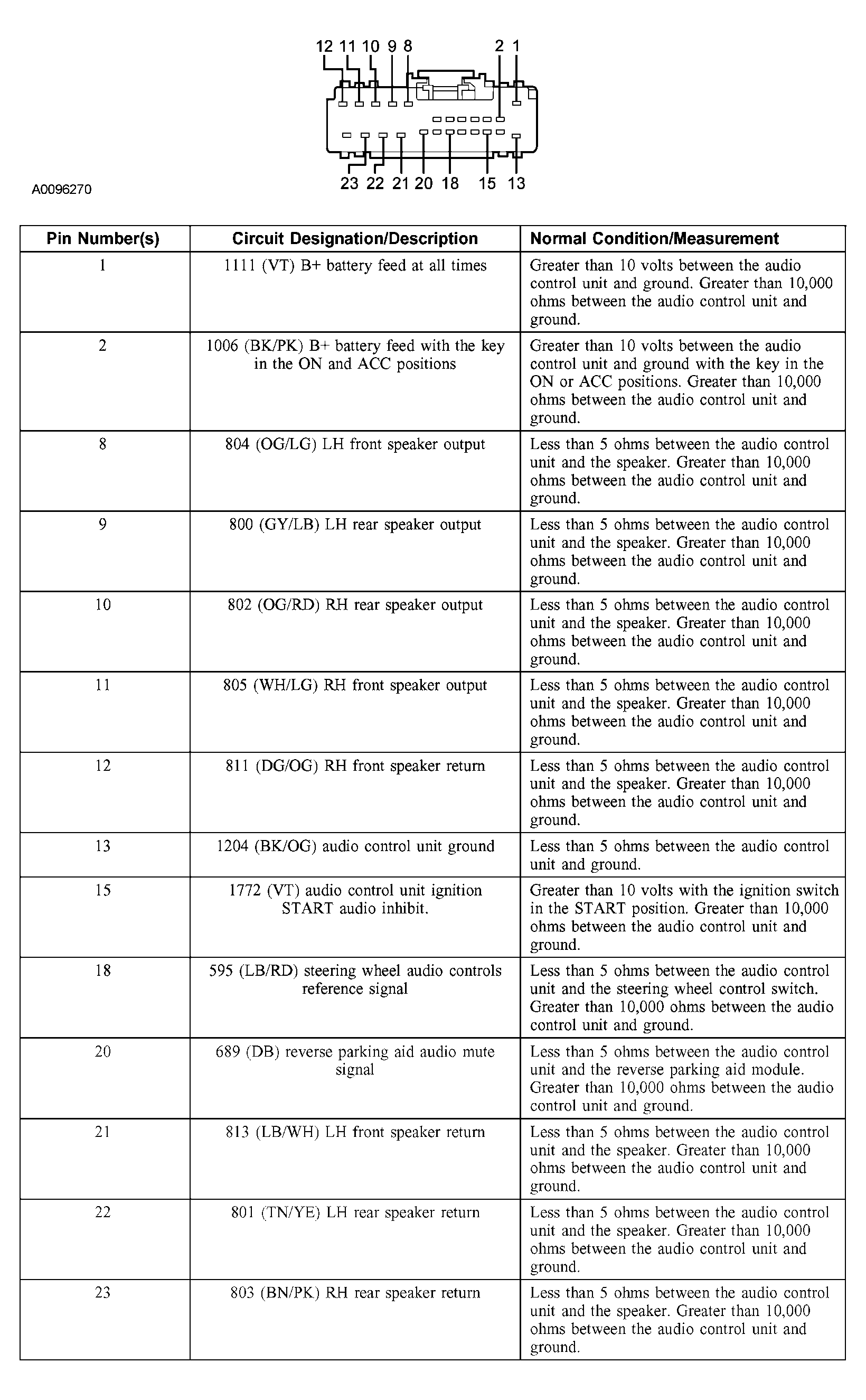

Fig 4: Identifying Audio Control Unit C240b Connector

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Speaker C523, C612, C702, C802 Connector

Courtesy of FORD MOTOR CO.

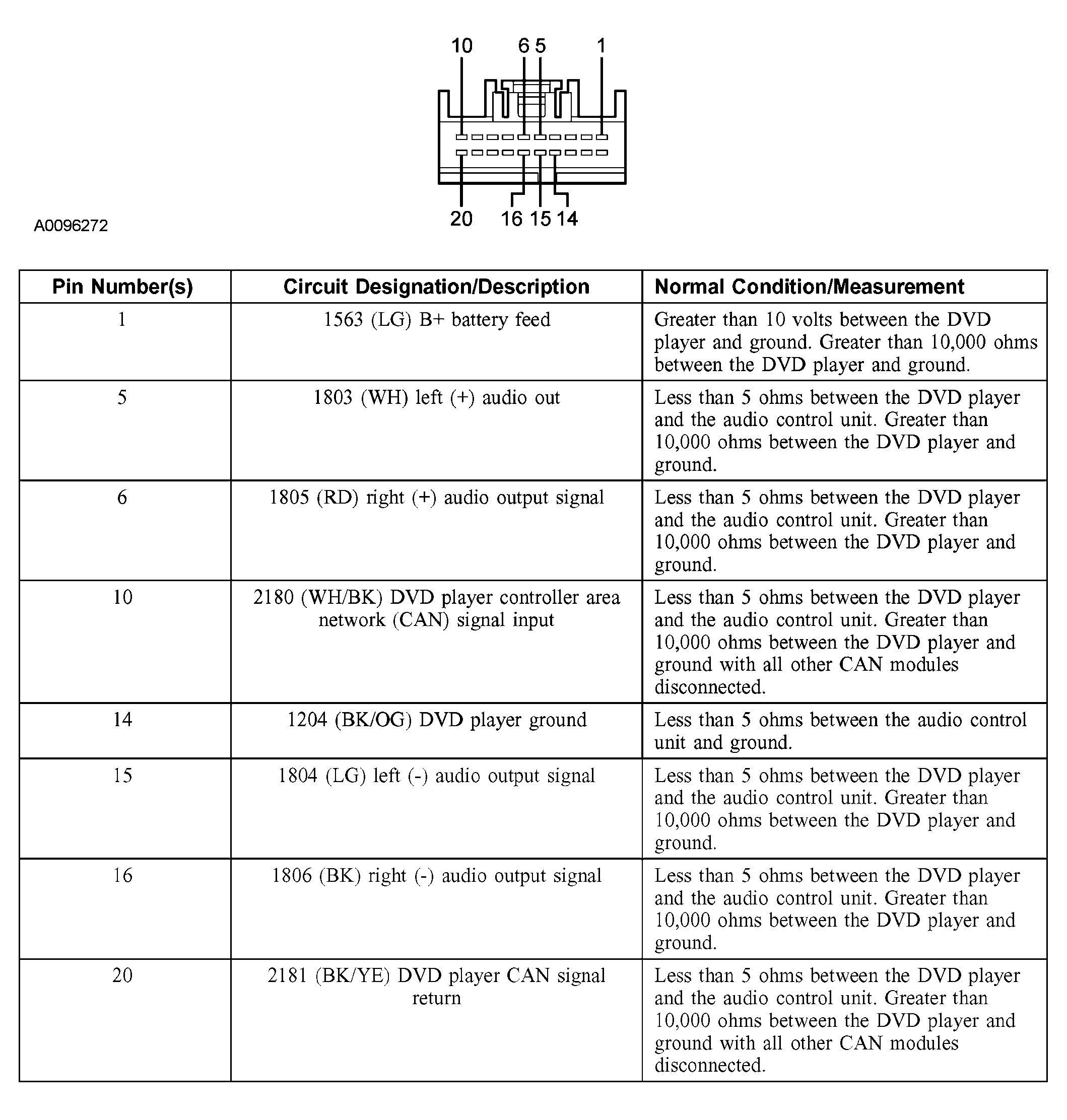

Fig 6: Identifying Digital Versatile Disc (DVD) Player C9029 Connector

Courtesy of FORD MOTOR CO.

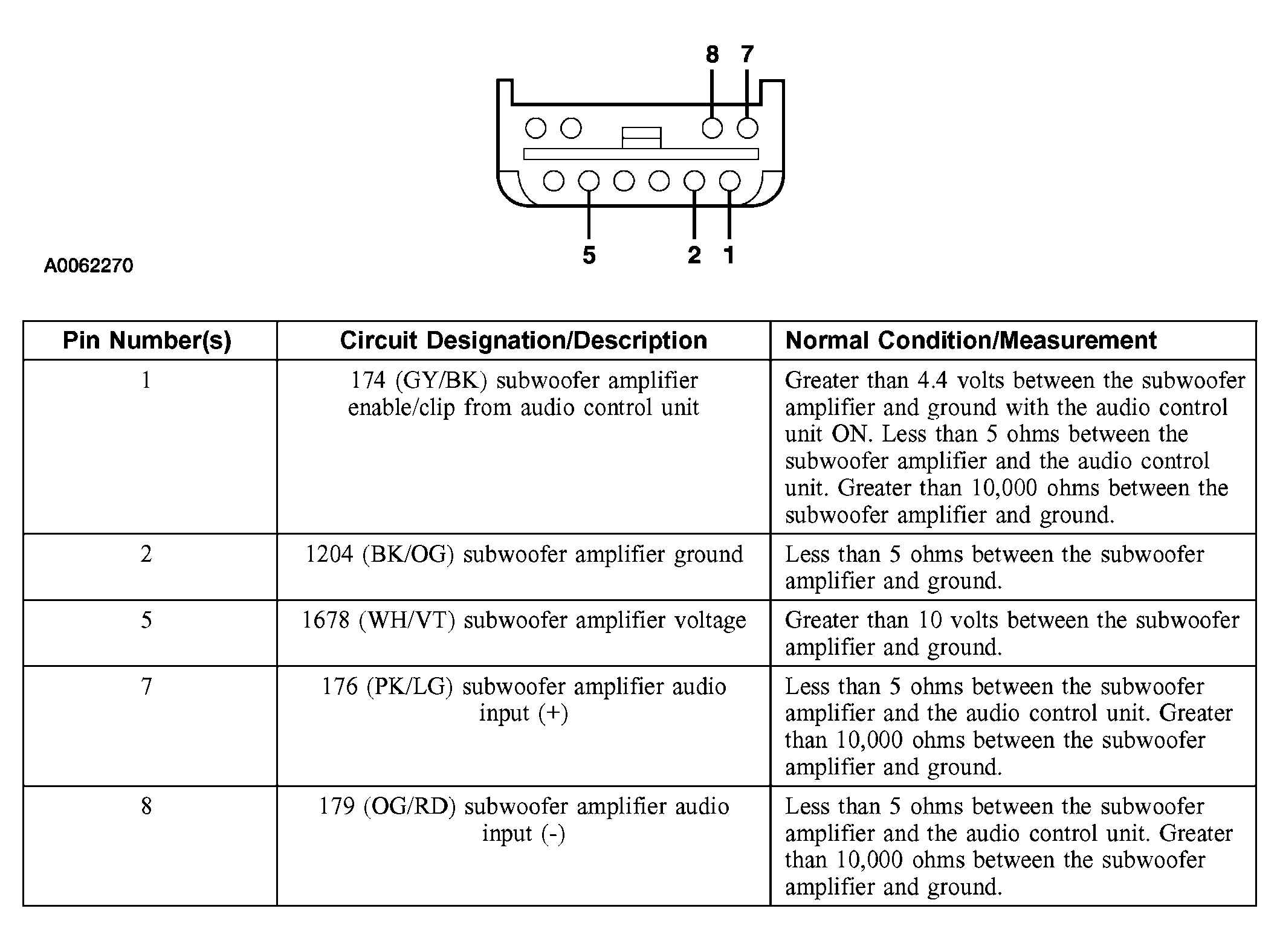

Fig 7: Identifying Subwoofer Amplifier C3041 (Freestyle) C466A (Five Hundred, Montego) Connector

Courtesy of FORD MOTOR CO.
