Climate Control Assembly: Notes

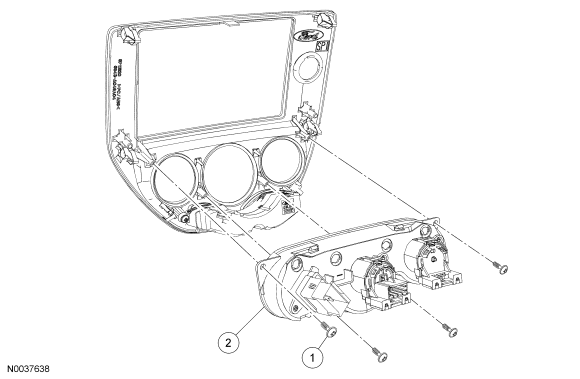

Fig 1: Exploded View Of Climate Control Assembly
GF0040388Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W7003922- SA309M Screw (4 required)
2 18C419 Climate control assembly
