A/C Compressor Cycling Switch Connector

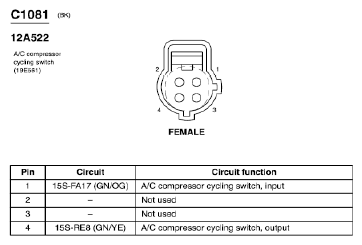

Fig 1: A/C Compressor Cycling Switch Connector End View (C1081)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
