Door Lock Unit Driver Side Front Connector

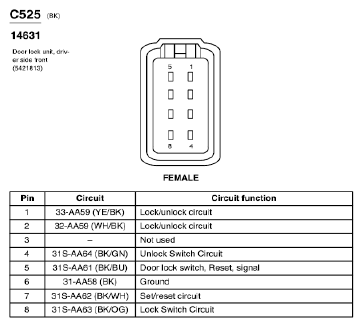

Fig 1: Door Lock Unit Driver Side Front Connector End View (C525)
G07850454Courtesy of FORD MOTOR CO.
