Gearshift Lever Unit Connector

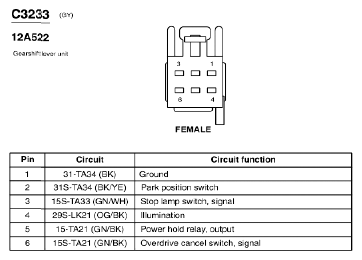

Fig 1: Gearshift Lever Unit Connector End View (C3233)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
