High Speed Fan Control Relay Connector

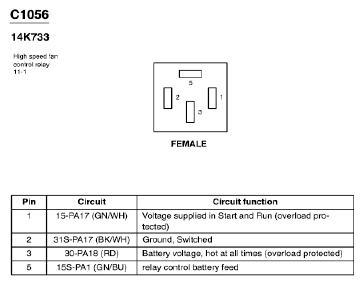

Fig 1: High Speed Fan Control Relay Connector End View (C1056)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
