One-Touch Window Relay Connector

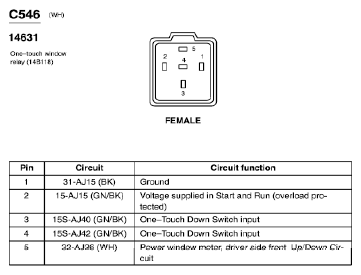

Fig 1: One-Touch Window Relay Connector End View (C546)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
