Power Steering Pressure Sensor Connector

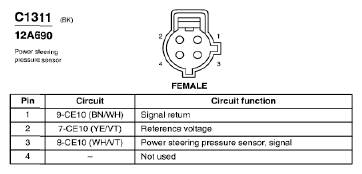

Fig 1: Power Steering Pressure Sensor Connector End View (C1311)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
