Radio Connector

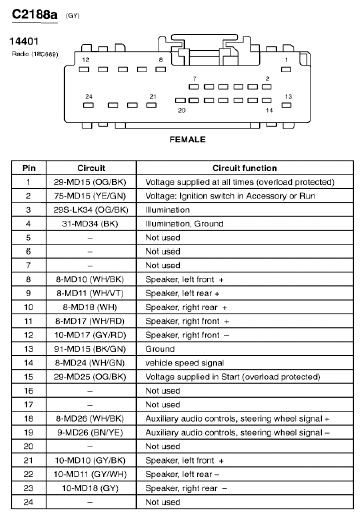

Fig 1: Radio Connector End View (C2188a)
G07850538Courtesy of FORD MOTOR CO.

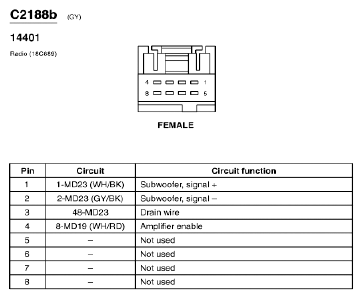

Fig 2: Radio Connector End View (C2188b)
G07850539Courtesy of FORD MOTOR CO.
