Seat Back Position Sensor, Driver Connector

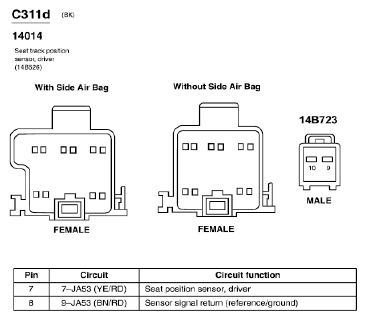

Fig 1: Seat Back Position Sensor, Driver Connector End View (C311d)
G07850409Courtesy of FORD MOTOR CO.
