Window Adjust Switch, Left Rear Connector

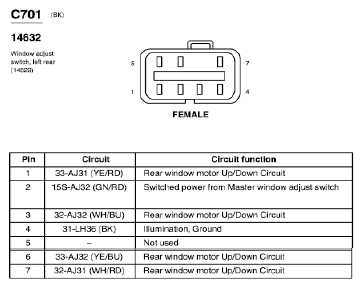

Fig 1: Window Adjust Switch, Left Rear Connector End View (C701)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
