Wiper/Washer Switch Connector

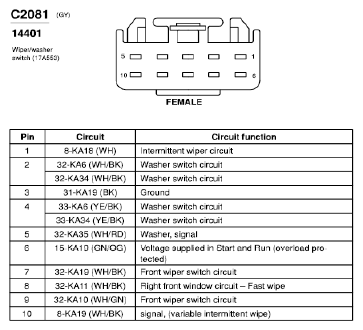

Fig 1: Wiper/Washer Switch Connector End View (C2081)
G07850534Courtesy of FORD MOTOR CO.

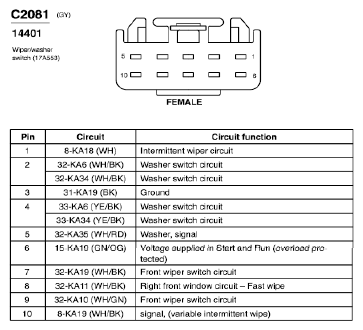

Fig 2: Wiper/Washer Switch Connector End View (C2081)
G07850535Courtesy of FORD MOTOR CO.
