Climate Control Assembly Connectors

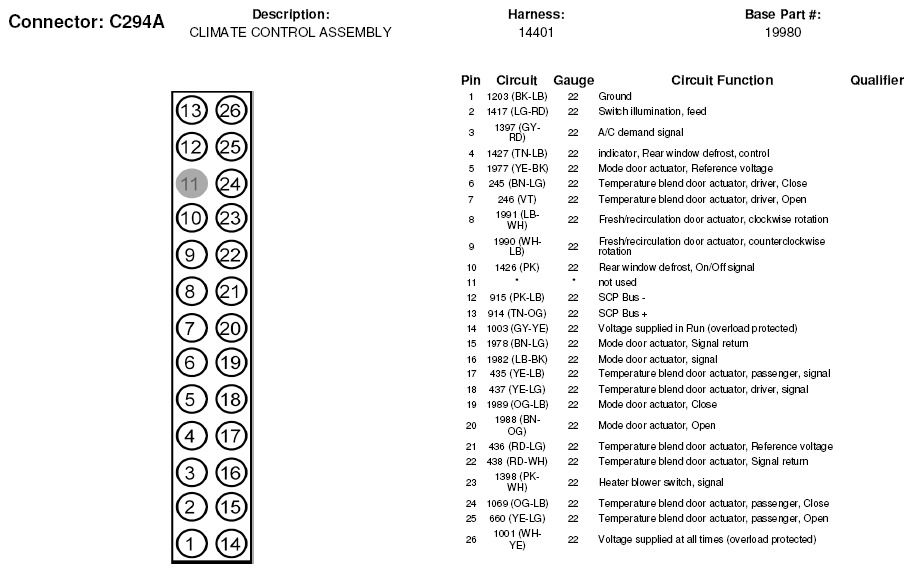

Fig 1: Climate Control Assembly Connector End View (C294A)
Courtesy of FORD MOTOR CO.

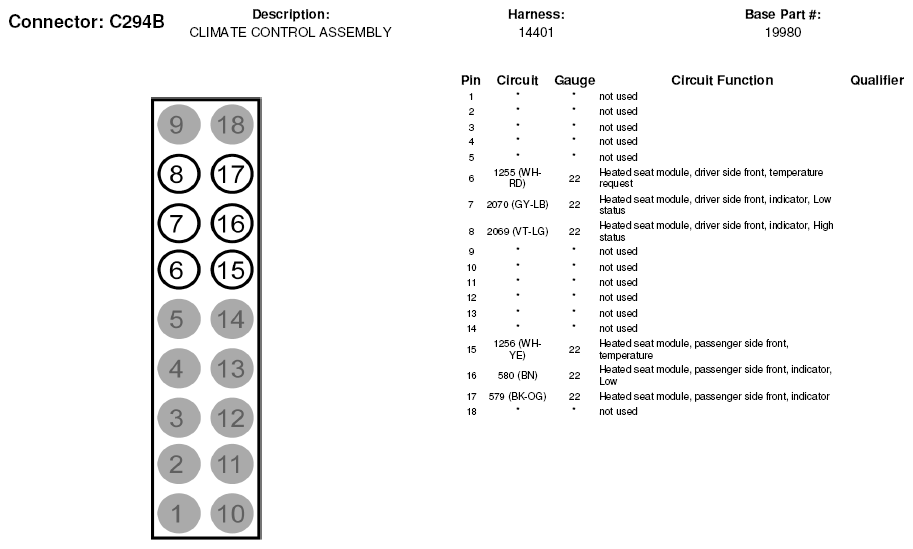

Fig 2: Climate Control Assembly Connector End View (C294B)
Courtesy of FORD MOTOR CO.

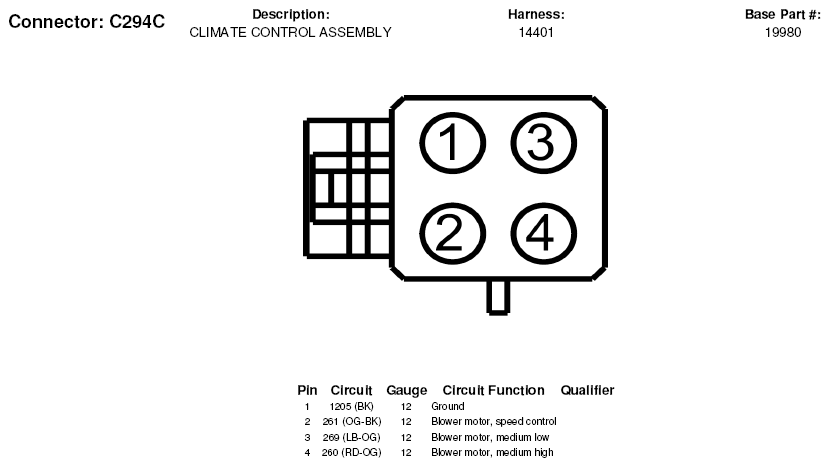

Fig 3: Climate Control Assembly Connector End View (C294C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
