Interior Lamp/ Map Lamp Assembly Connector

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C931A)
G05181629Courtesy of FORD MOTOR CO.

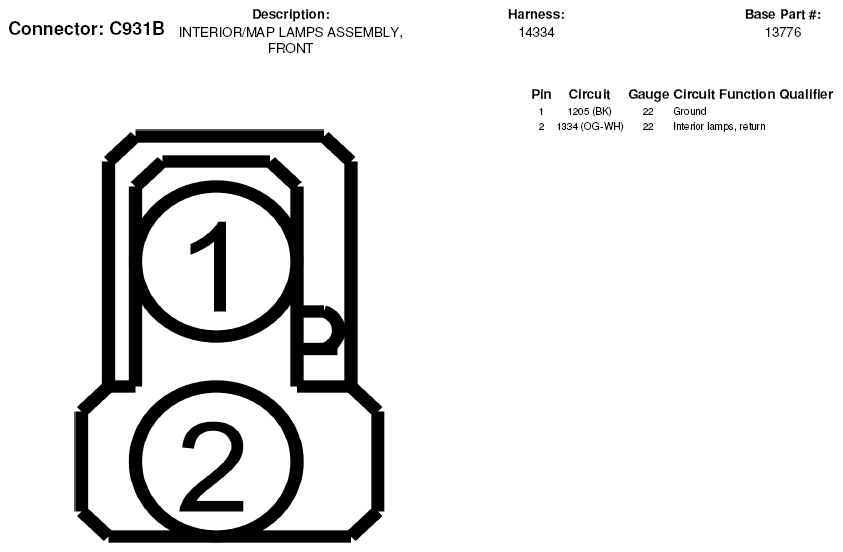

Fig 2: Interior Lamp/ Map Lamp Assembly Connector End View (C931B)
G05181630Courtesy of FORD MOTOR CO.

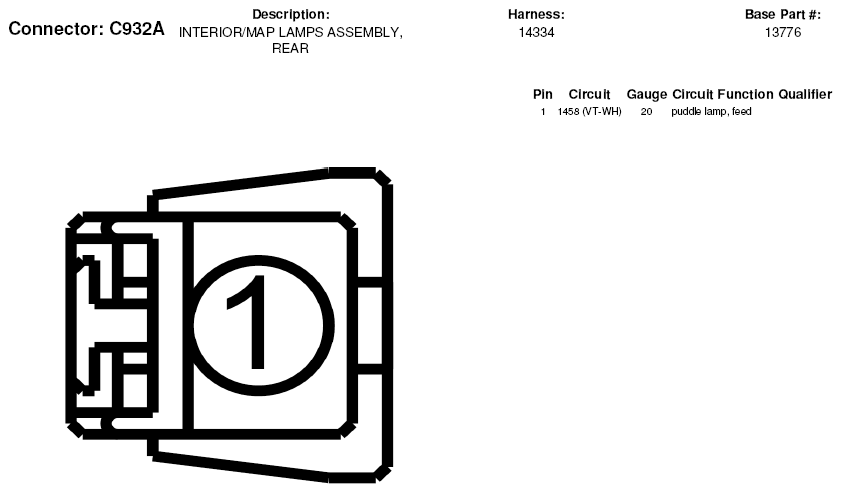

Fig 3: Interior Lamp/ Map Lamp Assembly Connector End View (C932A)
G05181631Courtesy of FORD MOTOR CO.
Fig 4: Interior Lamp/ Map Lamp Assembly Connector End View (C932B)
G05181632Courtesy of FORD MOTOR CO.
