Speed Control Deactivator Switch: Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A

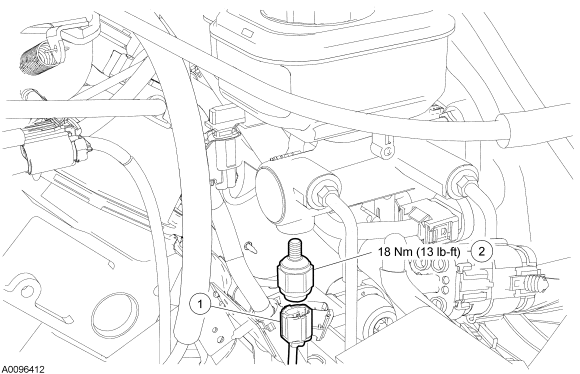

Fig 1: Exploded View Of Speed Control Deactivator Switch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A005	Speed control deactivator switch electrical connector
2	9F924	Speed control deactivator switch
