Driver Seat Module Connector

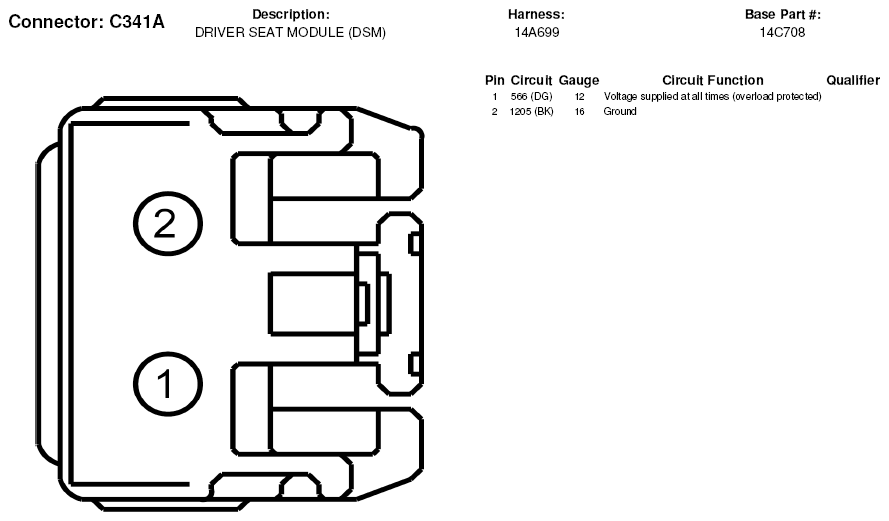

Fig 1: Driver Seat Module Connector End View (C341A)
G05181545Courtesy of FORD MOTOR CO.

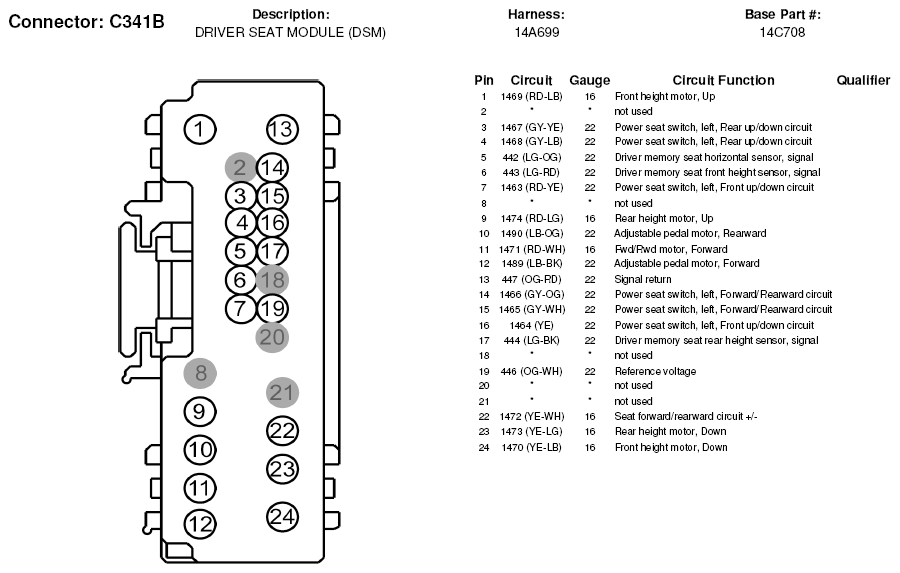

Fig 2: Driver Seat Module Connector End View (C341B)
G05181546Courtesy of FORD MOTOR CO.

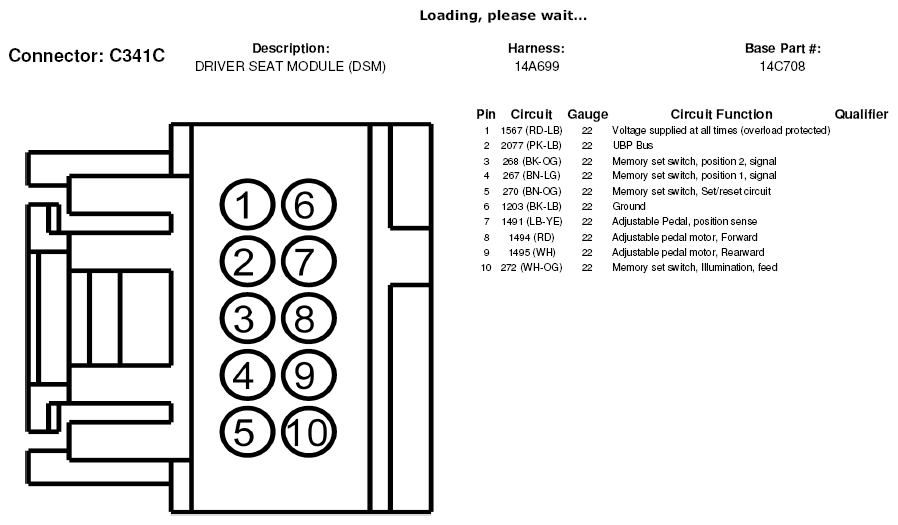

Fig 3: Driver Seat Module Connector End View (C341C)
G05181547Courtesy of FORD MOTOR CO.

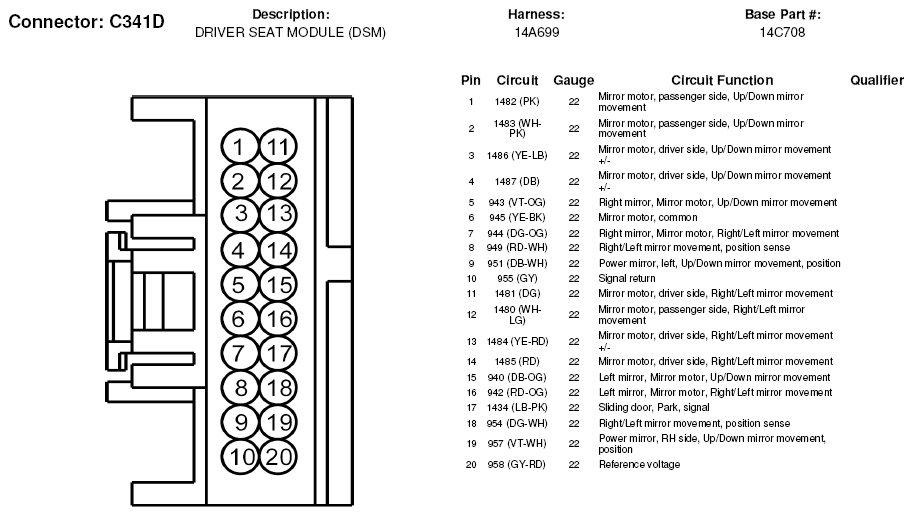

Fig 4: Driver Seat Module Connector End View (C341D)
G05181548Courtesy of FORD MOTOR CO.
