Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector

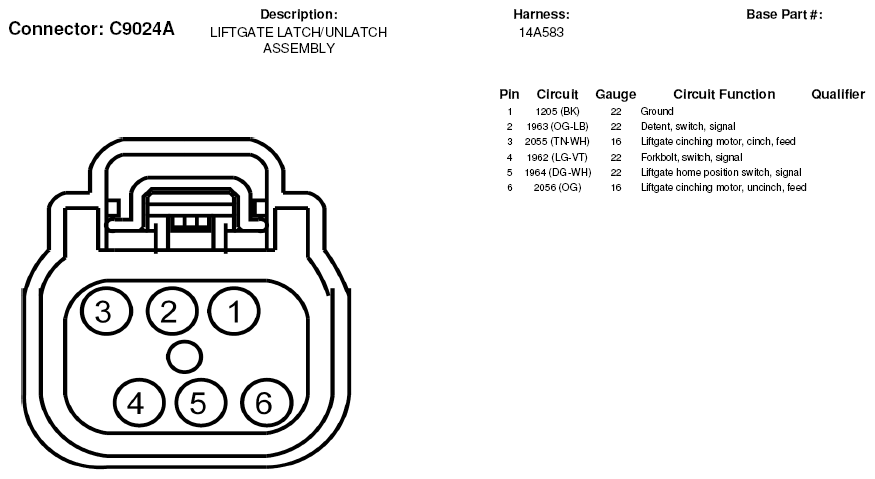

Fig 1: Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector End View (C9024A)
G05181755Courtesy of FORD MOTOR CO.

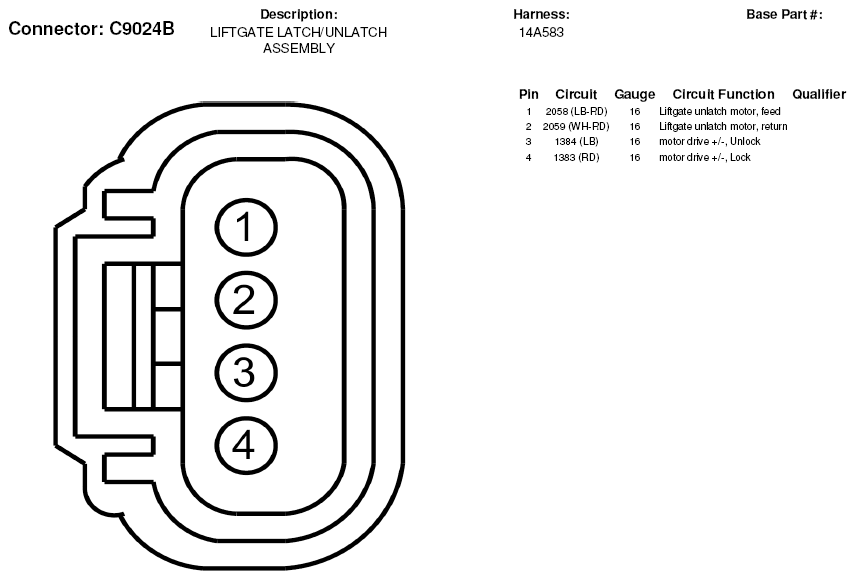

Fig 2: Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector End View (C9024B)
G05181756Courtesy of FORD MOTOR CO.
