Module Power Sliding Door Connector

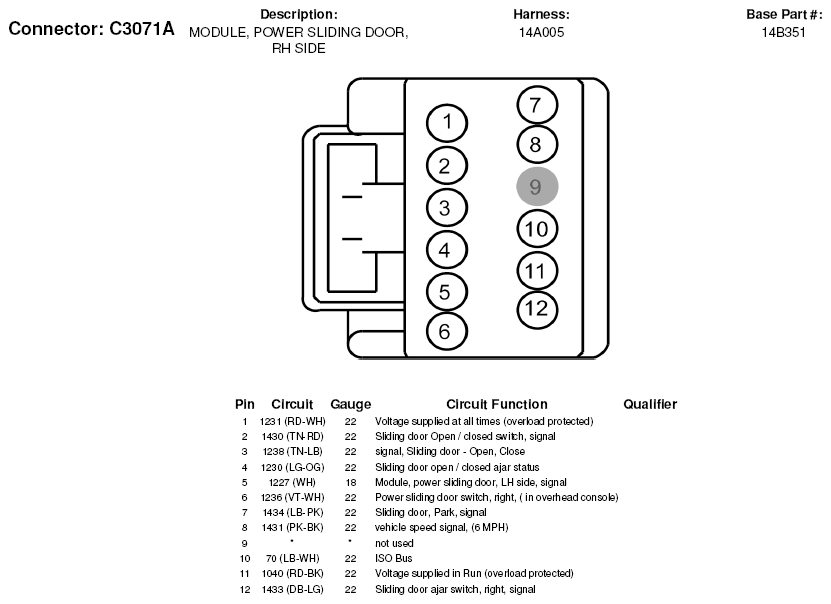

Fig 1: Module Power Sliding Door Connector End View (C3071A)
G05181723Courtesy of FORD MOTOR CO.

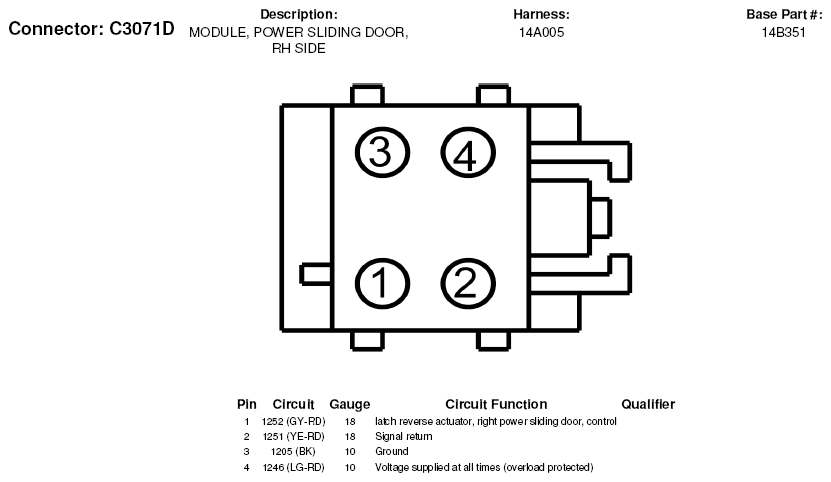

Fig 2: Module Power Sliding Door Connector End View (C3071D)
G05181724Courtesy of FORD MOTOR CO.

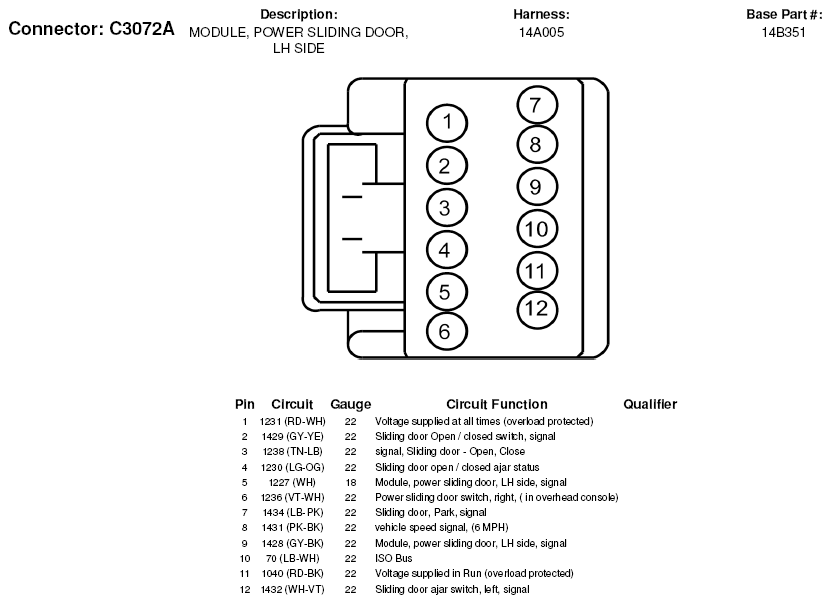

Fig 3: Module Power Sliding Door Connector End View (C3072A)
G05181725Courtesy of FORD MOTOR CO.

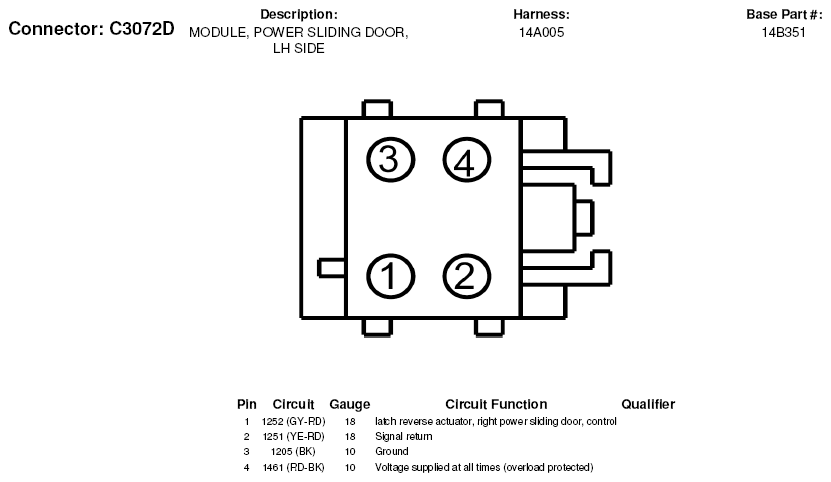

Fig 4: Module Power Sliding Door Connector End View (C3072D)
G05181726Courtesy of FORD MOTOR CO.
