Parking Aid Module Connector

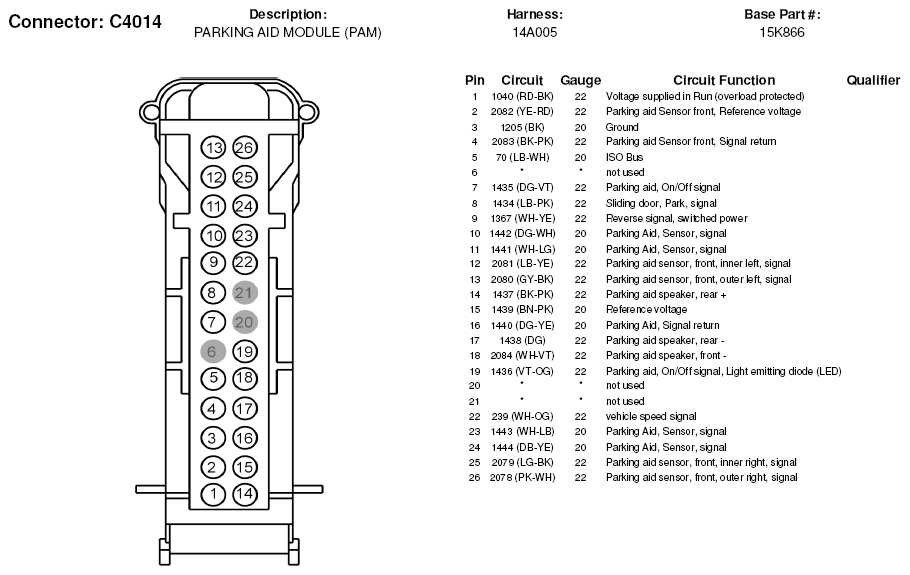

Fig 1: Parking Aid Module Connector End View (C4014)
G05181741Courtesy of FORD MOTOR CO.
Fig 2: Parking Aid Module Connector End View (C4226)
G05181749Courtesy of FORD MOTOR CO.
