Liftgate Obstacle Detection Strip Connector

Fig 1: Liftgate Obstacle Detection Strip Connector End View (C4172)
G05181744Courtesy of FORD MOTOR CO.

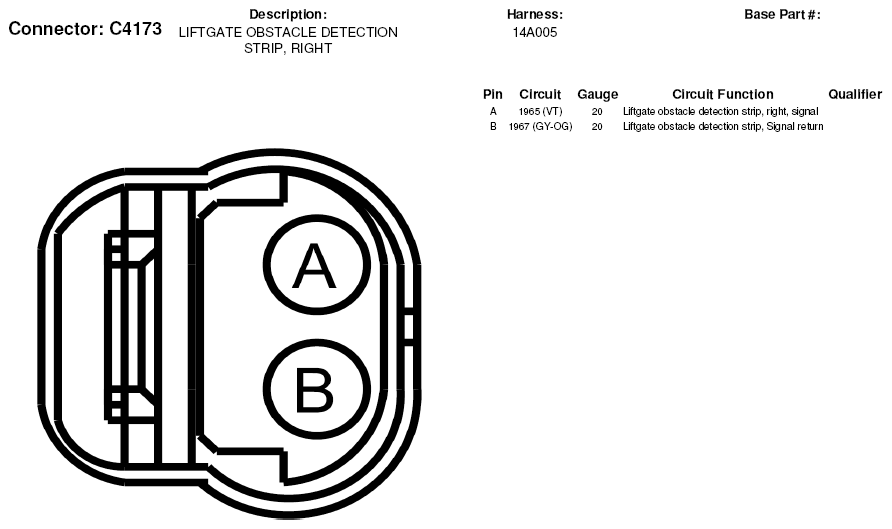

Fig 2: Liftgate Obstacle Detection Strip Connector End View (C4173)
G05181745Courtesy of FORD MOTOR CO.
