Multifunction Switch Connectors

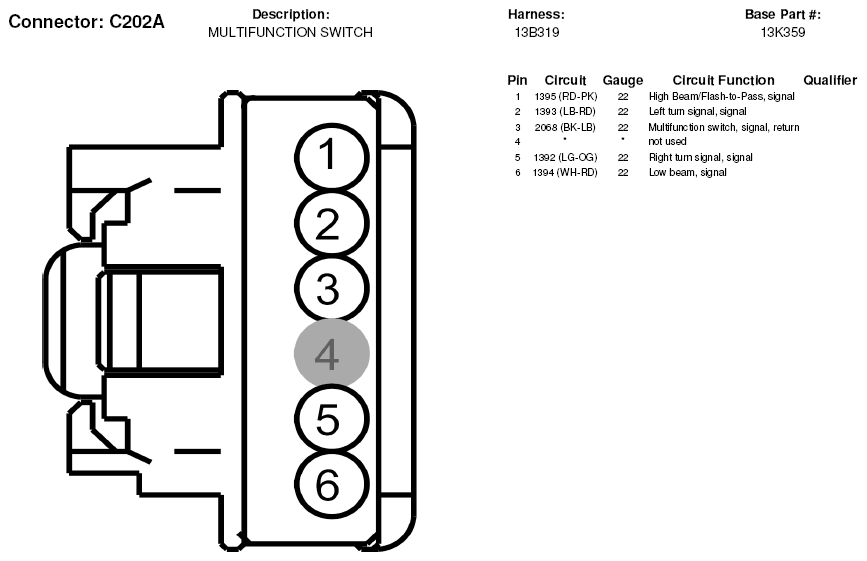

Fig 1: Multifunction Switch Connector End View (C202A)
G05181491Courtesy of FORD MOTOR CO.

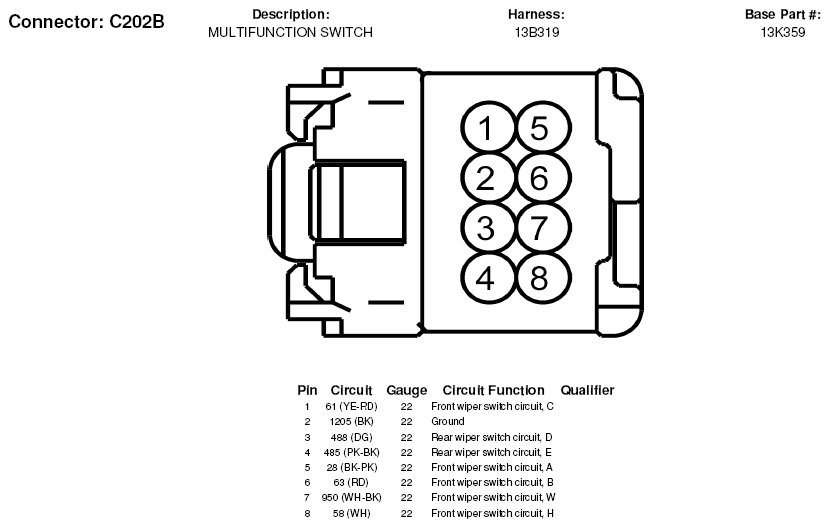

Fig 2: Multifunction Switch Connector End View (C202B)
G05181492Courtesy of FORD MOTOR CO.
