Smart Junction Box Connector

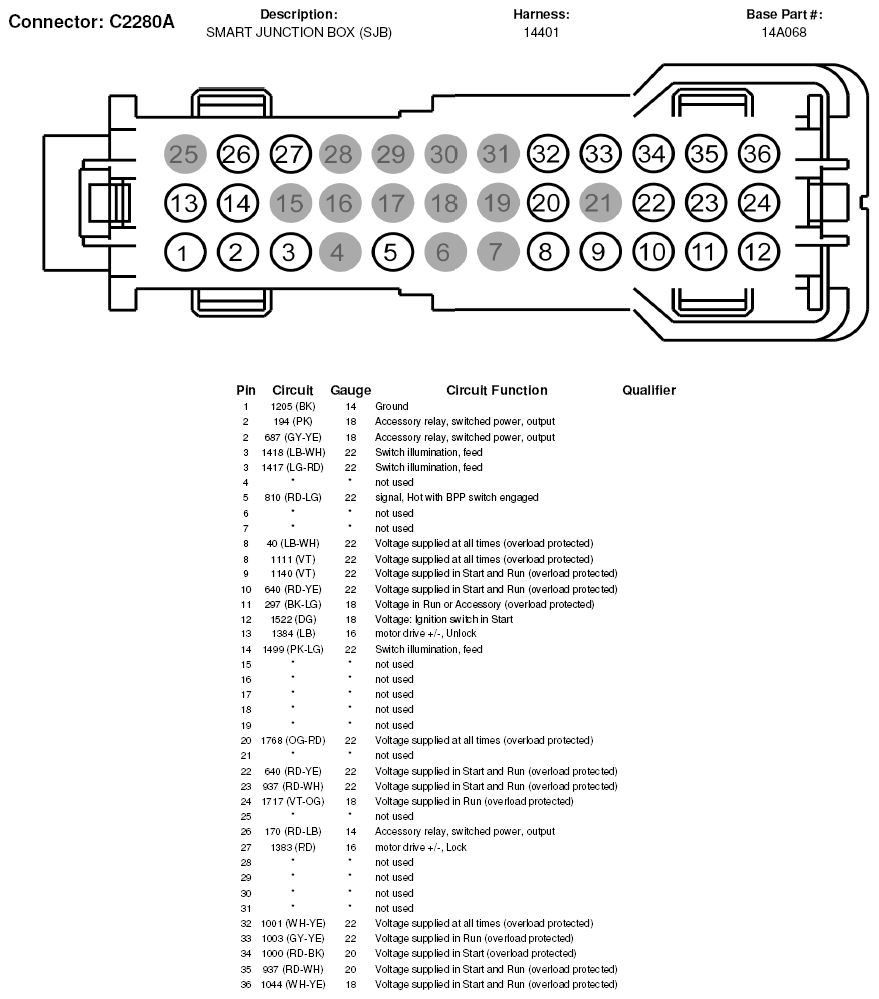

Fig 1: Smart Junction Box Connector End View (C2280A)
G05181689Courtesy of FORD MOTOR CO.

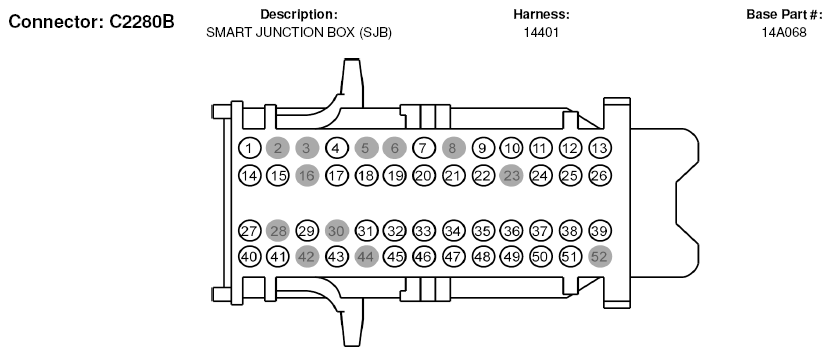

Fig 2: Smart Junction Box Connector End View (C2280B) (1 Of 2)
G05181690Courtesy of FORD MOTOR CO.

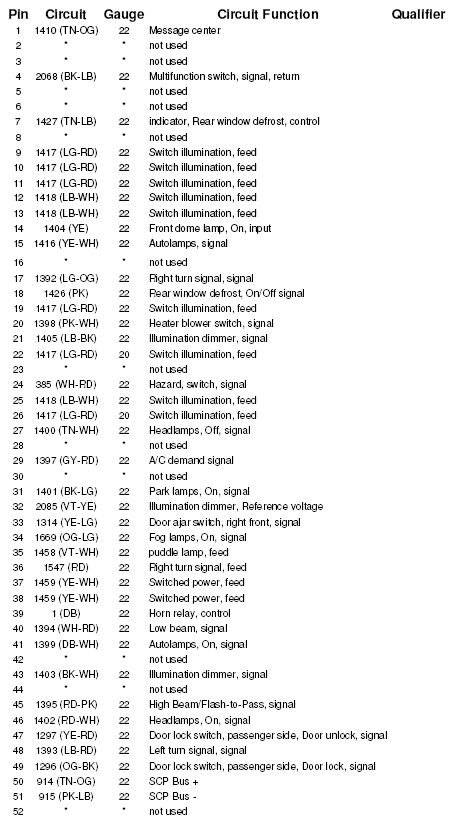

Fig 3: Smart Junction Box Connector End View (C2280B) (2 Of 2)
G05181691Courtesy of FORD MOTOR CO.

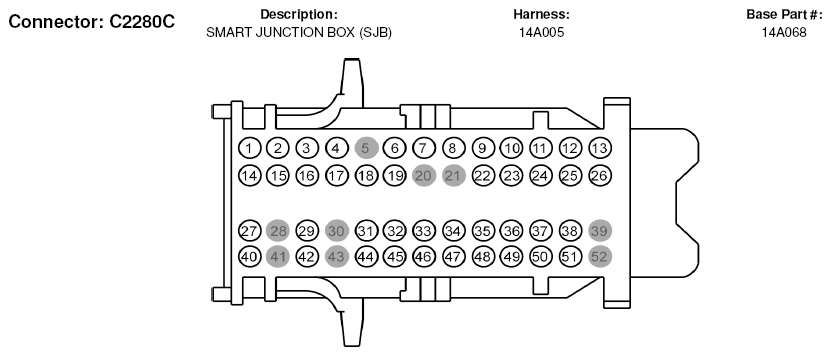

Fig 4: Smart Junction Box Connector End View (C2280C) (1 Of 2)
G05181692Courtesy of FORD MOTOR CO.

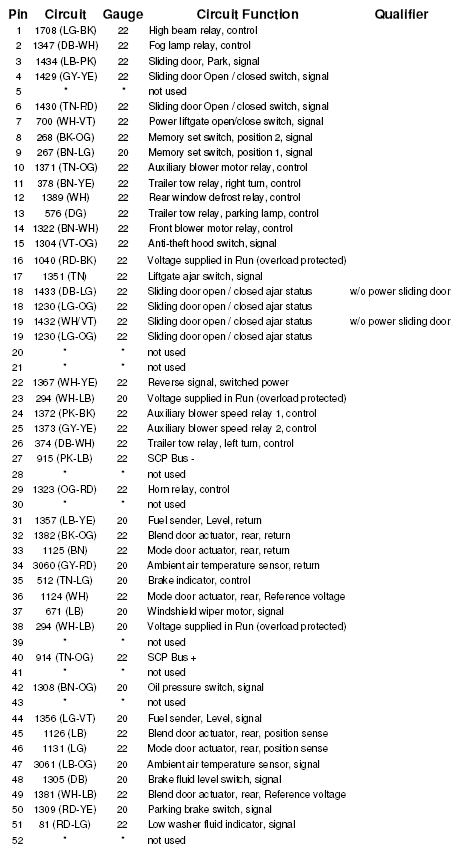

Fig 5: Smart Junction Box Connector End View (C2280C) (2 Of 2)
G05181693Courtesy of FORD MOTOR CO.

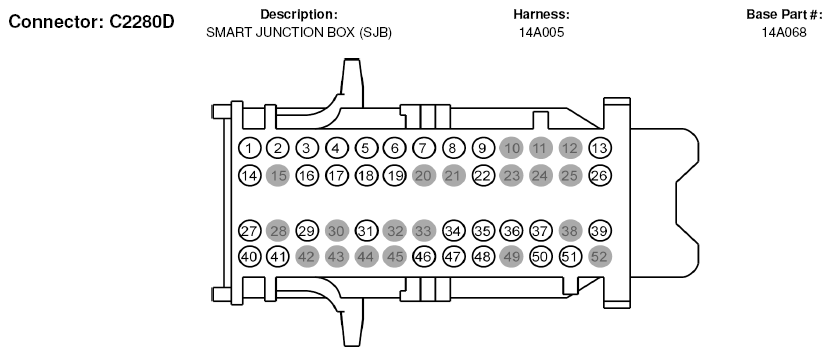

Fig 6: Smart Junction Box Connector End View (C2280D) (1 Of 2)
G05181694Courtesy of FORD MOTOR CO.

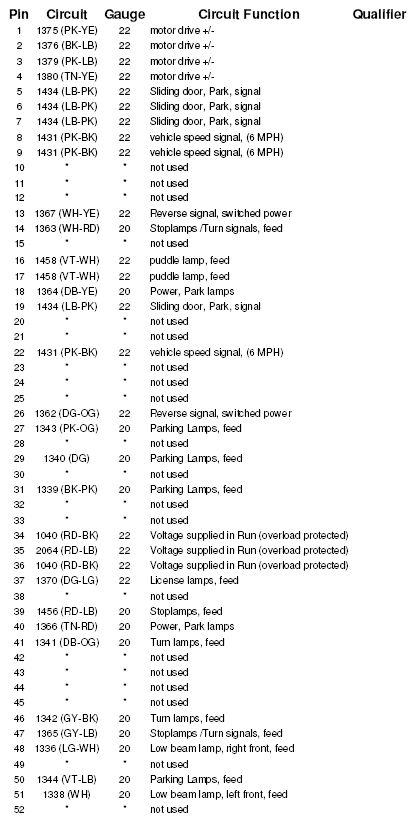

Fig 7: Smart Junction Box Connector End View (C2280D) (2 Of 2)
G05181695Courtesy of FORD MOTOR CO.

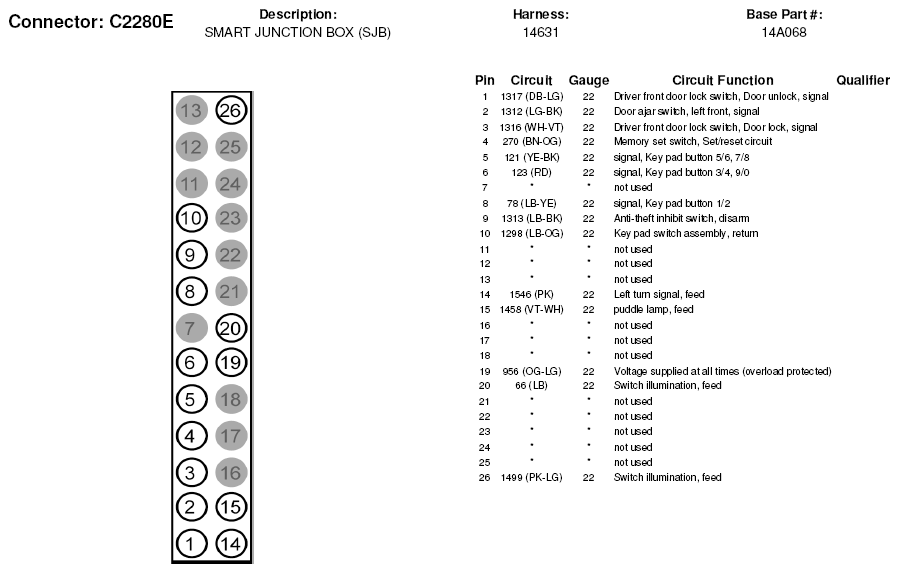

Fig 8: Smart Junction Box Connector End View (C2280E)
G05181696Courtesy of FORD MOTOR CO.

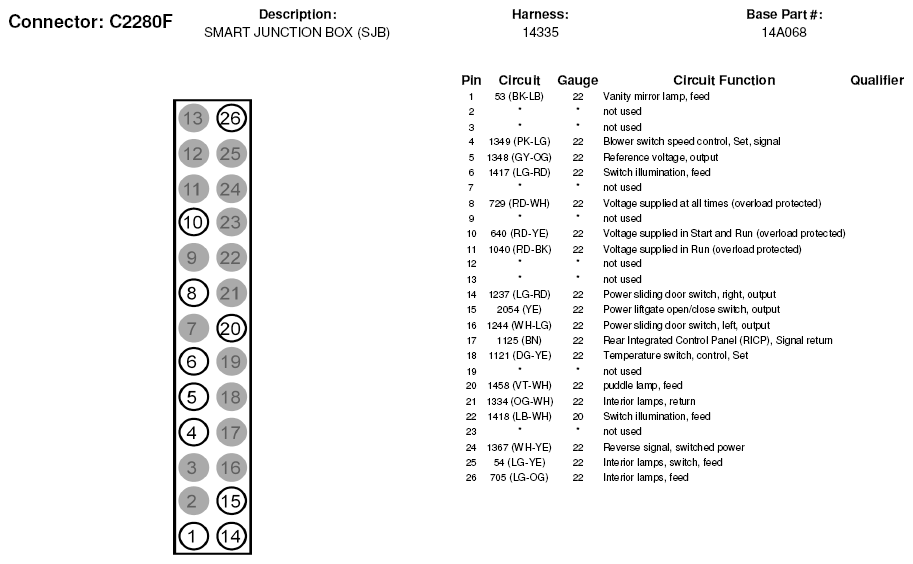

Fig 9: Smart Junction Box Connector End View (C2280F)
G05181697Courtesy of FORD MOTOR CO.

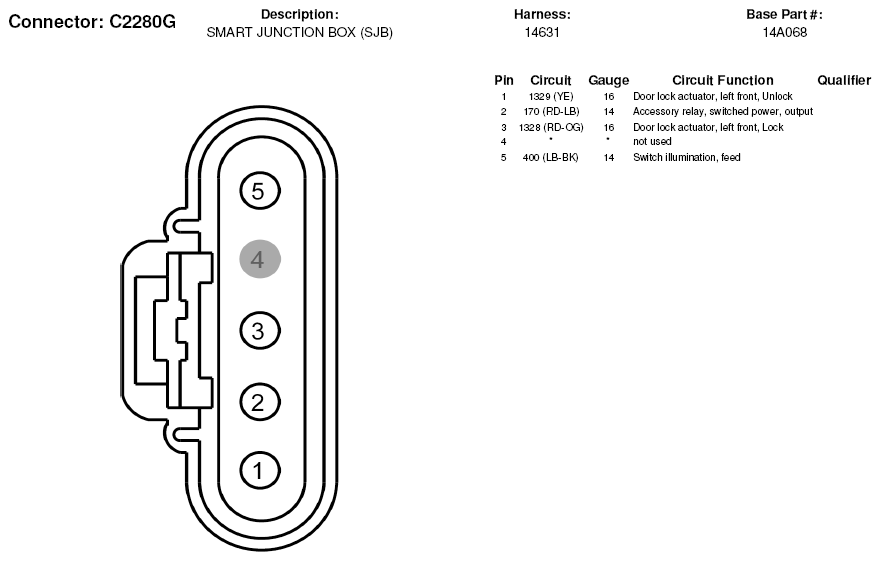

Fig 10: Smart Junction Box Connector End View (C2280G)
G05181698Courtesy of FORD MOTOR CO.

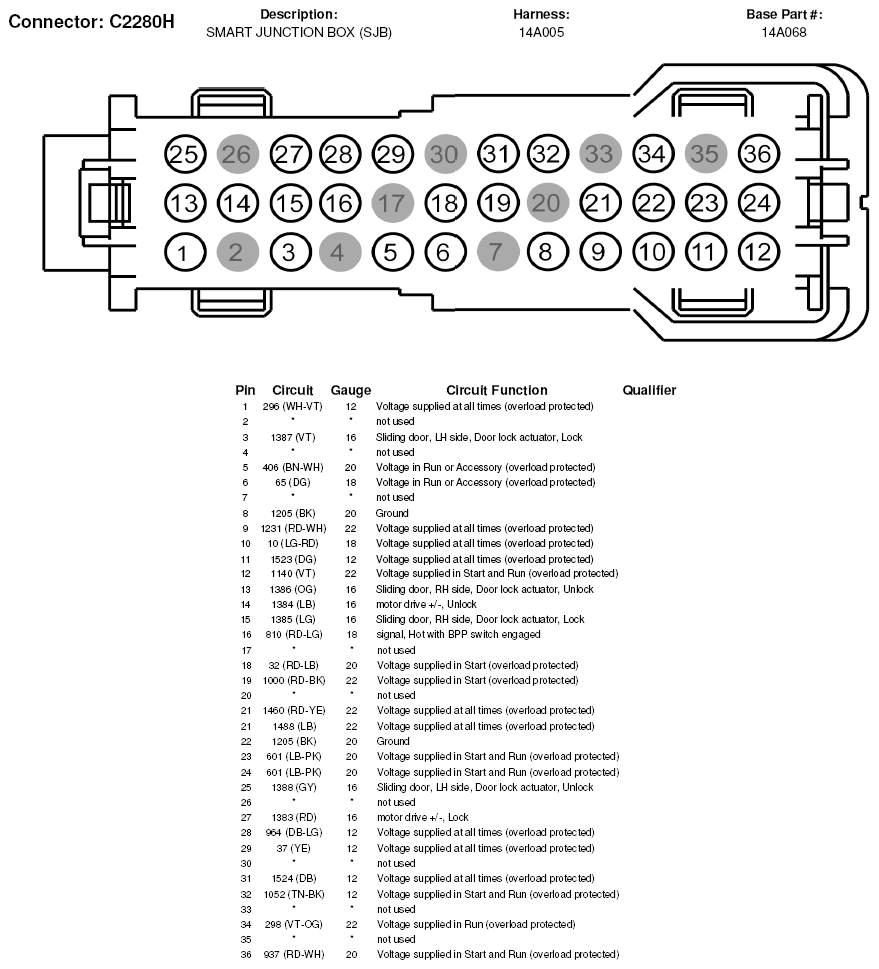

Fig 11: Smart Junction Box Connector End View (C2280H)
G05181699Courtesy of FORD MOTOR CO.

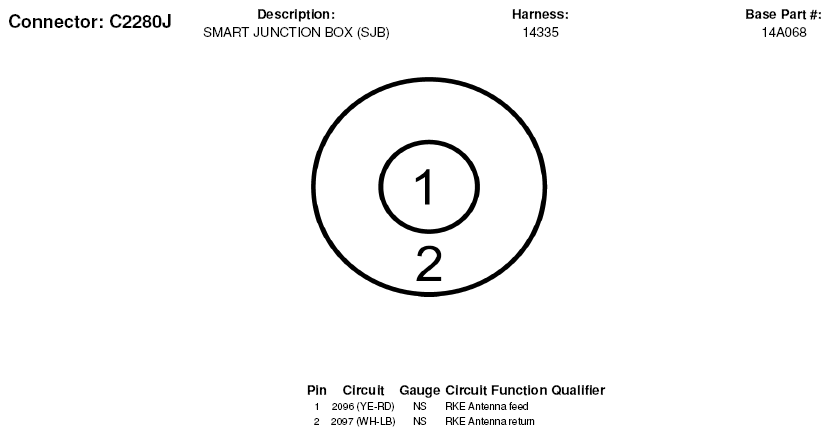

Fig 12: Smart Junction Box Connector End View (C2280J)
G05181700Courtesy of FORD MOTOR CO.
