Steering Gear: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Tie-Rod End Separator | 211-105 (T85M-3395-A) | |
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

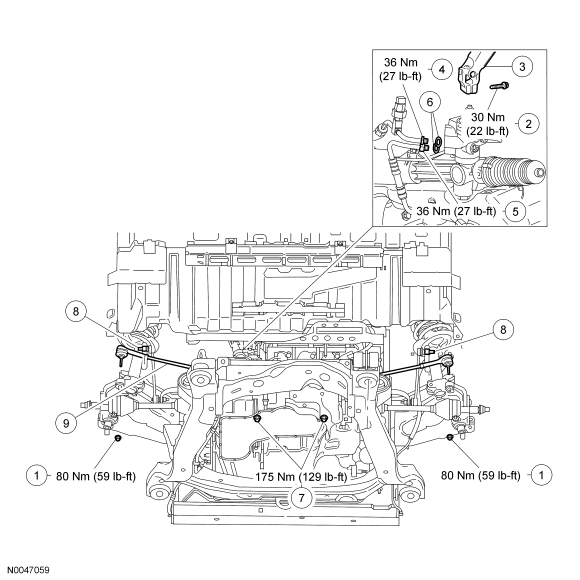

| Item | Part Number | Description |
|---|---|---|
| 1 | W705606 | Tie-rod end nuts (2 required) |
| 2 | W808349 | Intermediate shaft-to-steering gear bolt |
| 3 | 3C662 | Intermediate shaft |
| 4 | - | Power steering pressure line fitting (part of 3A719) |
| 5 | - | Power steering return line fitting (part of 3A713) |
| 6 | 3E764/3E719 | Teflon® seals |
| 7 | W520215 | Steering gear-to-crossmember nuts (2 required) |
| 8 | N807144 | Stabilizer bar link nuts (2 required) |
| 9 | 3504 | Steering gear |
