Front Blower Motor Connector

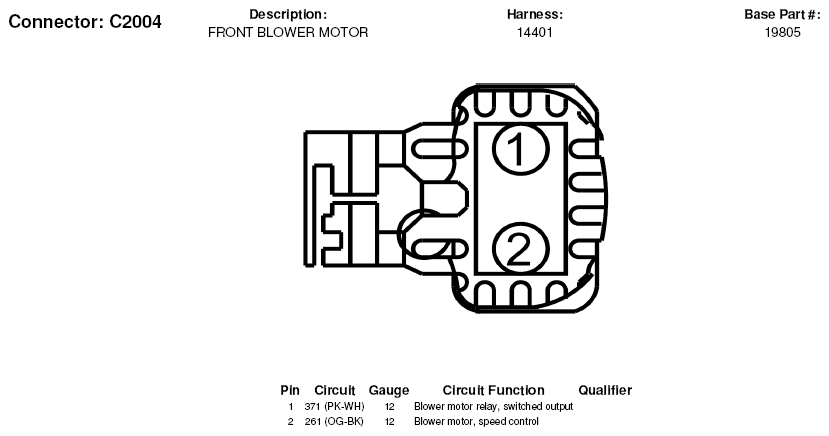

Fig 1: Front Blower Motor Connector End View (C2004)
G05181673Courtesy of FORD MOTOR CO.
