Exhaust Gas Recirculation (EGR) System Components - Exploded View

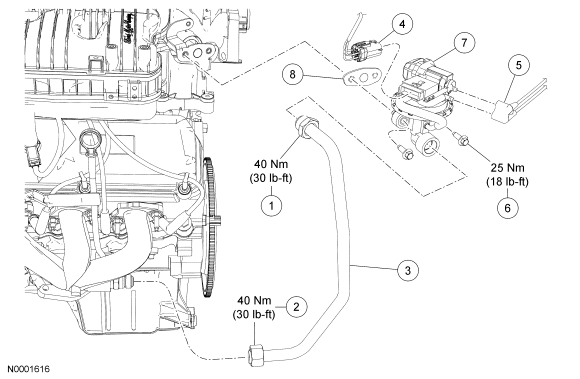

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Exhaust gas recirculation (EGR) system module-to-exhaust manifold tube upper nut (part of 9D477)
2	-	EGR system module-to-exhaust manifold tube lower nut (part of 9D477)
3	9D477	EGR system module-to-exhaust manifold tube
4	14A464	EGR system module electrical connector (part of 12B637)
5	9E498	EGR system module vacuum connector
6	W506024	EGR system module bolts (2 required)
7	9Y456	EGR system module
8	9D476	EGR system module gasket

1. For additional information, refer to the following procedures.
