Steering Gear: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Constant Velocity Joint Boot Clamp | 205-343 (T95T-3514-A) |
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

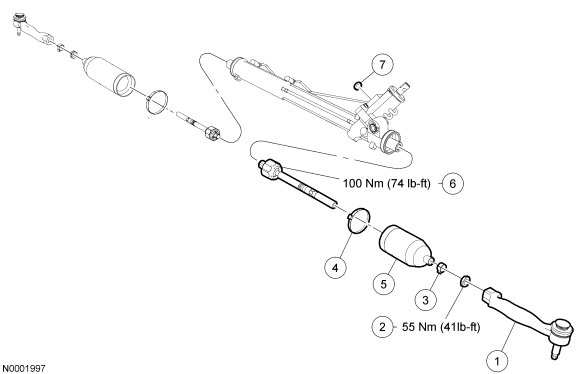

| Item | Part Number | Description |
|---|---|---|
| 1 | 3289 | Tie-rod end (2 required) |
| 2 | 19G045 | Tie-rod end jam nuts (2 required) |
| 3 | 3C650 | Outer bellows clamp (2 required) |
| 4 | 3K745 | Inner bellows clamp (2 required) |
| 5 | 3K661 | Steering gear bellows (2 required) |
| 6 | 3280 | Inner tie rod (2 required) |
| 7 | 3N603 | Check valve |
