Driver Seat Module (DSM): Notes

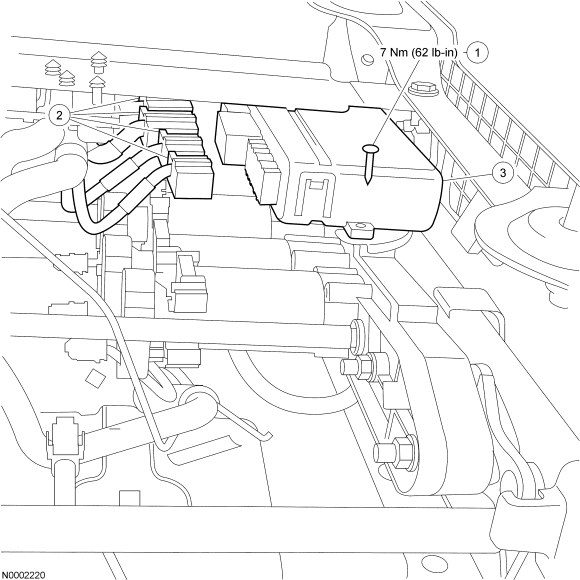

Fig 1: Exploded View Of Driver Seat Module DSM With Torque Specifications
GF0034005Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N90956 DSM screw
2 - DSM electrical connectors (part of 14A699)
3 14C708 DSM
