Child Safety Seat Tether Anchor - Second Row, Bucket Seat: Notes
NOTE:
RH seat shown, LH seat similar.

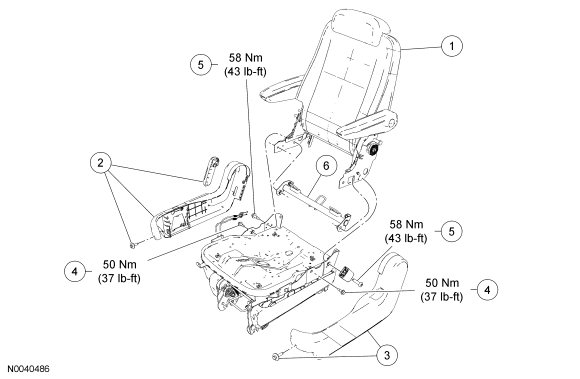

Fig 1: Exploded View Of Second Row Bucket Seat Child Safety Seat Tether Anchor With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bucket seat assembly |
| 2 | 61346 | Recliner handle, seat side shield and screws (2 required), RH |
| 3 | 61347 | Seat side shield and screws (2 required), LH |
| 4 | - | Seat backrest to seat track bolts (2 required) |
| 5 | - | Tether anchor/safety belt buckle bolts (2 required) |
| 6 | 49052 | Child safety seat tether anchor and LATCH assembly |
