Front Suspension - Exploded View
Front
Suspension
- Exploded View

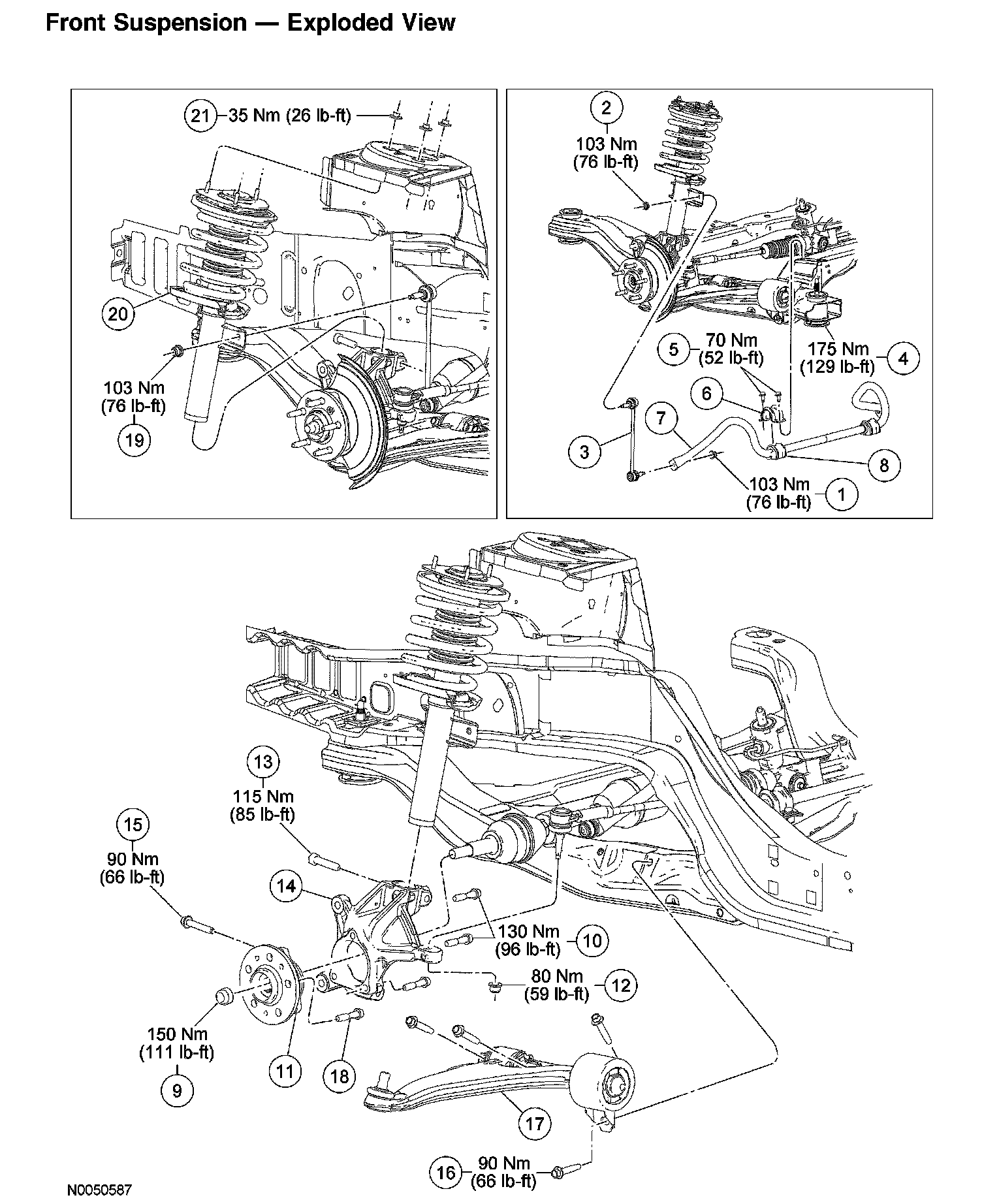

Front Suspension - Exploded View (Part 1):

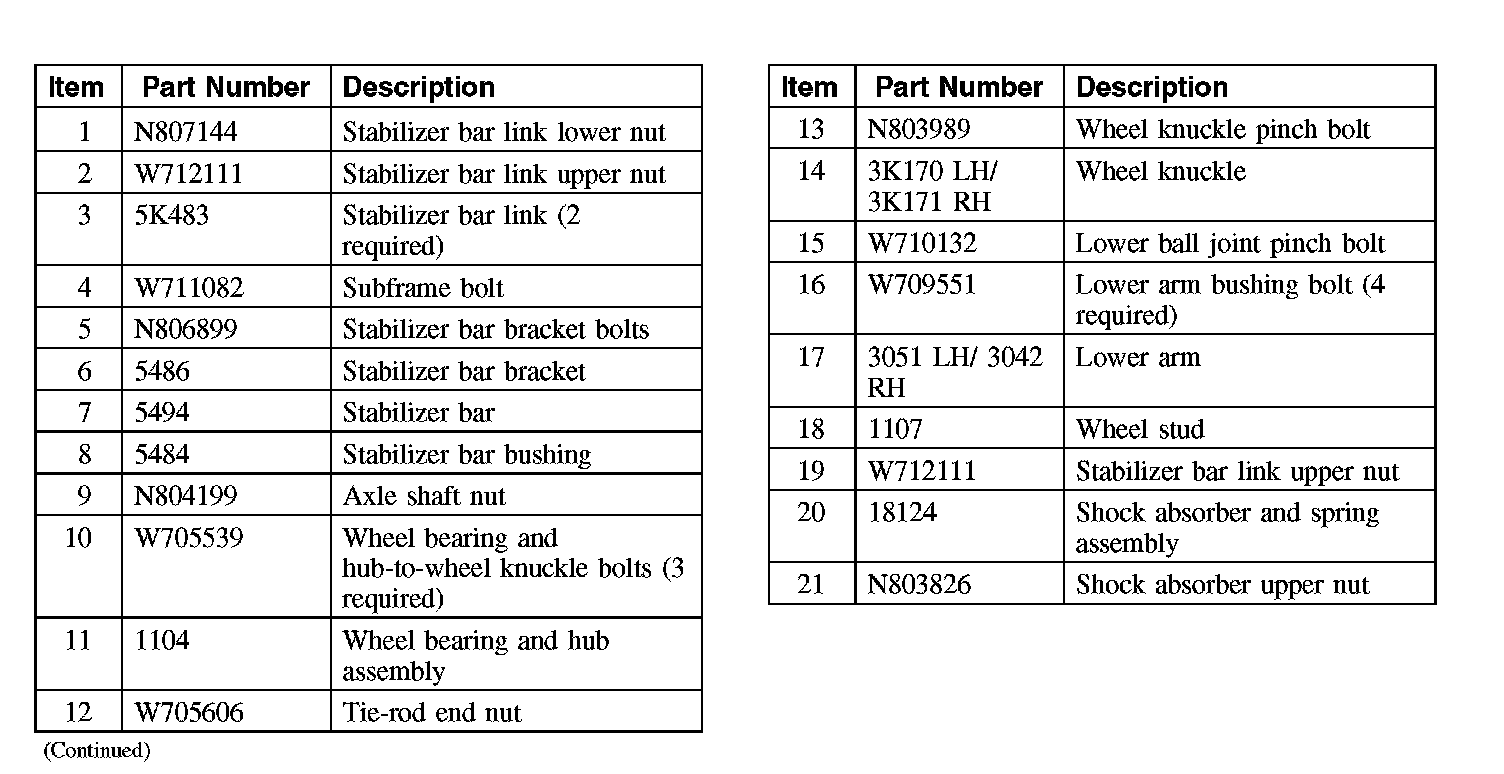

Front Suspension - Exploded View (Part 2):
