Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE (DTC) CHART

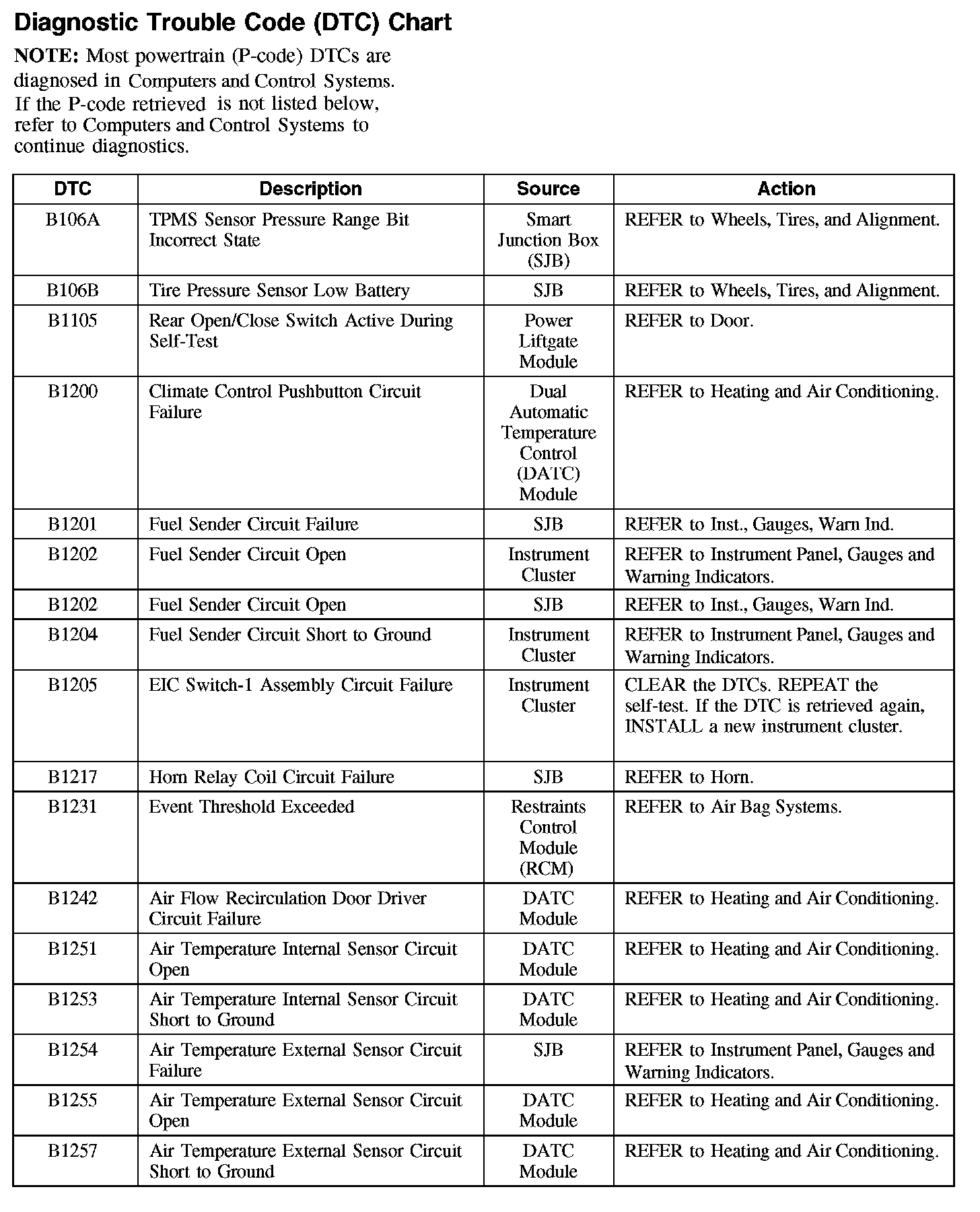

B106A-B1257:

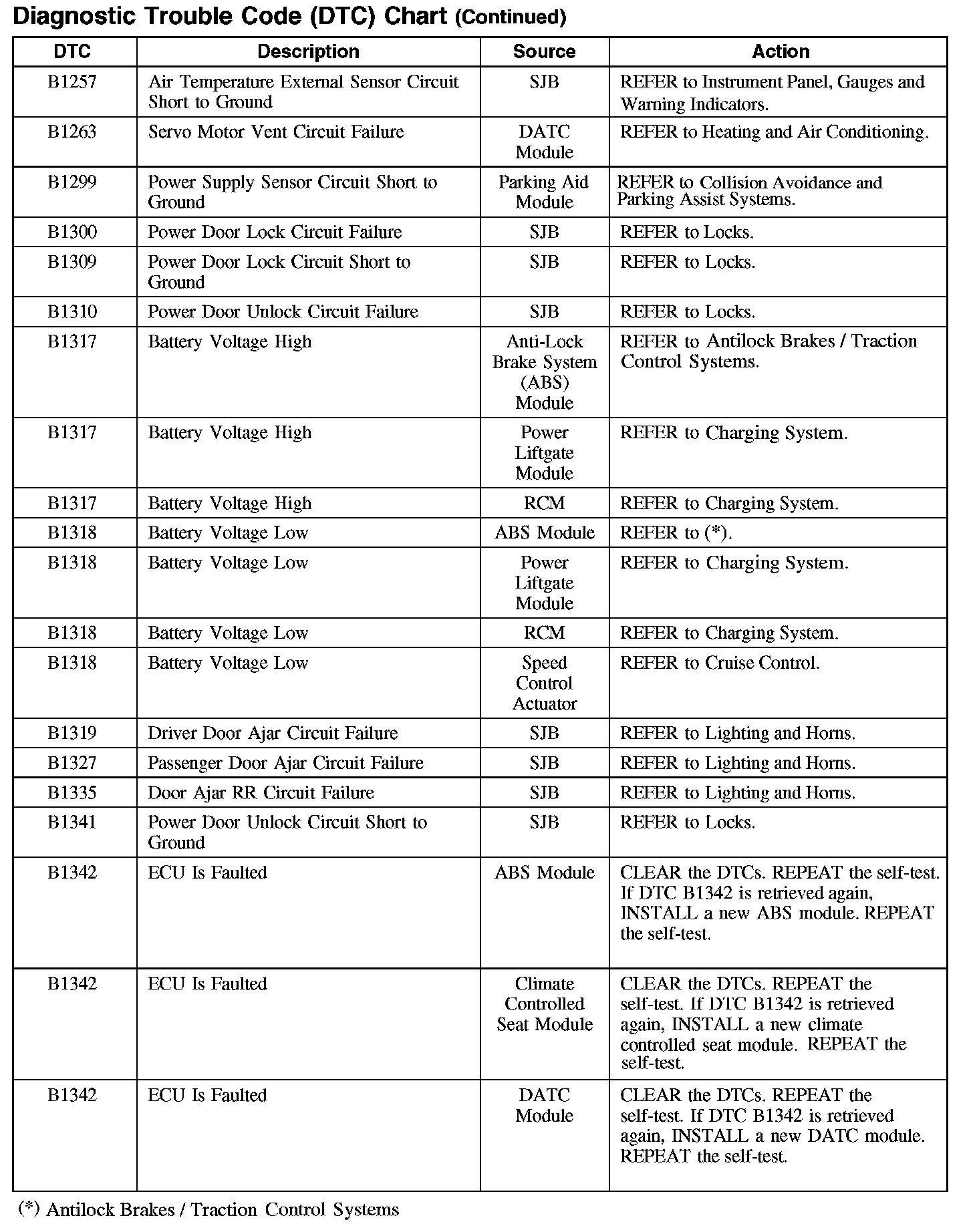

B1257-B1342:

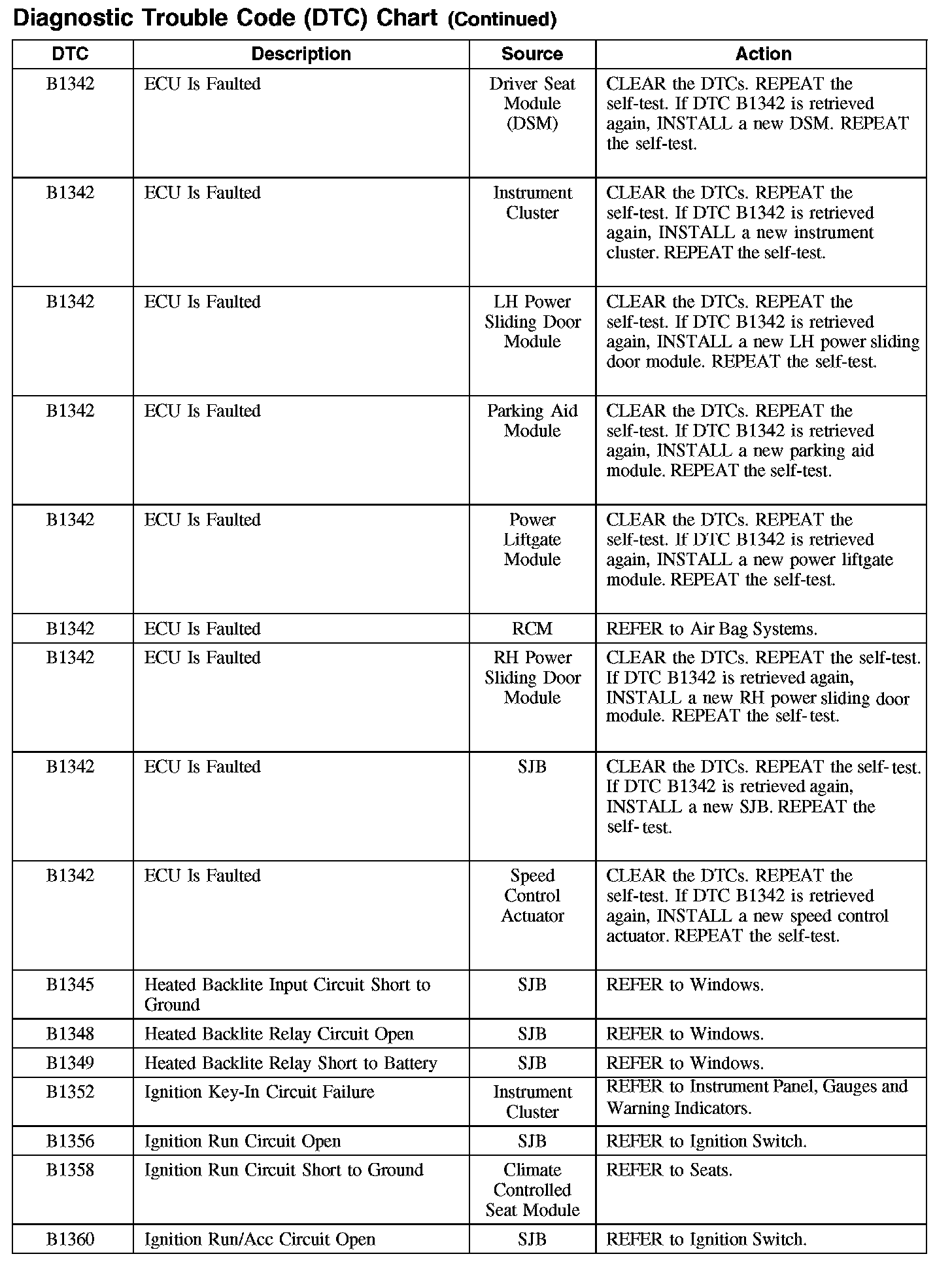

B1342-B1360:

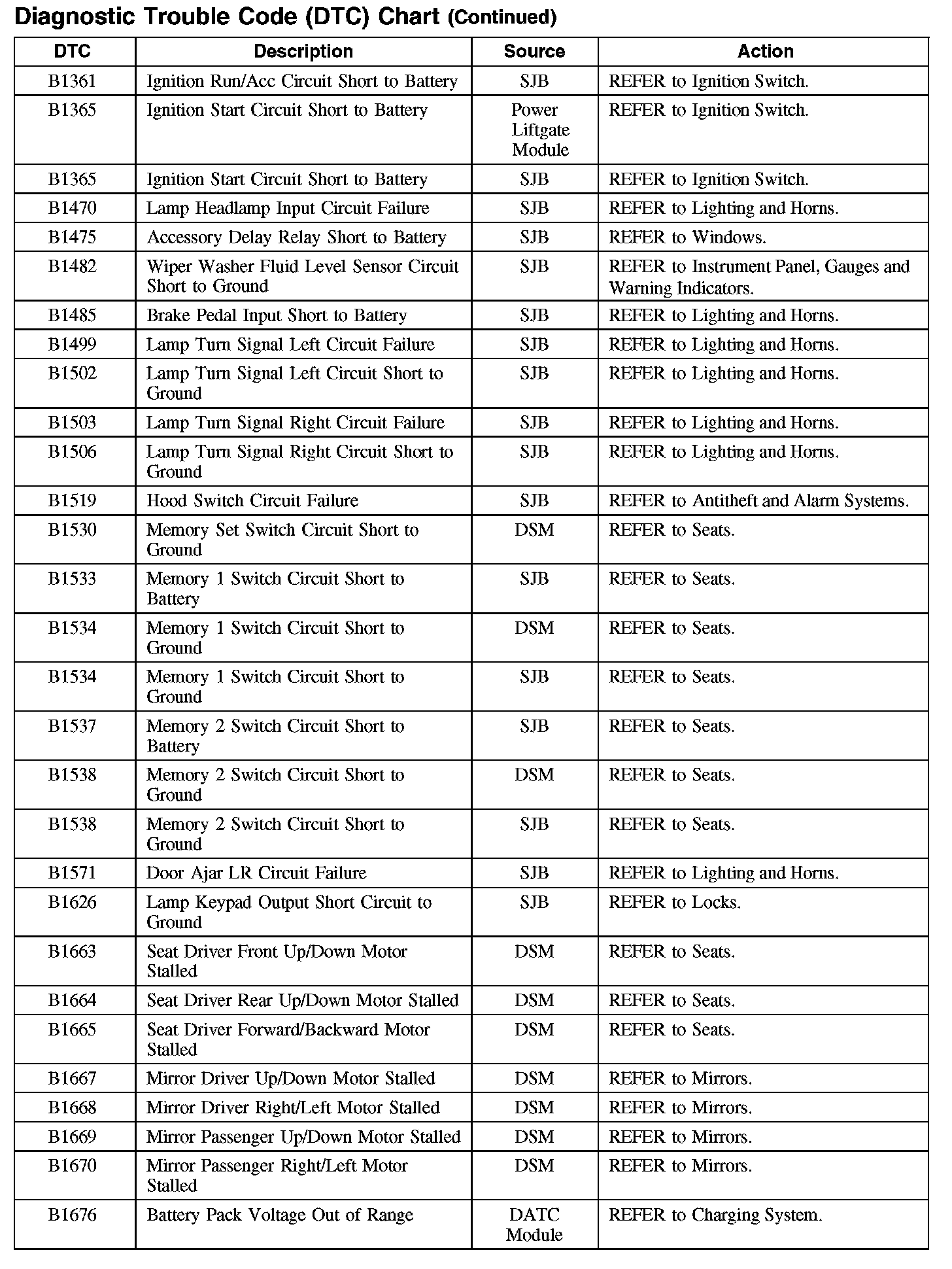

B1361-B1676:

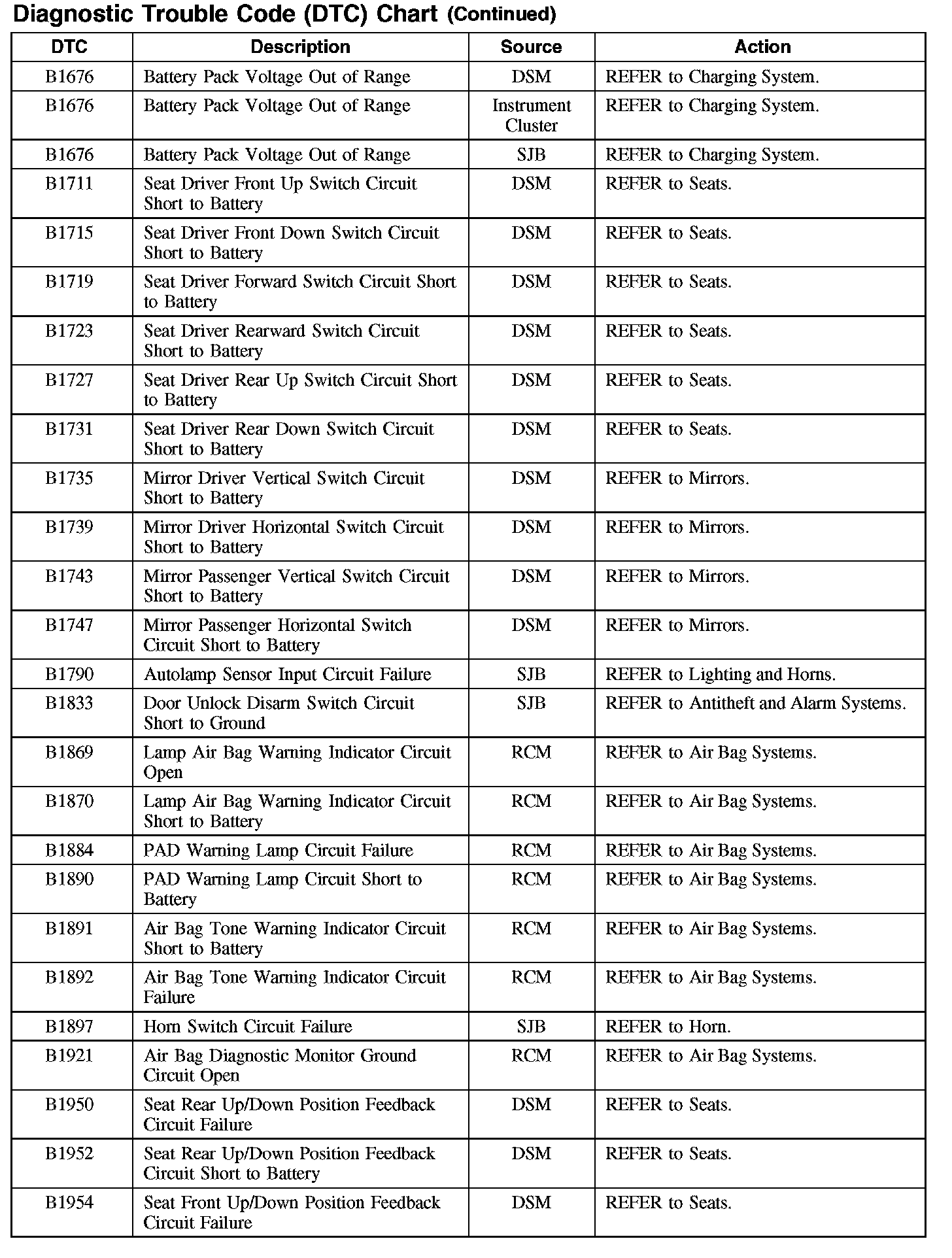

B1676-B1954:

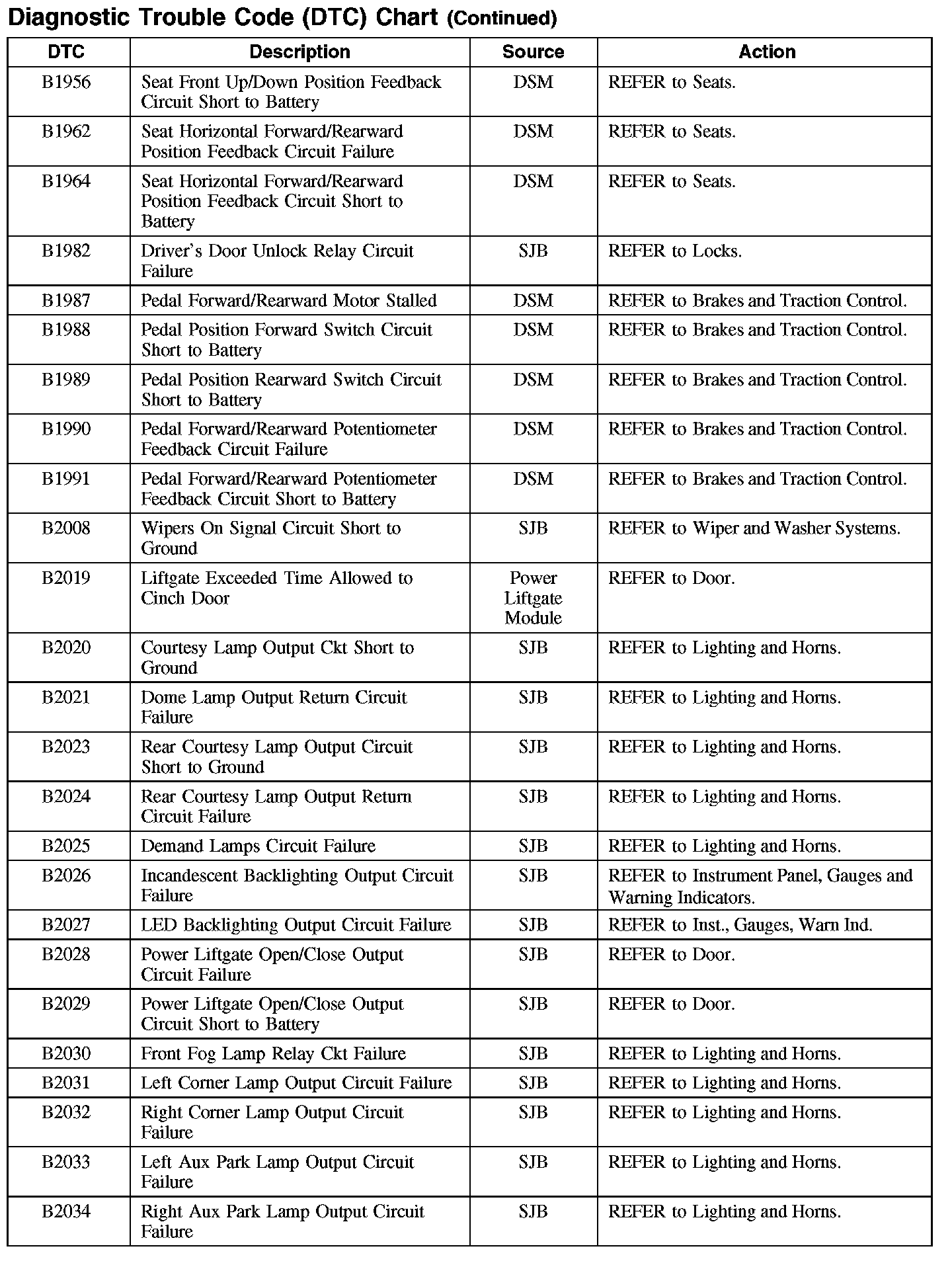

B1956-B2034:

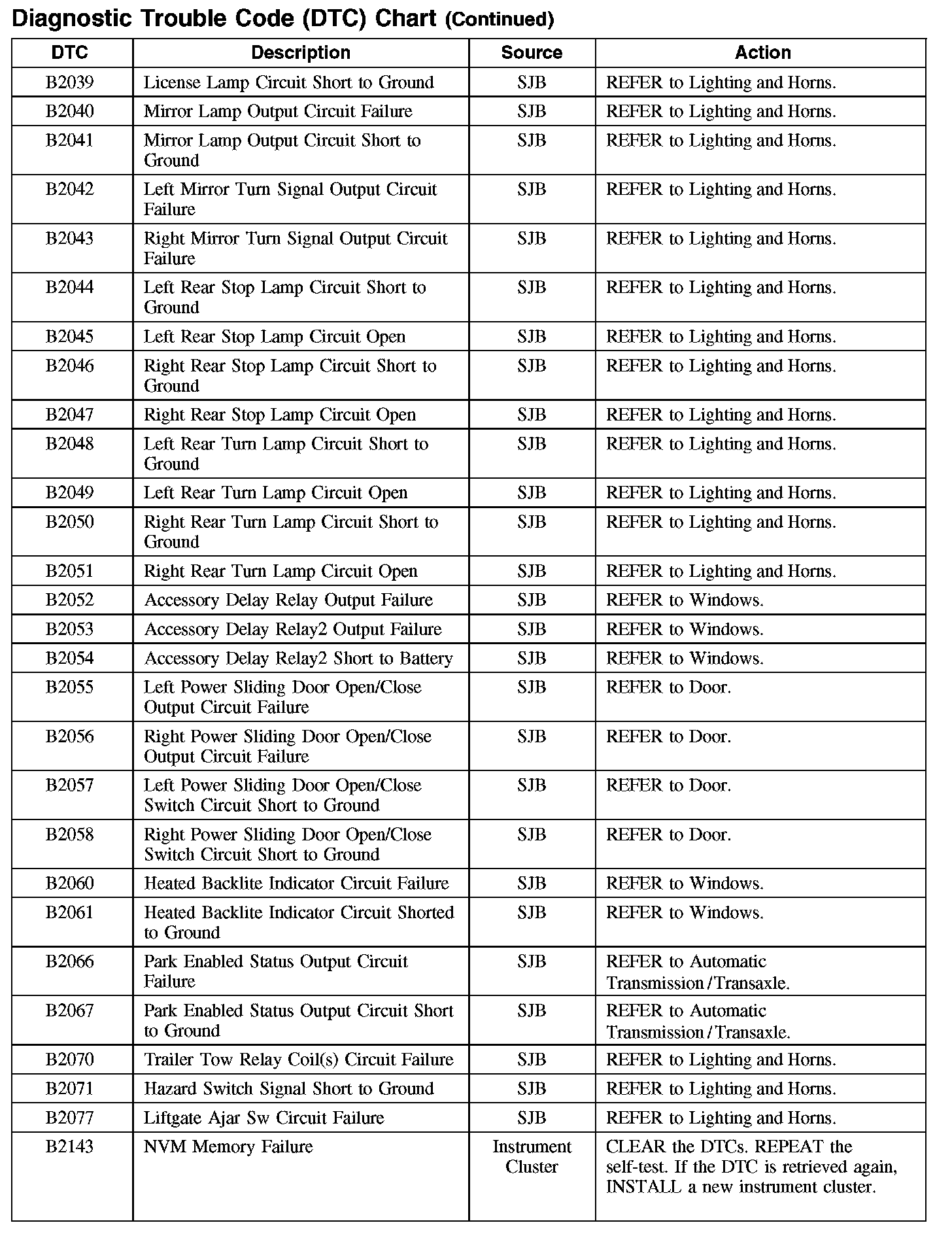

B2039-B2143:

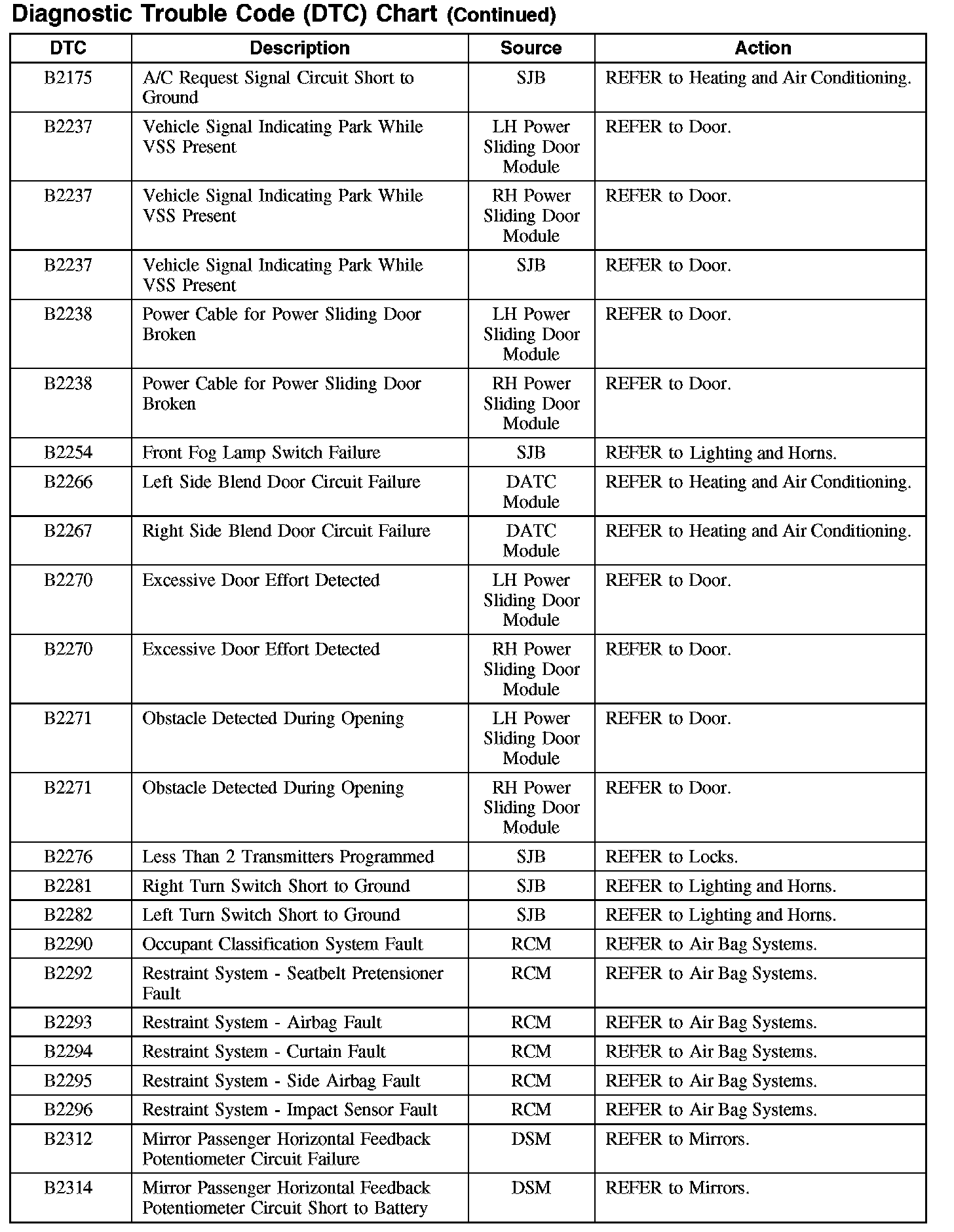

B2175-B2314:

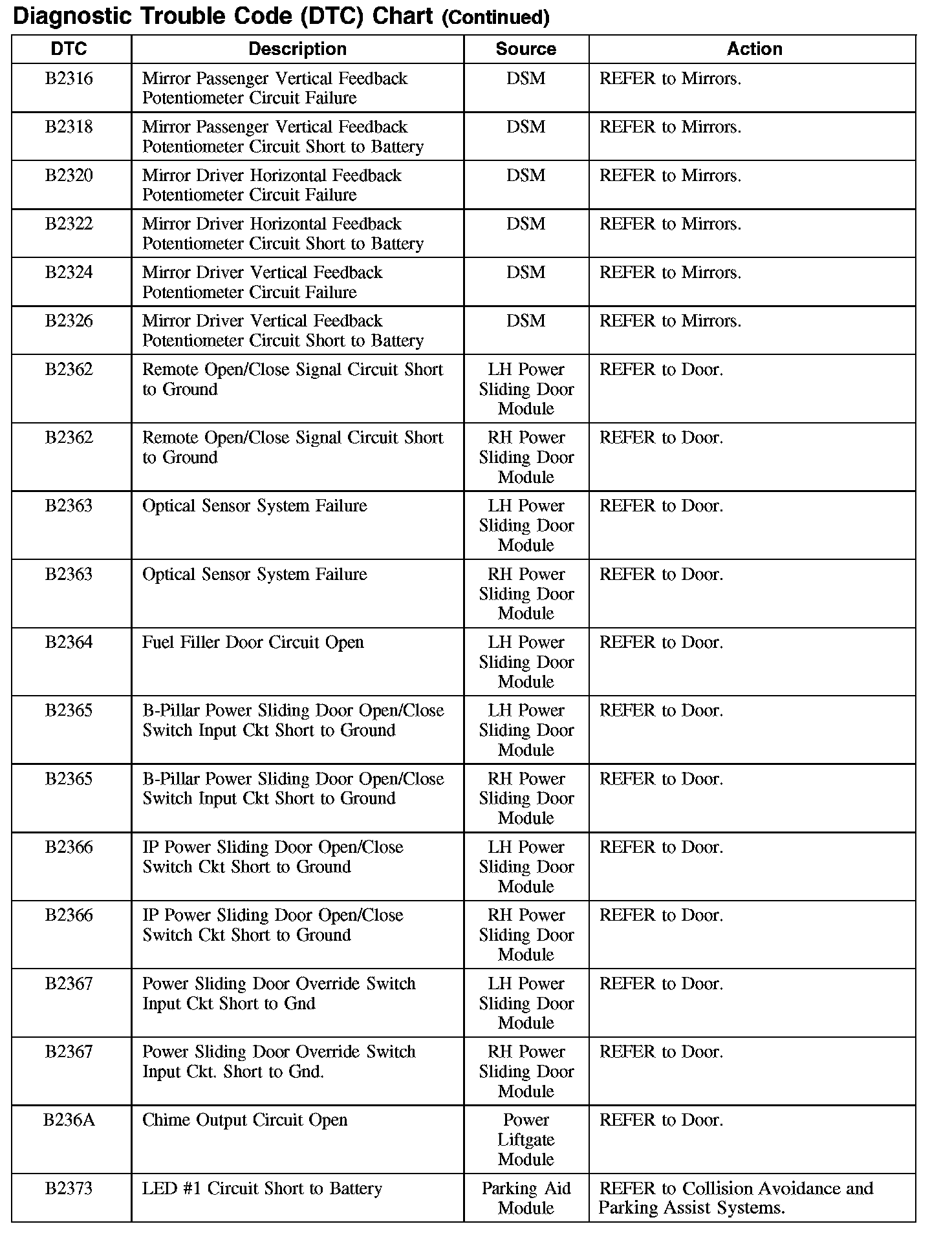

B2316-B2373:

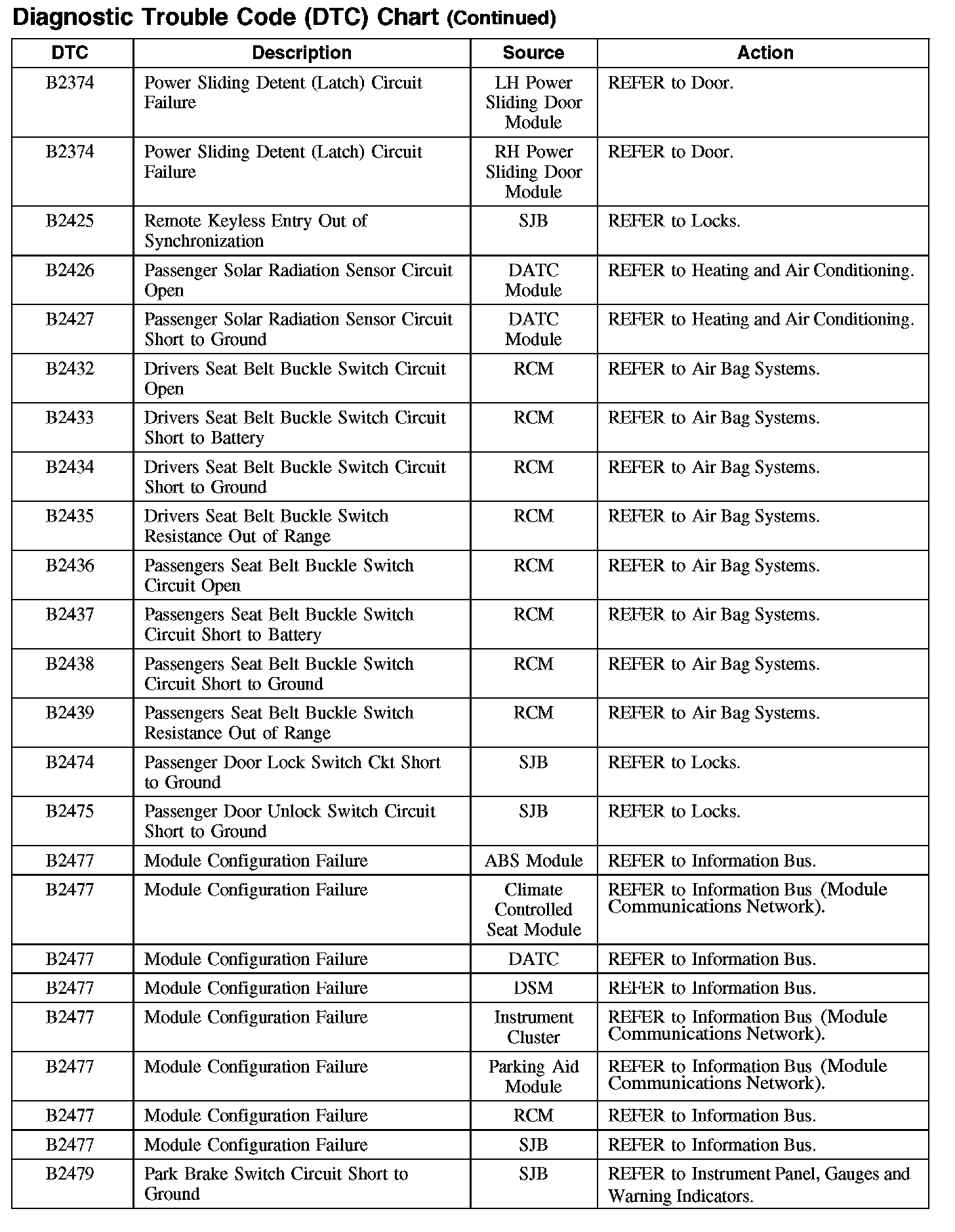

B2374-B2479:

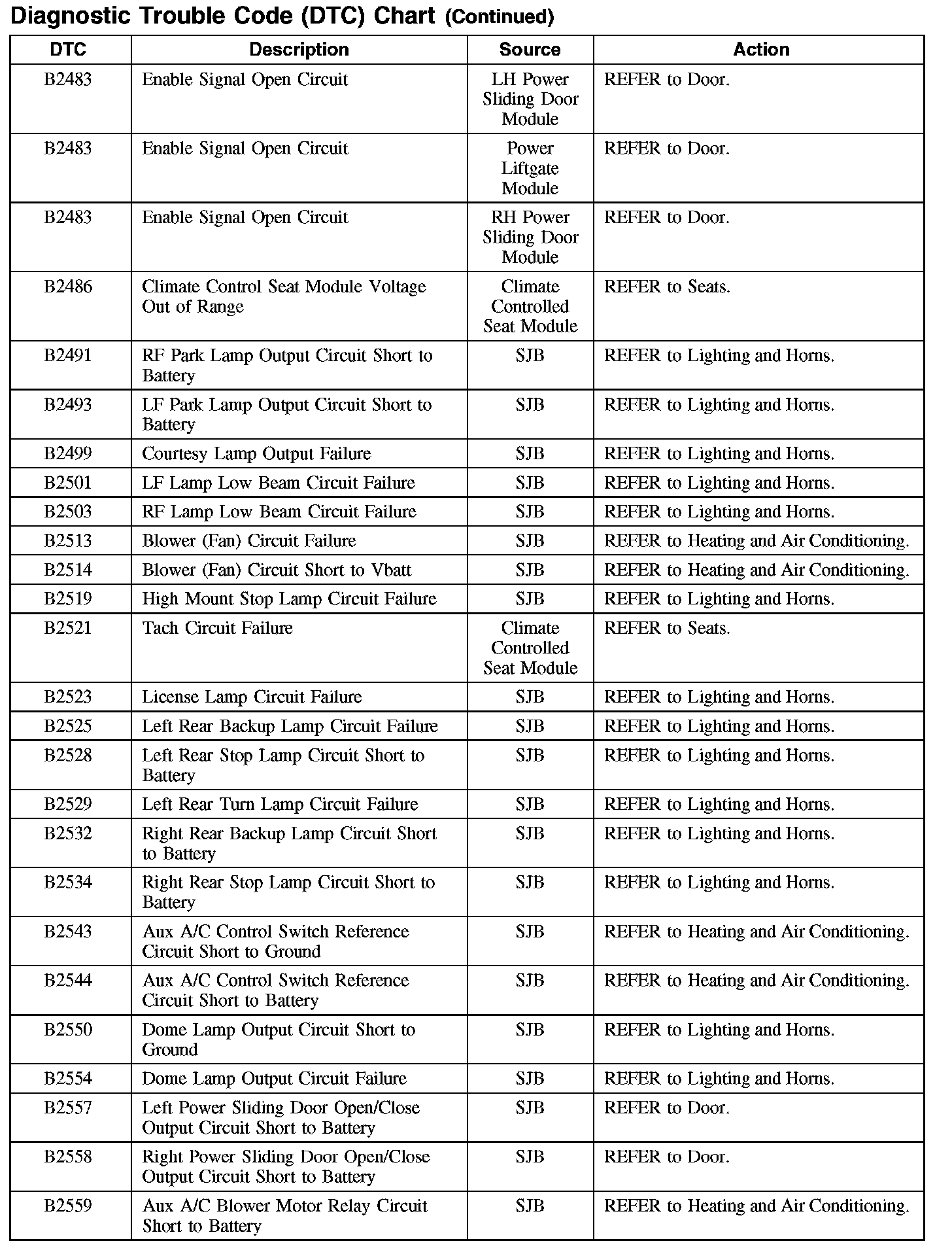

B2483-B2559:

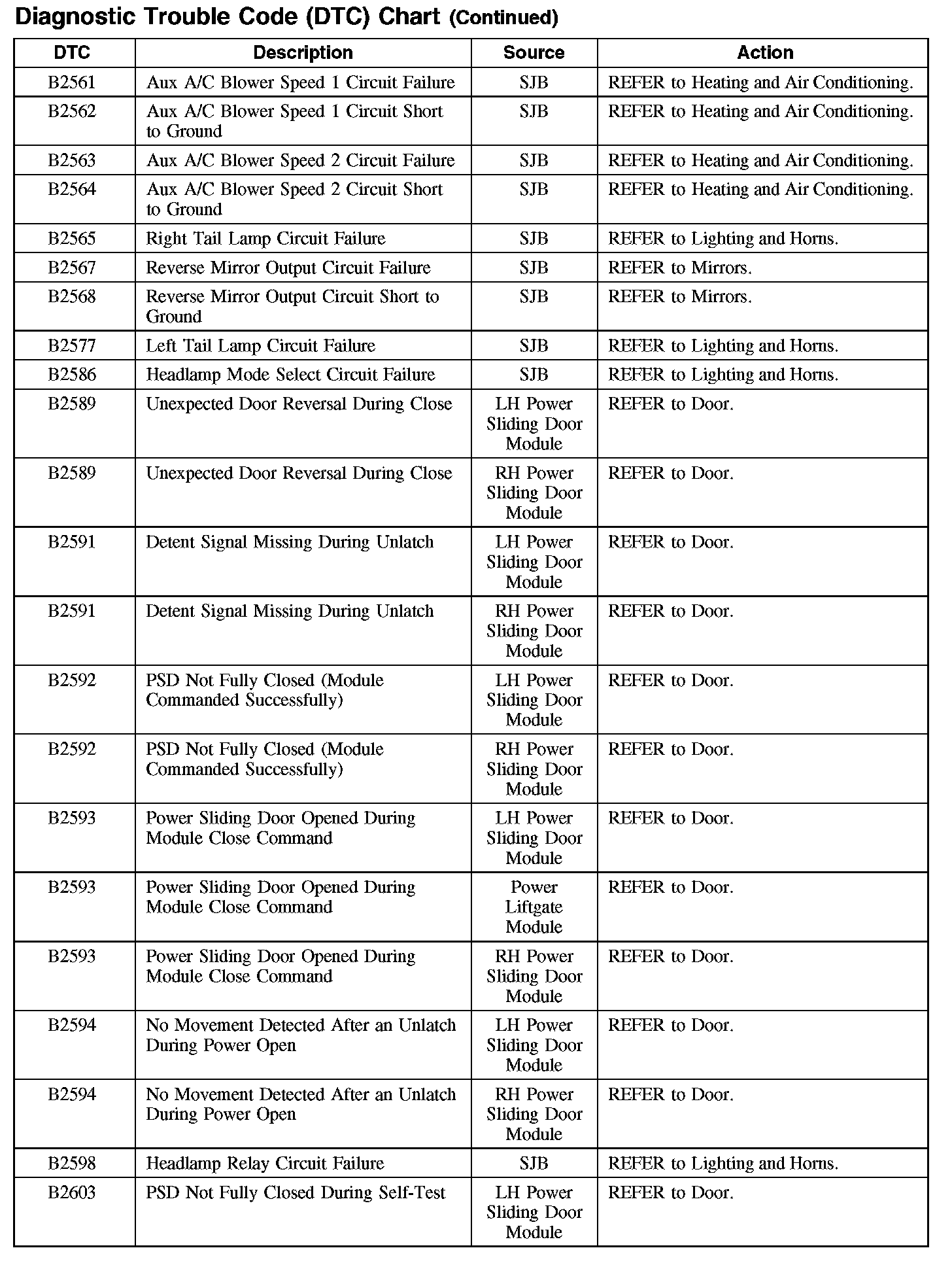

B2561-B2603:

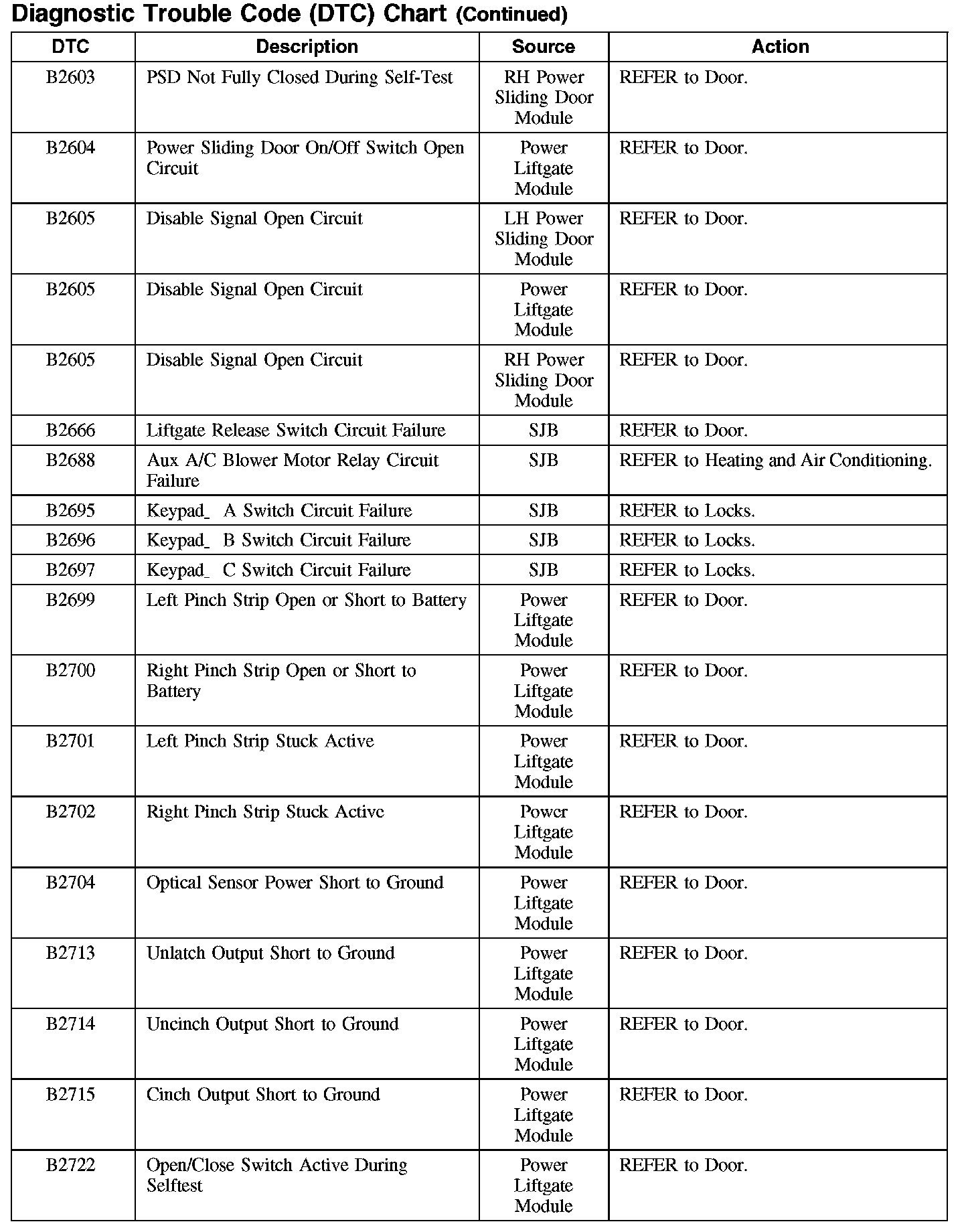

B2603-B2722:

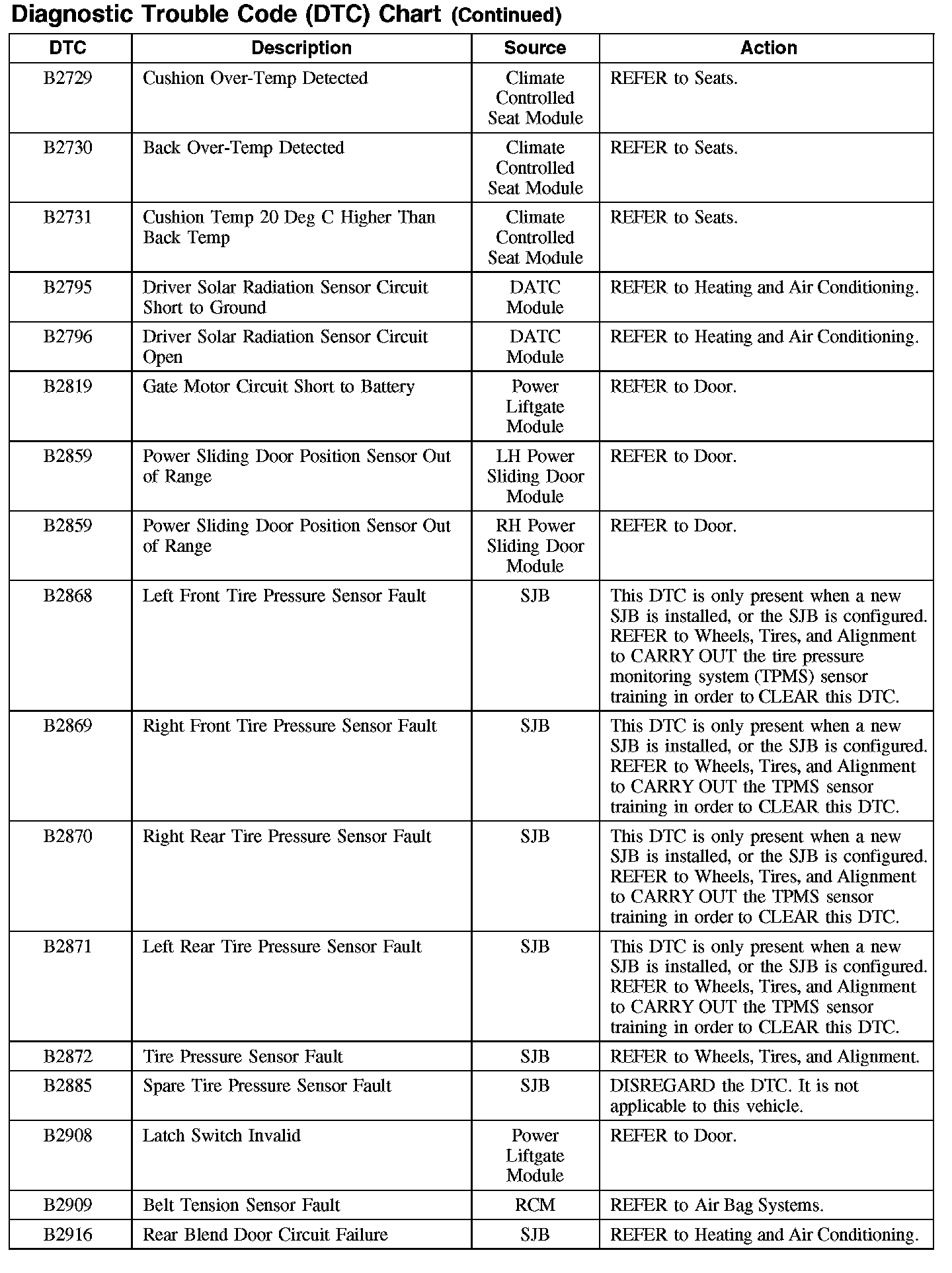

B2729-B2916:

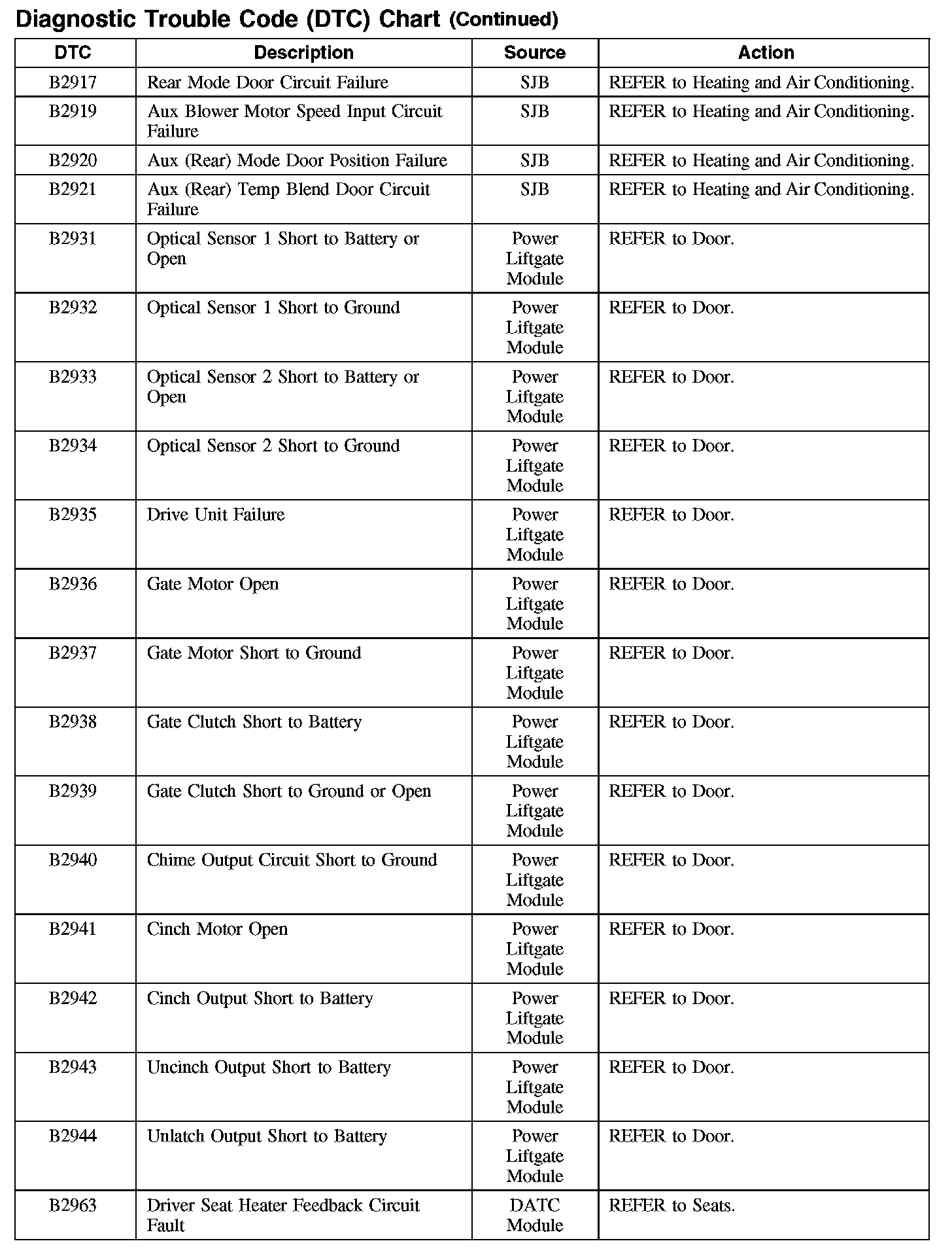

B2917-B2963:

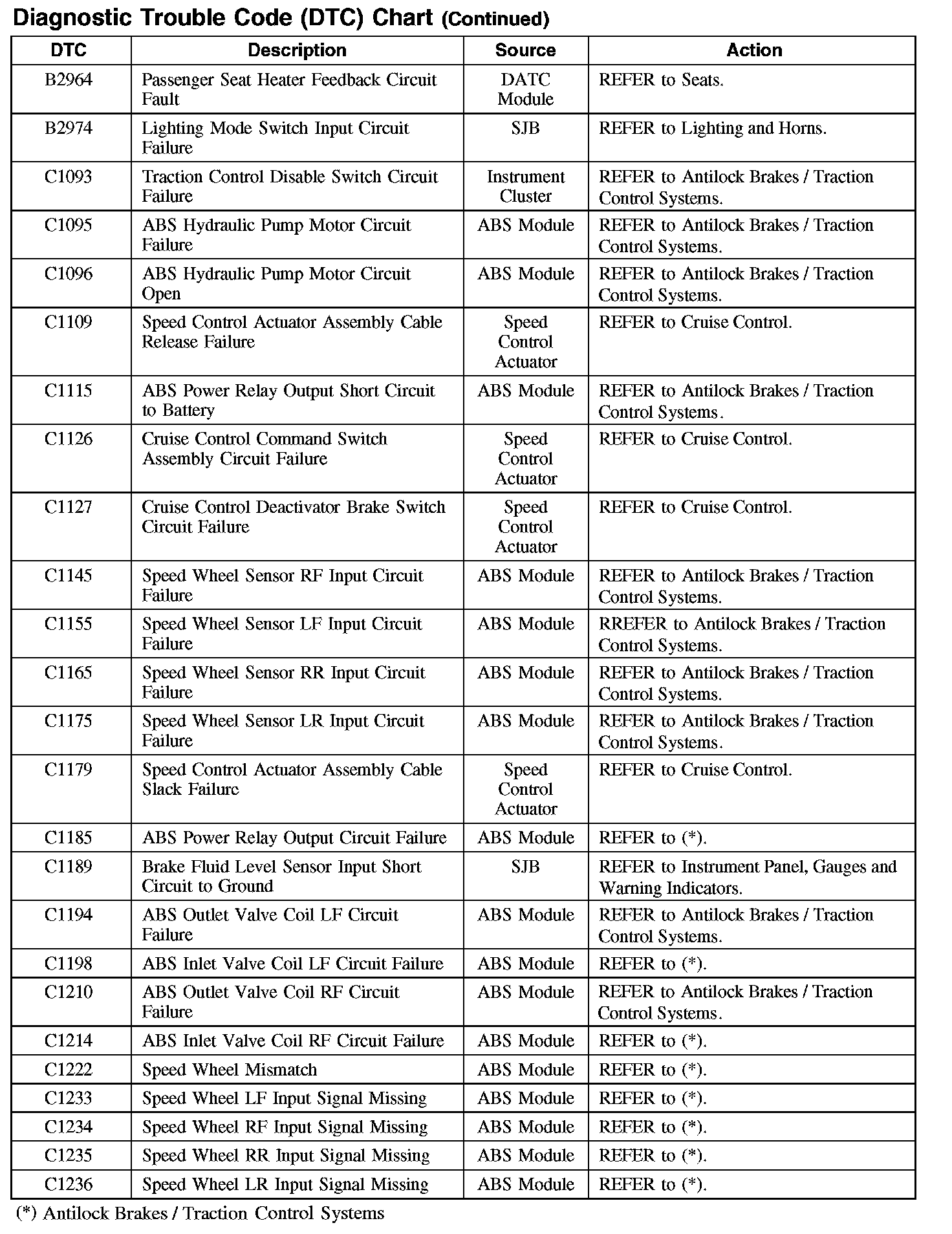

B2964-B2974 / C1093-C1236:

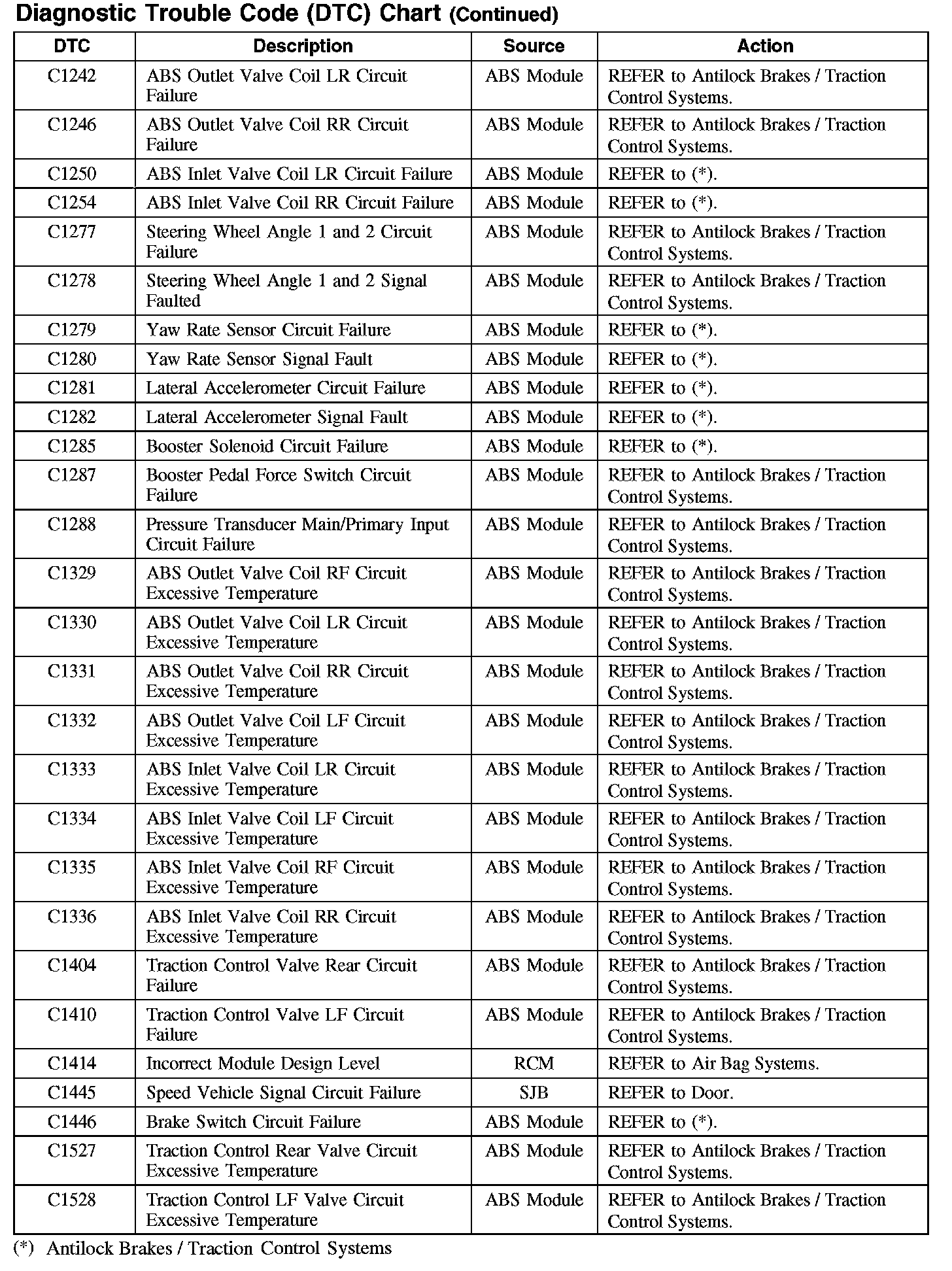

C1242-C1528:

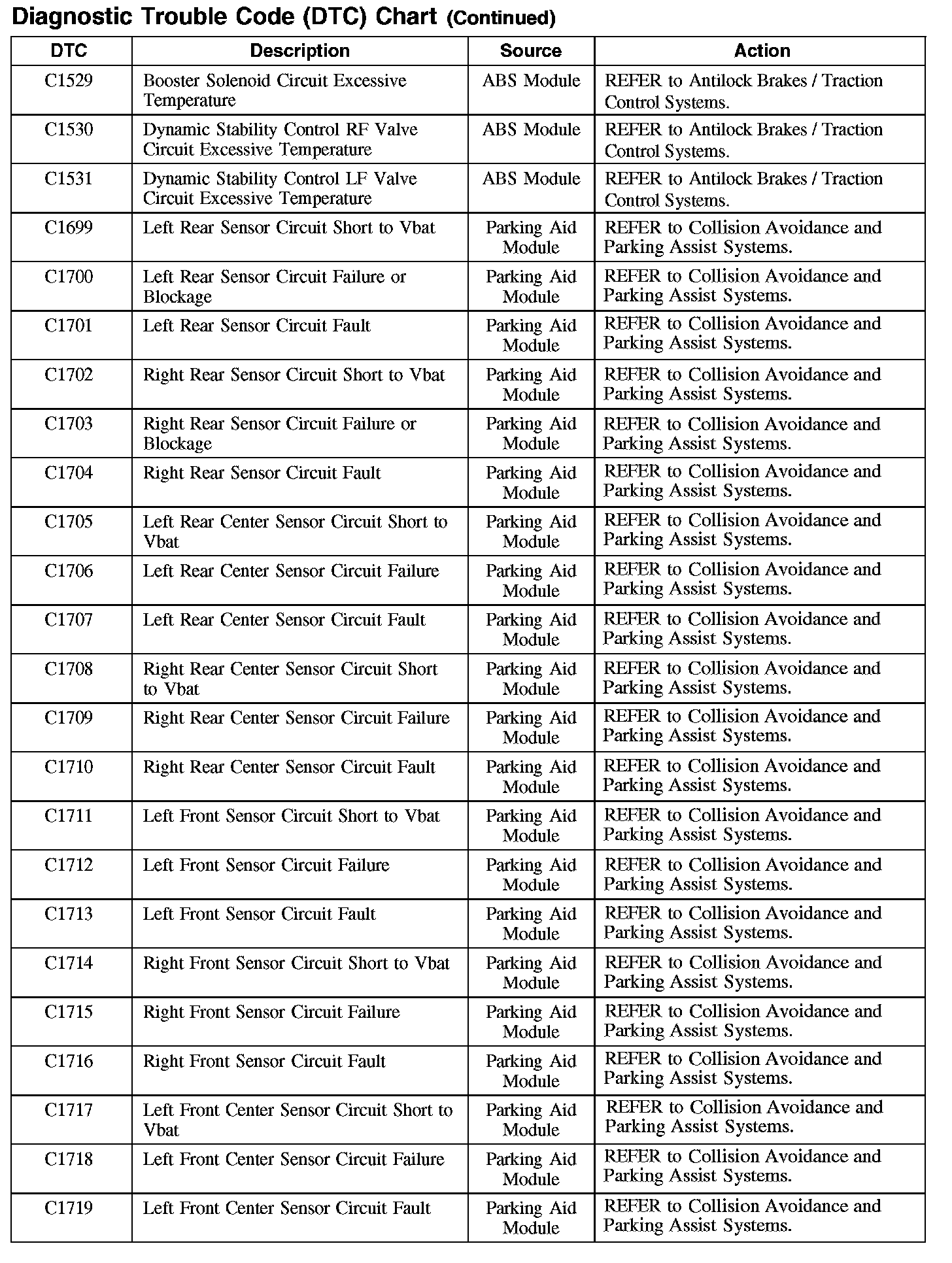

C1529-C1719:

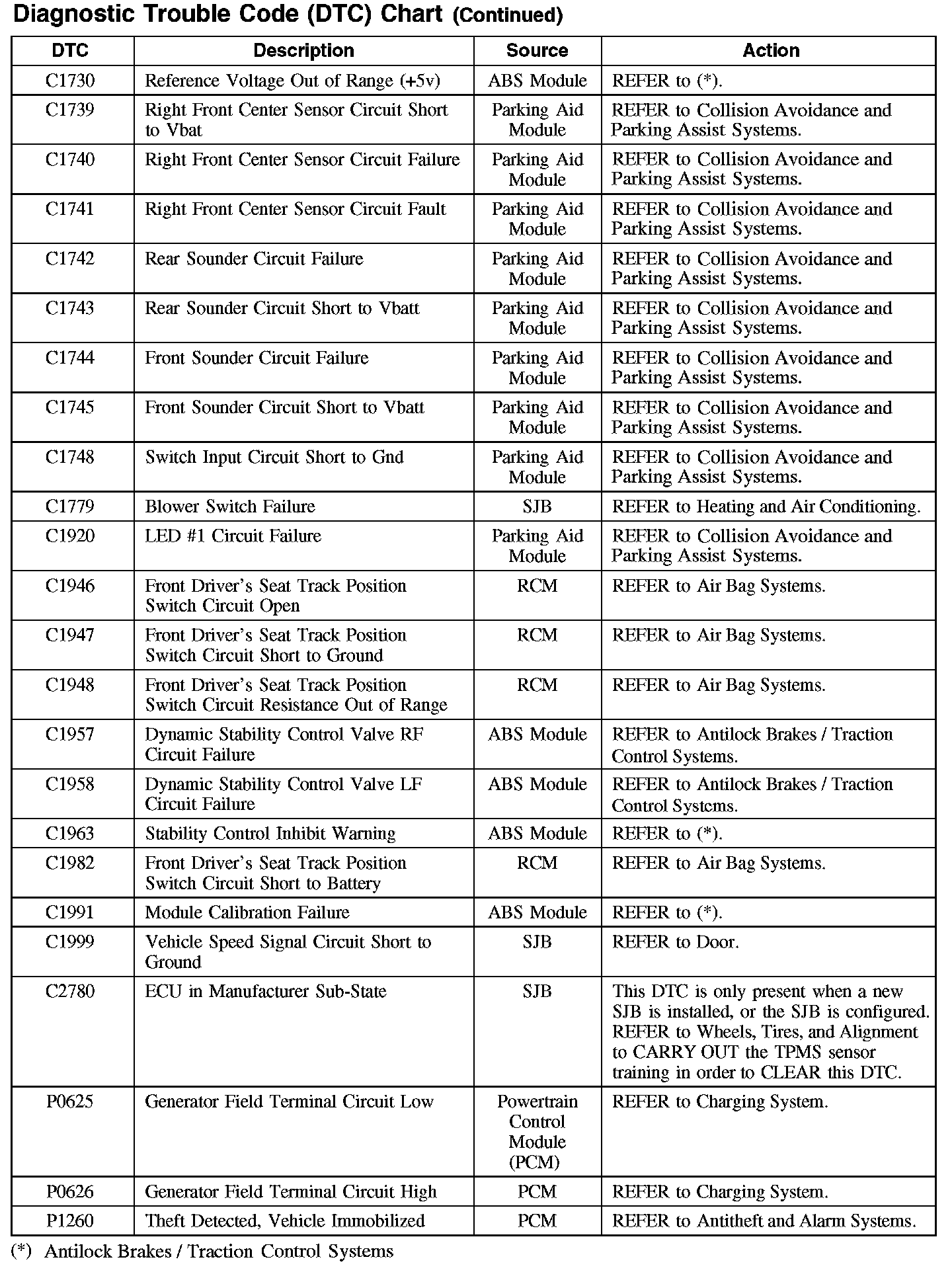

C1730-C2780 / P0625-P1260:

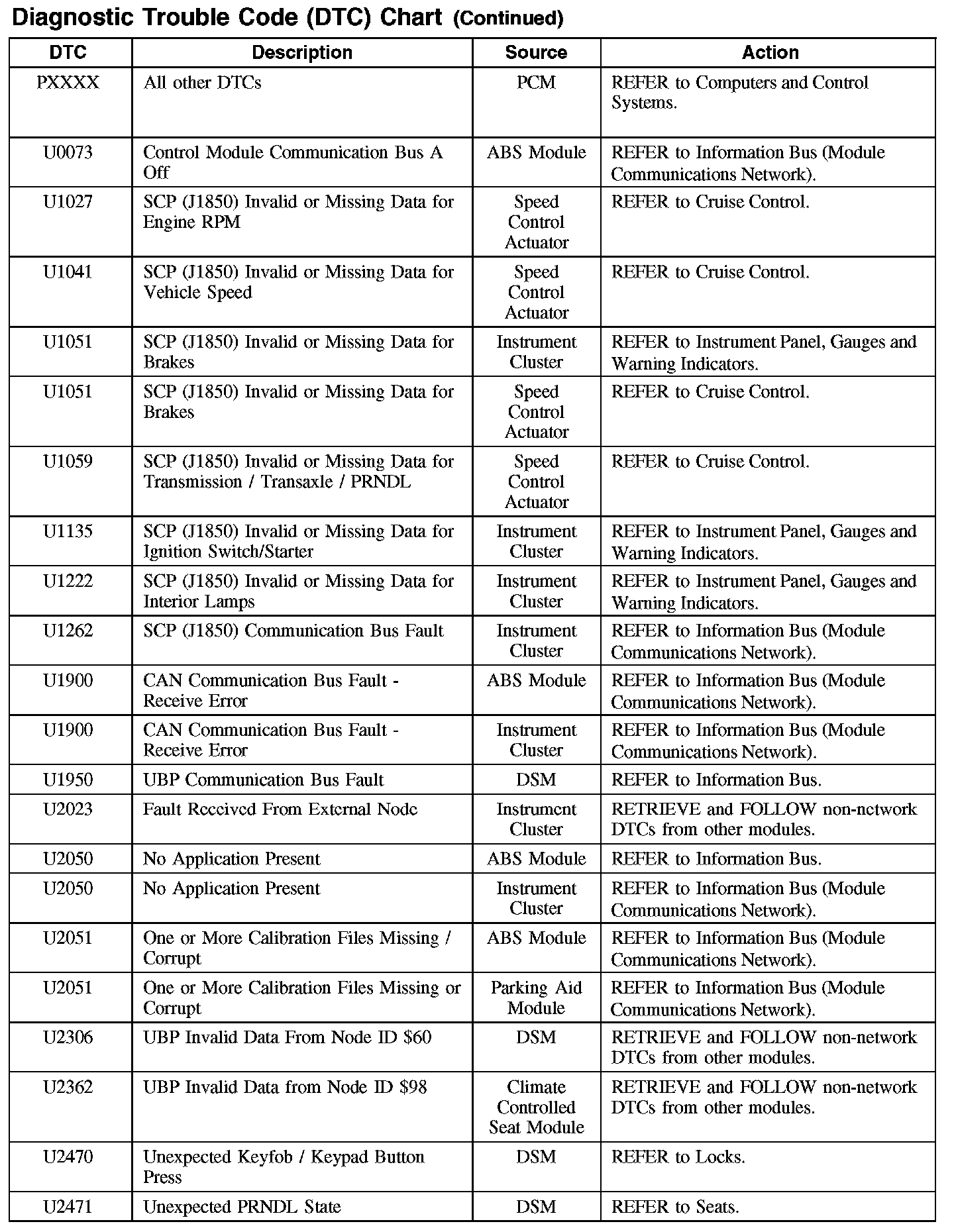

PXXXX / U0073-U2471:
