Keyless Entry Key-Pad: Service and Repair

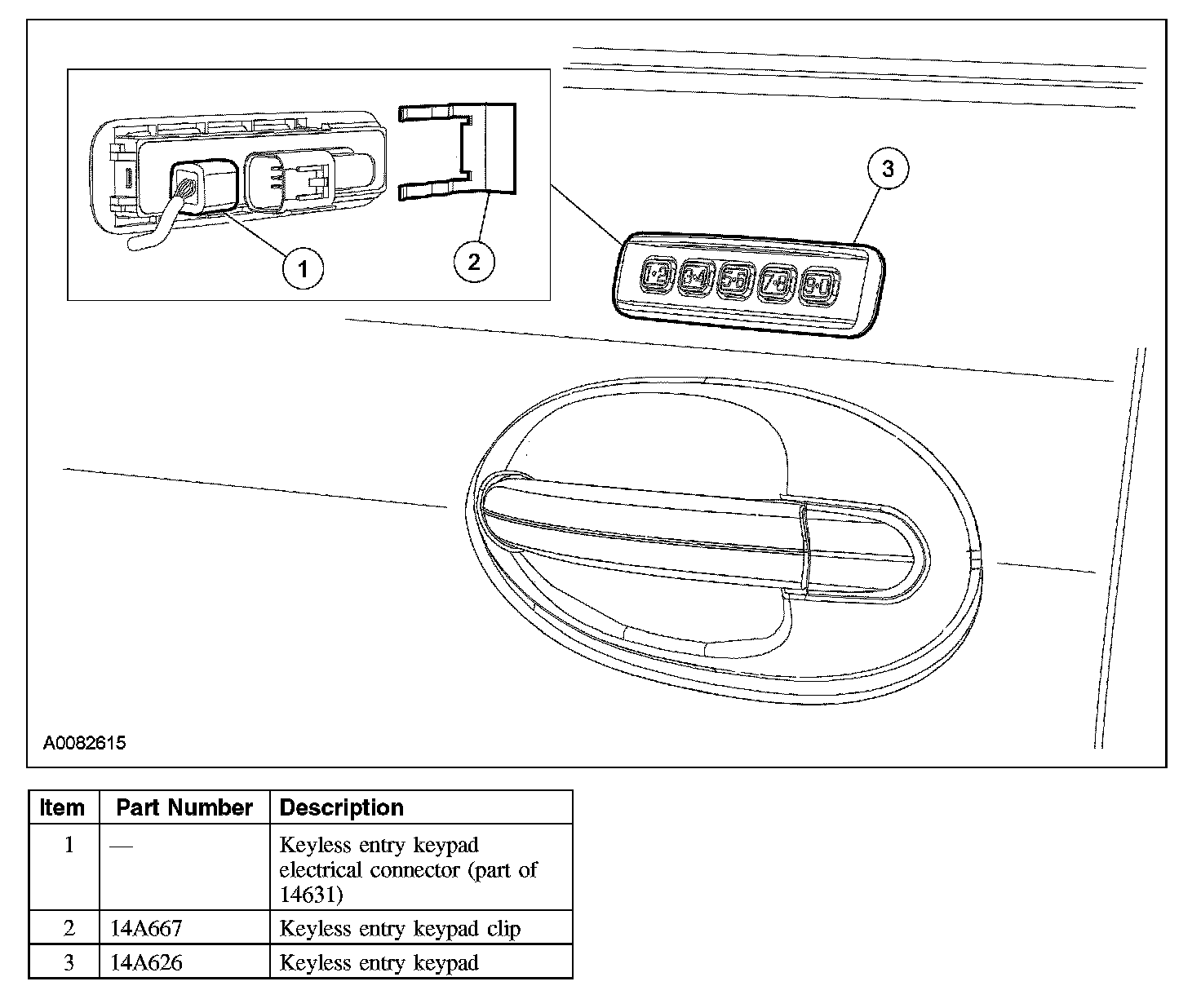

KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the front door trim panel.
2. Disconnect the keyless entry keypad electrical connector.
3. Remove the clip and the keyless entry keypad.
4. To install, reverse the removal procedure.
