Cruise Control Servo: Service and Repair

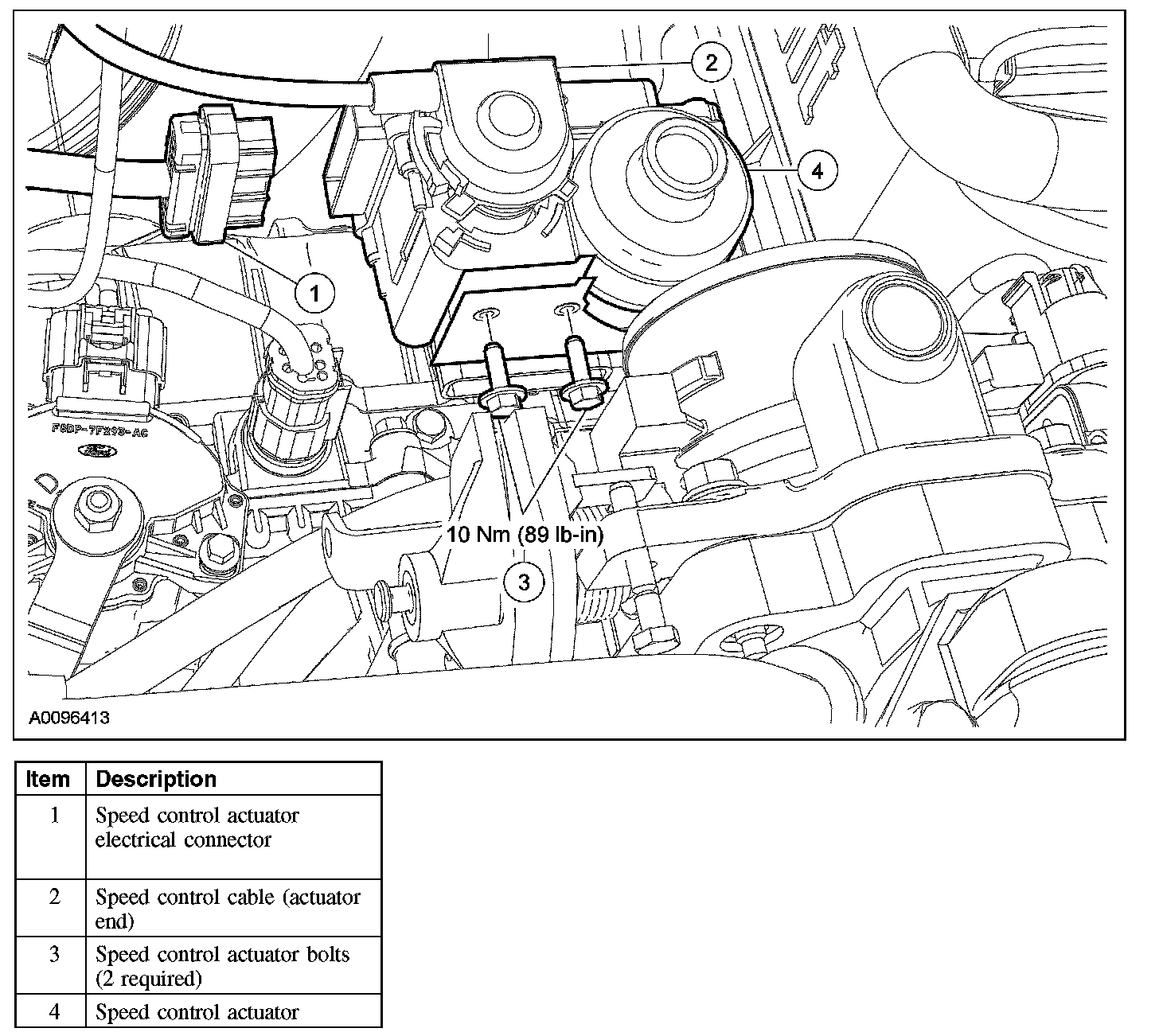

SPEED CONTROL ACTUATOR







Removal and Installation
1. Remove the speed control cable.
2. Disconnect the speed control actuator electrical connector.
3. Remove the 2 bolts and the speed control actuator.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
