Control Assembly: Service and Repair

CLIMATE CONTROL ASSEMBLY







Removal and Installation
1. Remove the center instrument cluster finish panel.
- Pull outward to release the retaining clips on the center instrument cluster finish panel.
- Disconnect the electrical connectors.

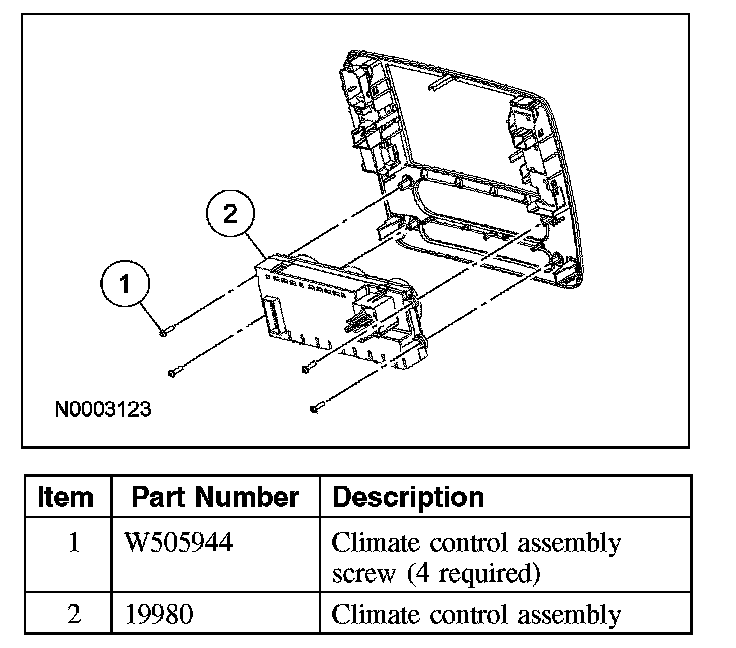

2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. To install, reverse the removal procedure.
