Splices Location Index

PLEASE NOTE: If a link on the Splices Location Index to a View is not provided, that means that the Splices and/or View in question does NOT apply to the vehicle model selected.

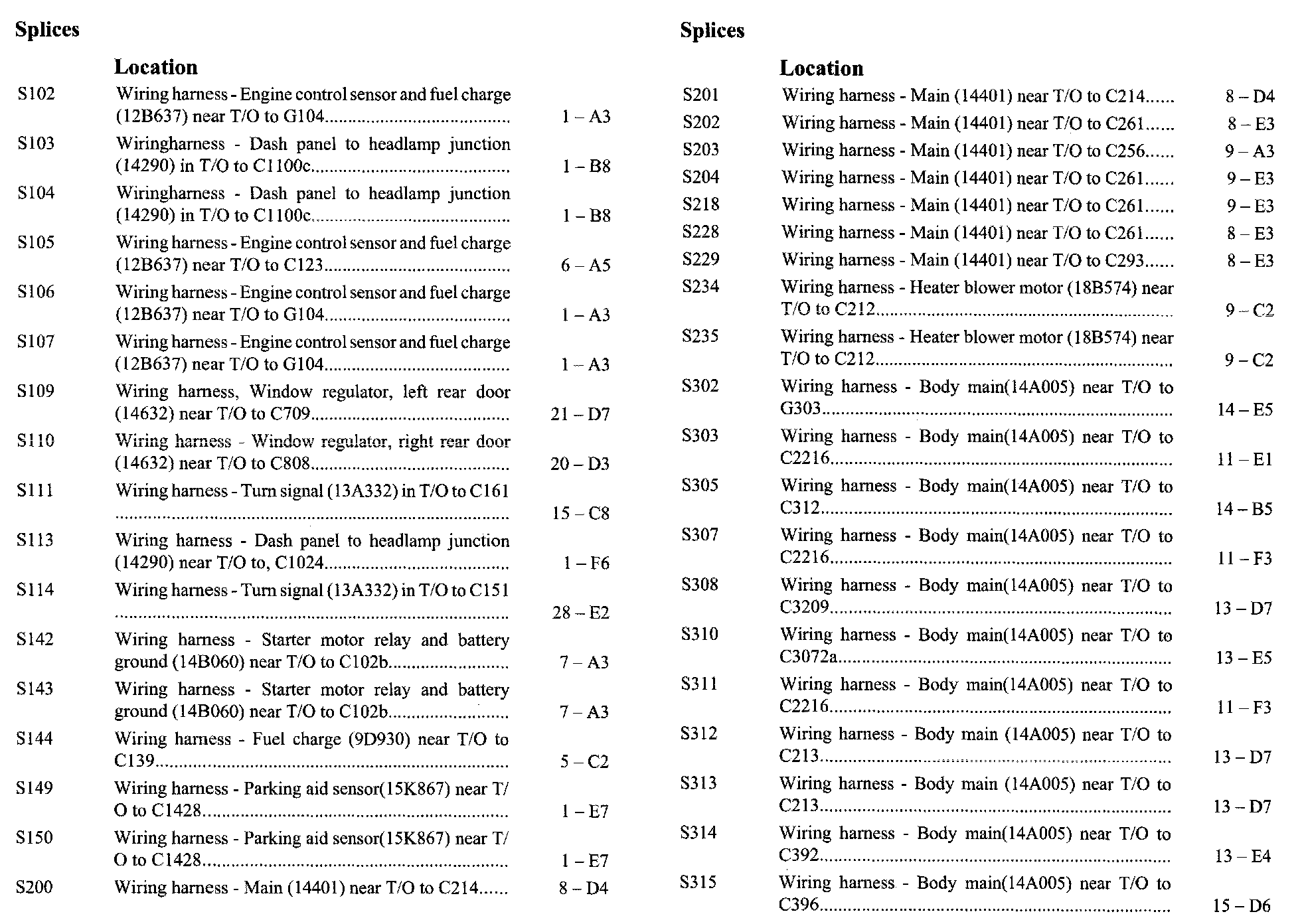

S102-S315:

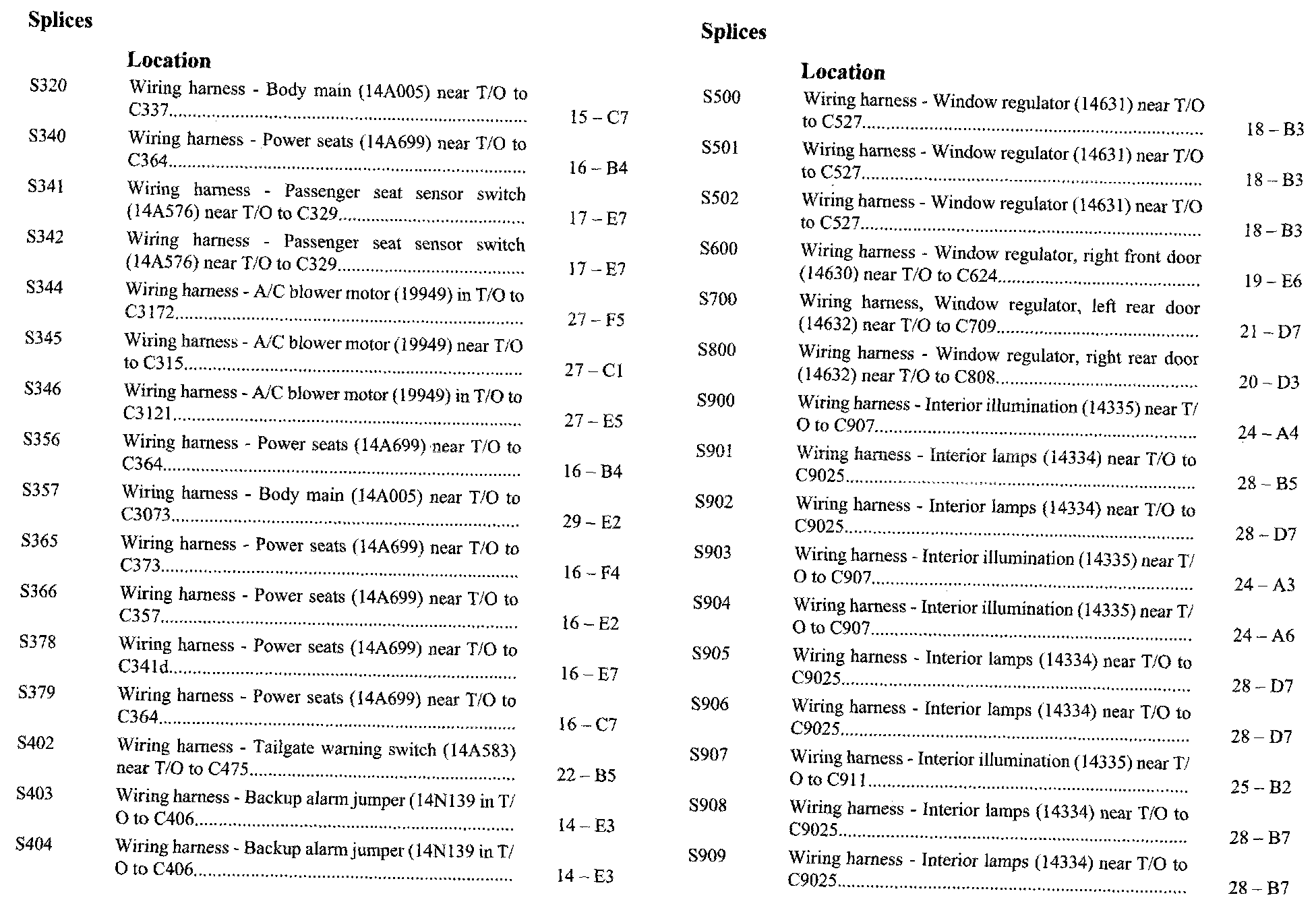

S320-S909:

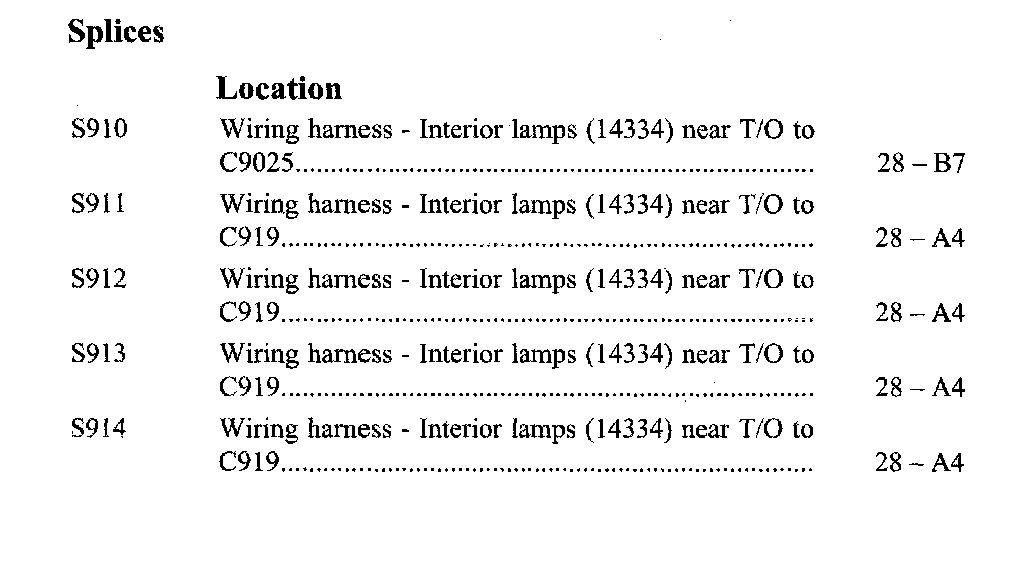

S910-S914:
