Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

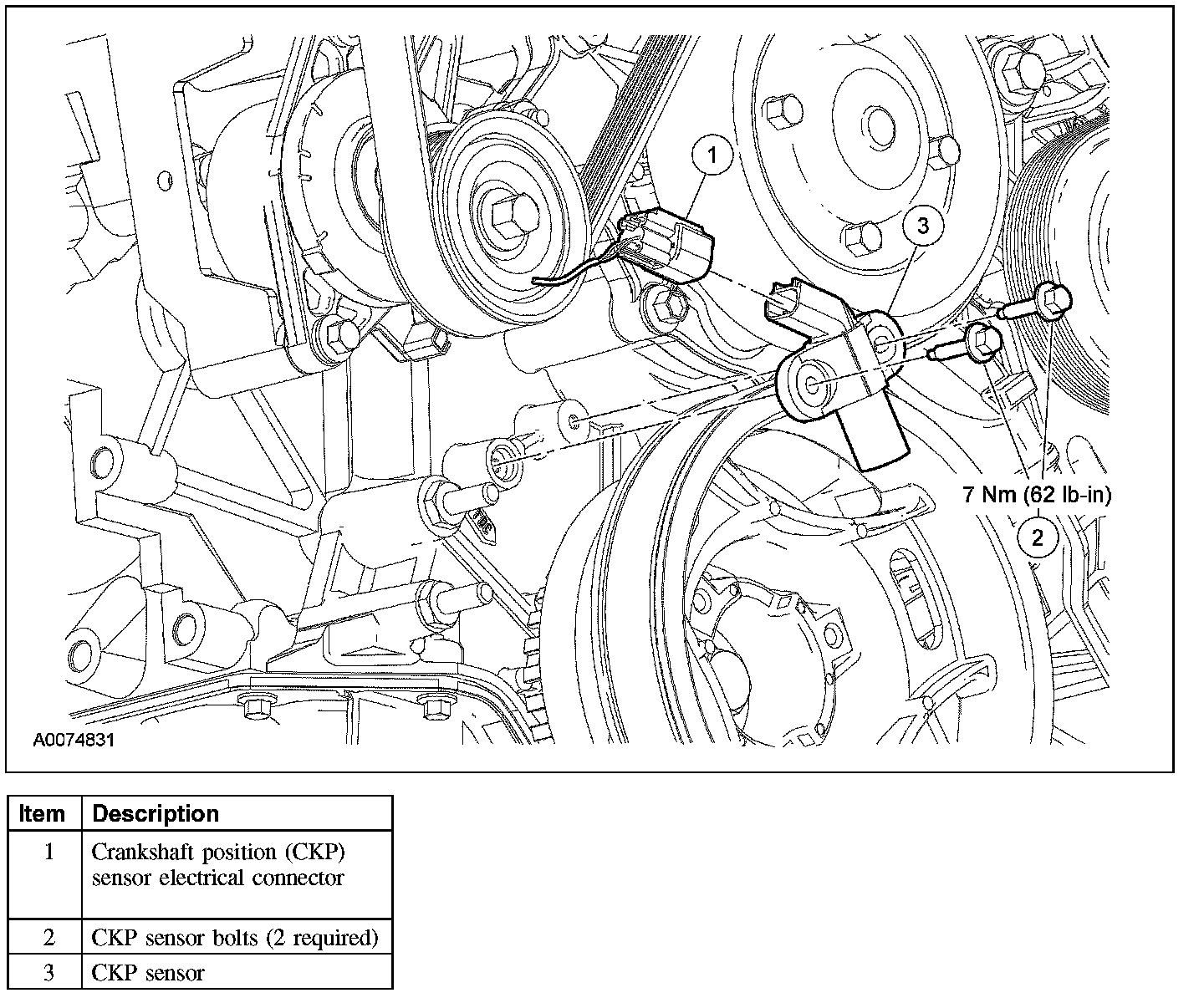

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Disconnect the CKP sensor electrical connector.
4. Remove the 2 CKP sensor bolts.
- To install, tighten to 7 Nm (62 lb-in).

5. Remove the CKP sensor.
6. To install, reverse the removal procedure.
