Restraints Control Module (RCM) Lamp Fault Code (LFC) Table

RESTRAINTS CONTROL MODULE (RCM) LAMP FAULT CODE (LFC) TABLE

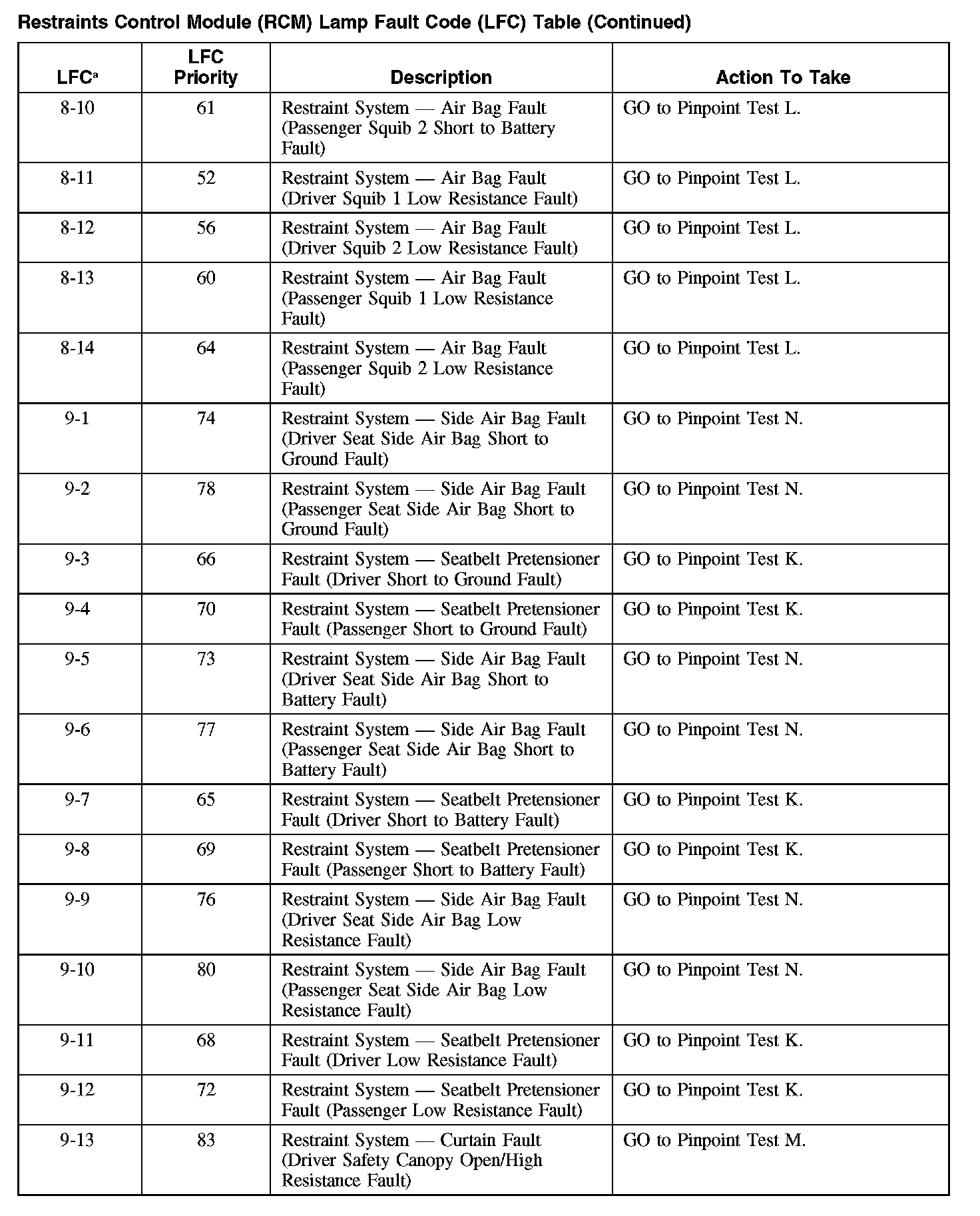

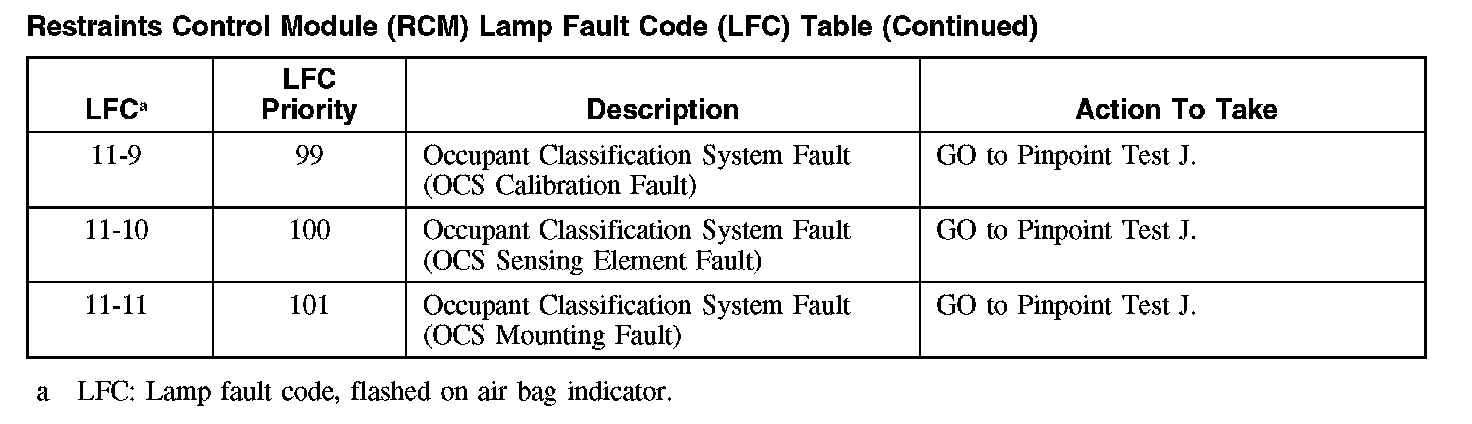

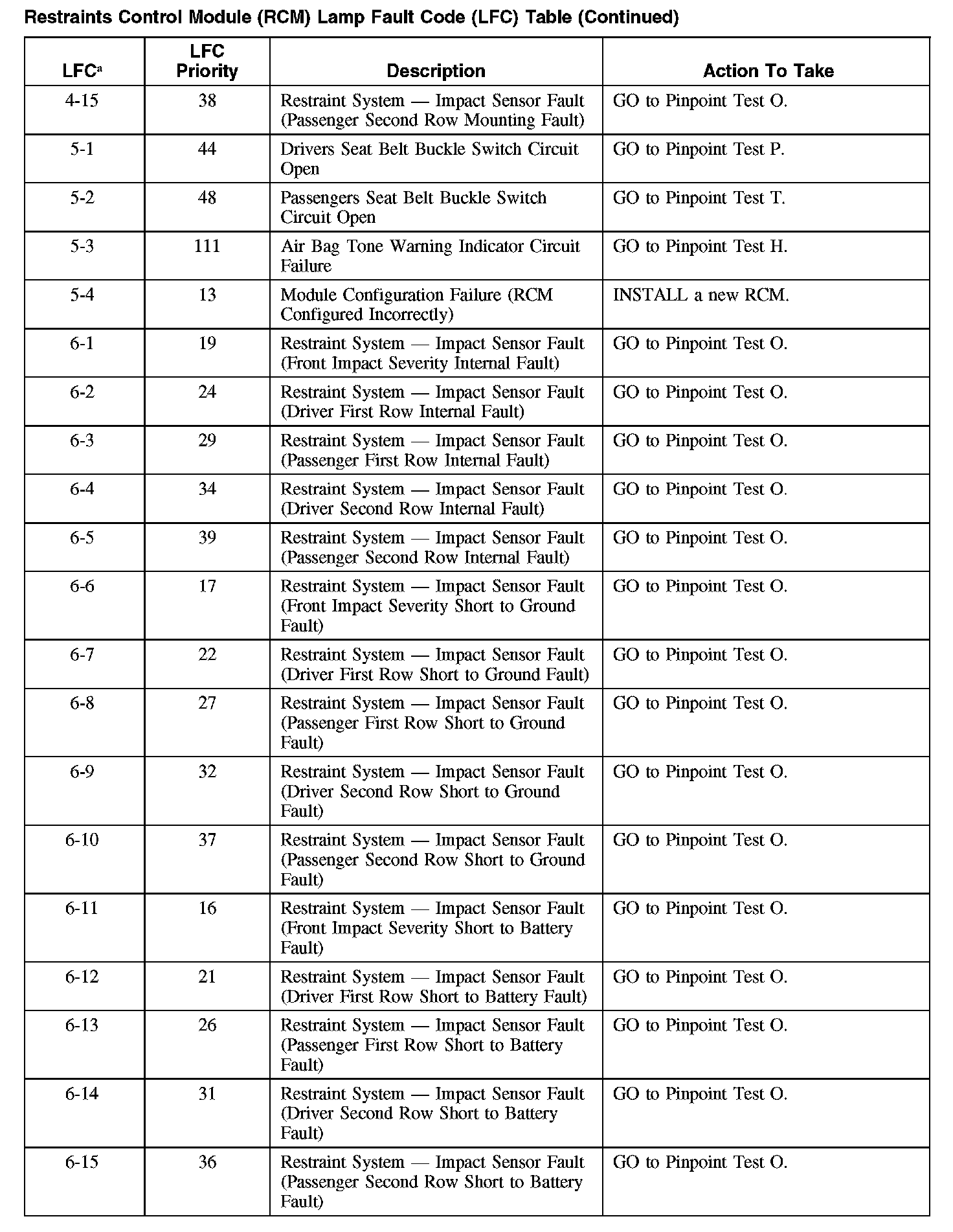

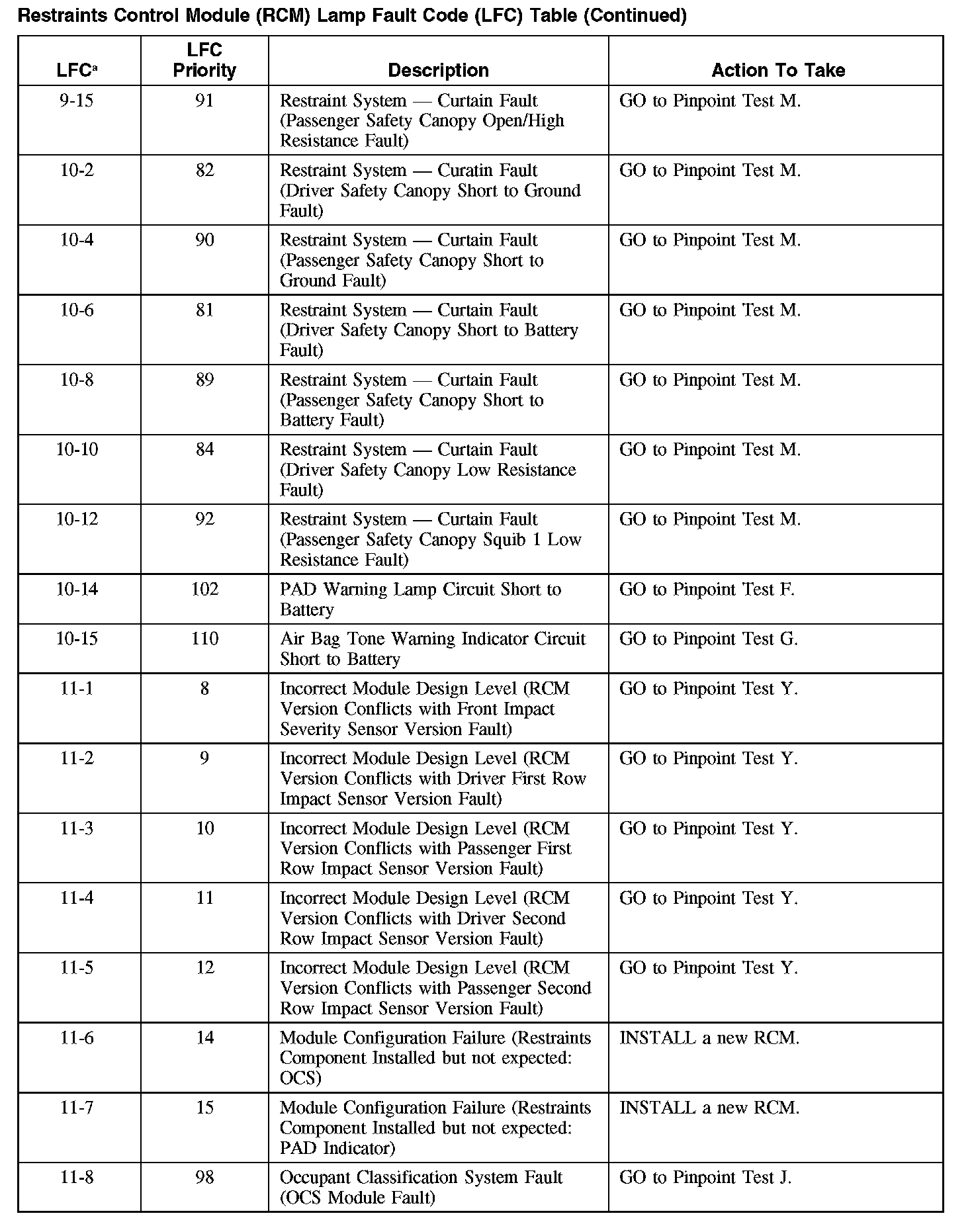

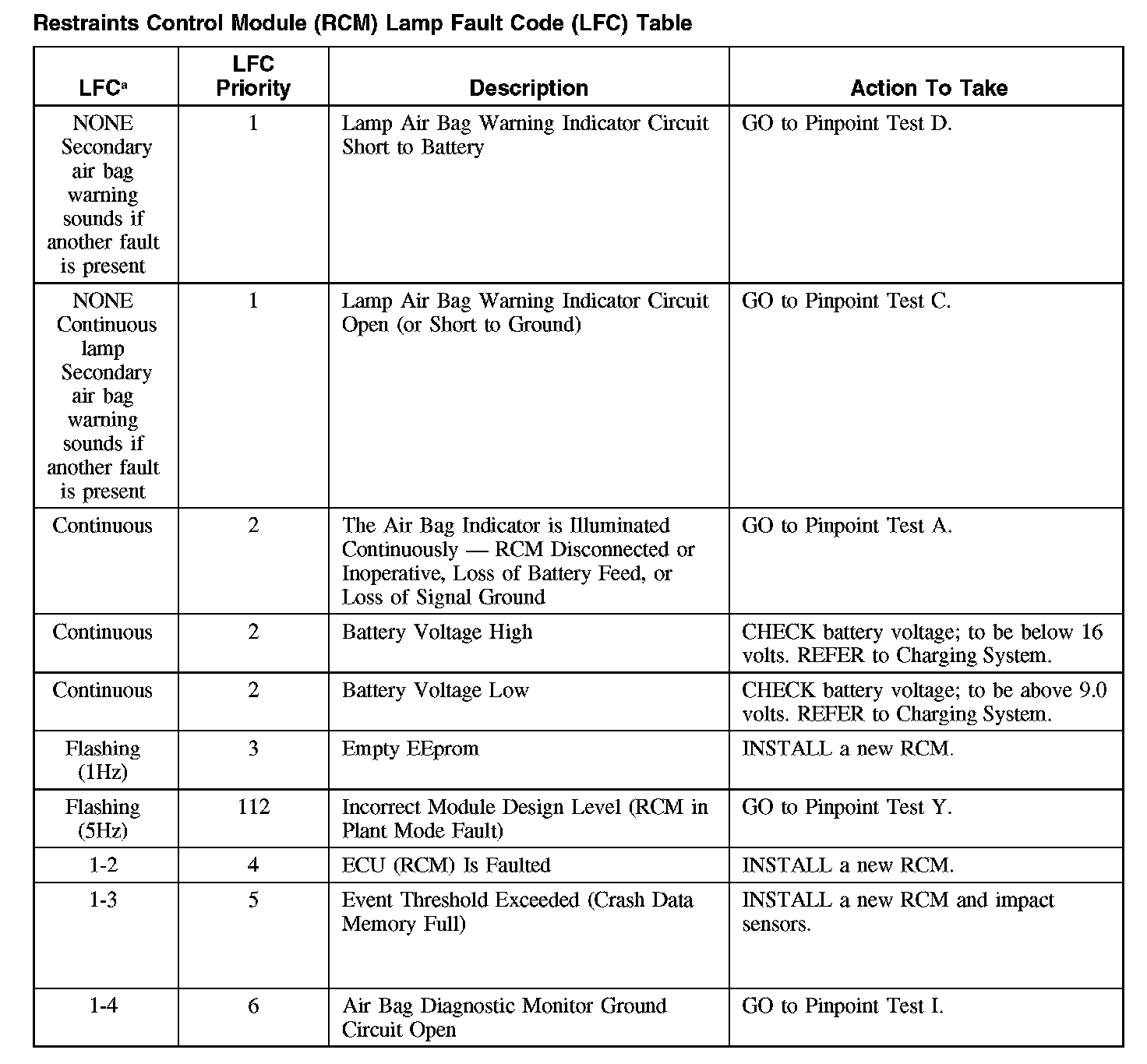

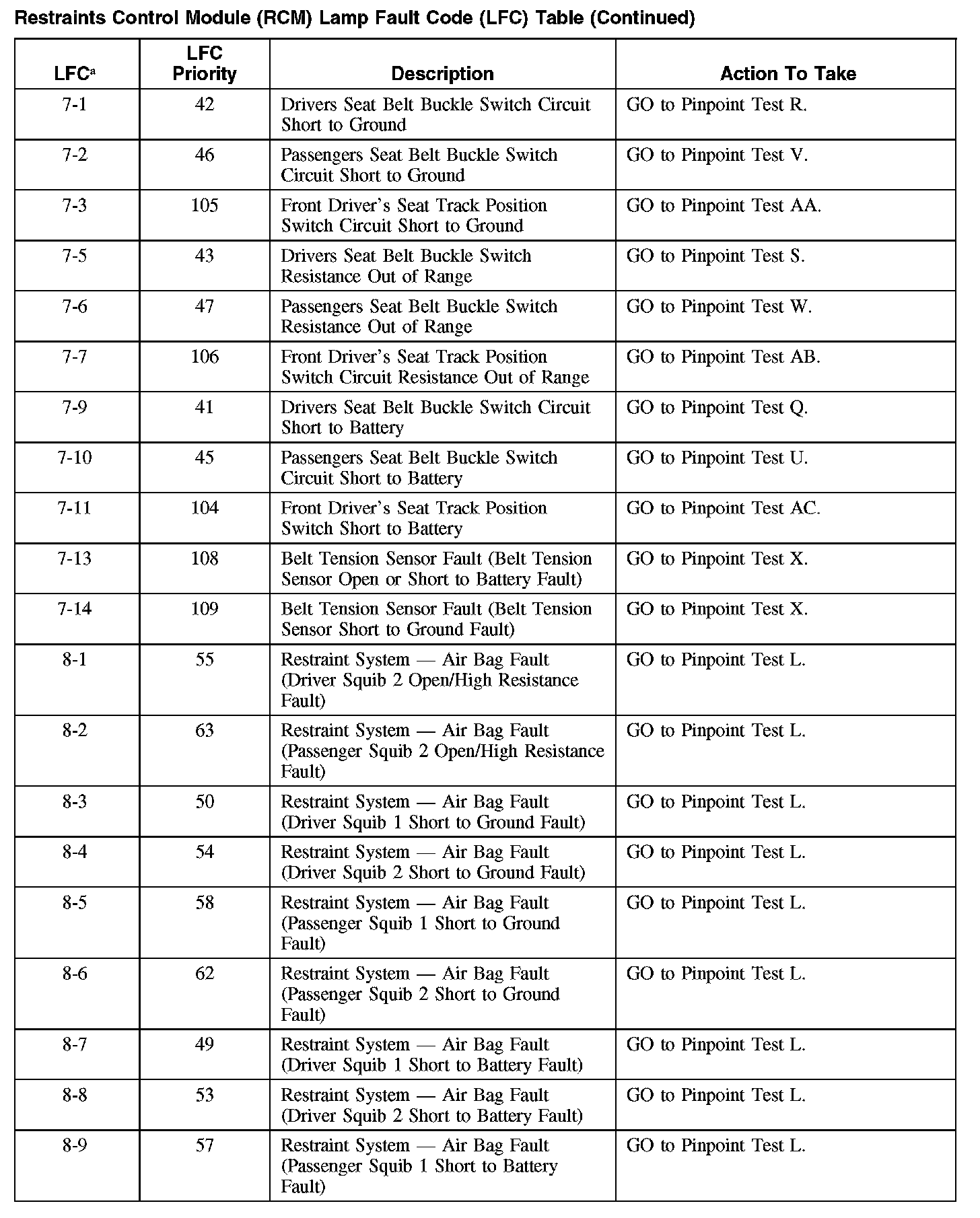

Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 1):






Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 2):






Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 3):






Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 4):






Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 5):






Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 6):






Restraints Control Module (RCM) Lamp Fault Code (LFC) Table (Part 7):
