System Specifications

Timing chain tensioner bolts 11 Nm (8 ft. lbs).

Crankshaft pulley bolt 160 Nm (118 ft. lbs).

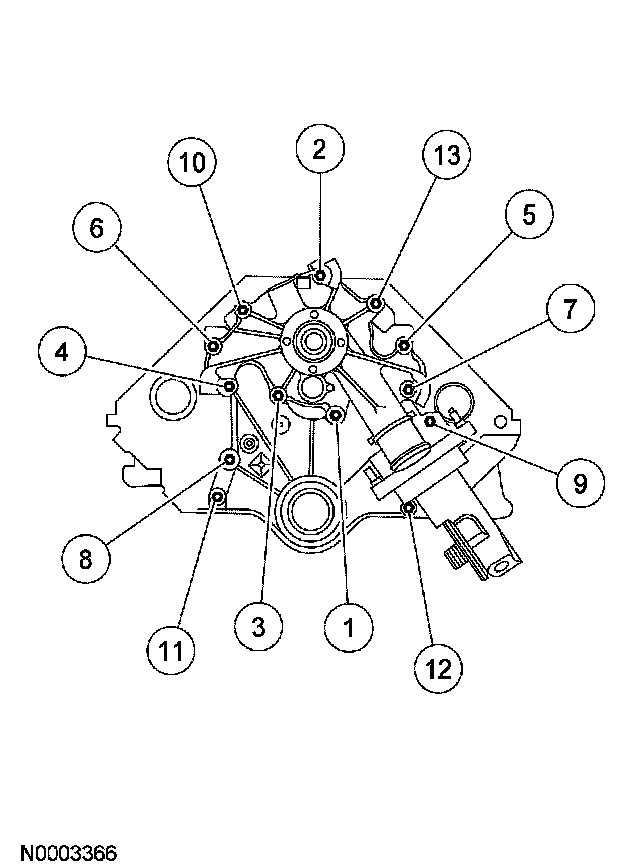

Engine Front Cover Fasteners





First pass: Bolt No. 12 10 Nm (89 inch lbs).
Final pass: All other fasteners 28 Nm (21 ft. lbs).

Oil pan-to-engine front cover bolts 10 Nm (89 inch lbs).
