Lower Intake Manifold: Notes

Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

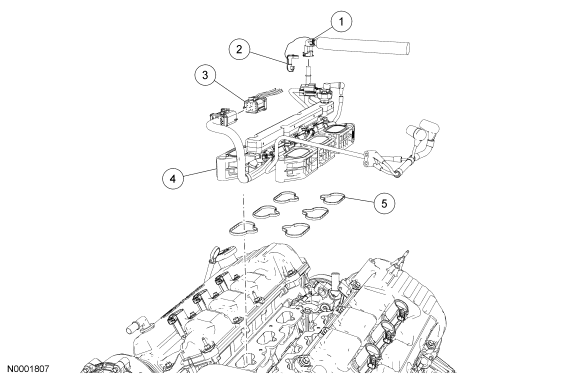

Fig 1: Exploded View Of Lower Intake Manifold
GF0017007Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9G700 Fuel tube
2 - Fuel tube redundant clip (part of 9G700)
3 14A464 Fuel charging wiring harness electrical connector (part of 9H589)
4 9K461 Lower intake manifold
5 9439 Lower intake manifold gasket (6 required)
