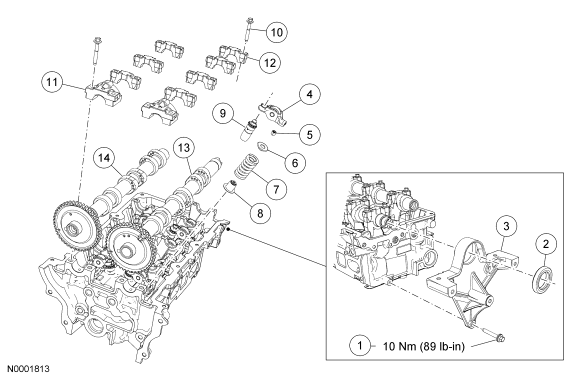

Valve Train Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | W503280 | Camshaft oil seal retainer bolt (3 required) |
| 2 | 6K292 | Camshaft oil seal |
| 3 | 6B294 | Camshaft oil seal retainer |
| 4 | 6529 | Roller follower |
| 5 | 6518 | Valve spring retainer key |
| 6 | 6514 | Valve spring retainer |
| 7 | 6513 | Valve spring |
| 8 | 6A517 | Valve stem seal |
| 9 | 6C501 | Hydraulic lash adjuster |
| 10 | W705391-S | Camshaft bearing cap bolt (16 required) |
| 11 | 6B280 | Camshaft bearing thrust cap (2 required) |
| 12 | 6A258 | Camshaft bearing cap (7 required) |
| 13 | 6A269 | Exhaust camshaft |
| 14 | 6A268 | Intake camshaft |

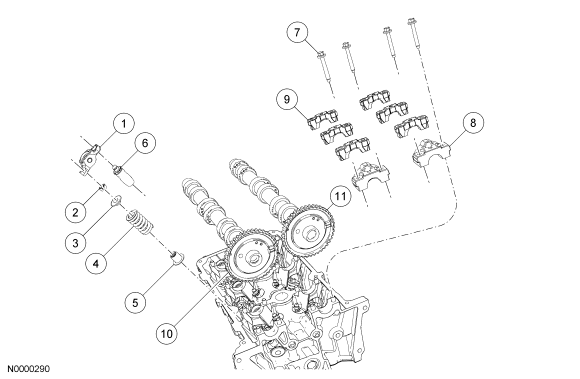

| Item | Part Number | Description |
|---|---|---|
| 1 | 6529 | Roller follower |
| 2 | 6518 | Valve spring retainer key |
| 3 | 6514 | Valve spring retainer |
| 4 | 6513 | Valve spring |
| 5 | 6A517 | Valve stem seal |
| 6 | 6C501 | Hydraulic lash adjuster |
| 7 | W705391-S | Camshaft bearing cap bolt (16 required) |
| 8 | 6B280 | Camshaft bearing thrust cap (2 required) |
| 9 | 6A258 | Camshaft bearing cap (6 required) |
| 10 | 6A267 | Exhaust camshaft |
| 11 | 6A266 | Intake camshaft |
- For additional information, refer to the following procedures.
