Transmission Range (TR) Sensor: Notes

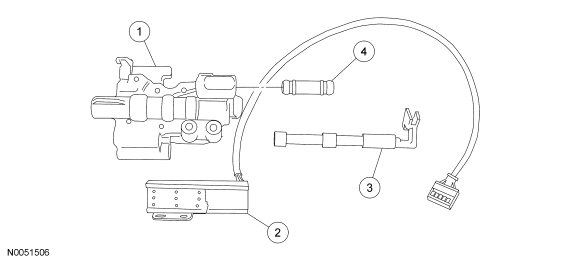

Fig 1: Range Sensor Assembly - Disassembled View
GF0017550Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Manual valve housing
2 - Transaxle range sensor
3 - Manual valve
4 - Sealing sleeve
