Engine Lubrication Components - Exploded View

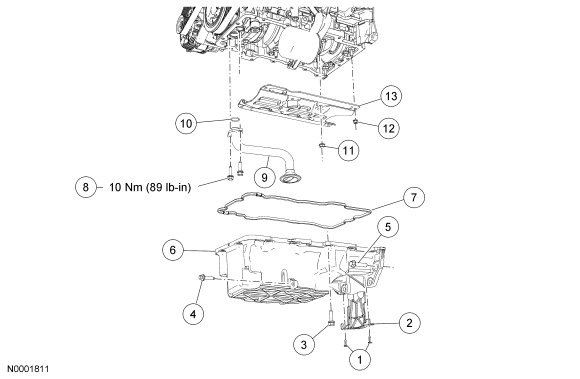

Fig 1: Exploded View Of Oil Pan, Oil Pump Screen & Pickup Tube, & Oil Pan Baffle With Torque Specifications
GF0017065Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N811125 Torque converter lower inspection cover pin-type retainers (2 required)
2 7A828 Torque converter lower inspection cover
3 W709678 Oil pan-to-engine bolt (15 required)
4 W701232 Oil pan-to-oil filter adapter bolt
5 W500121 Oil pan-to-transaxle bolt (2 required)
6 6676 Oil pan
7 6710 Oil pan gasket
8 W709678 Oil pump screen and pickup tube bolt (2 required)
9 6622 Oil pump screen and pickup tube
10 6625 Oil pump screen and pickup tube O-ring seal
11 W701582 Oil pan baffle (M8) nut (4 required)
12 W701542 Oil pan baffle (M6) nut (4 required)
13 6687 Oil pan baffle

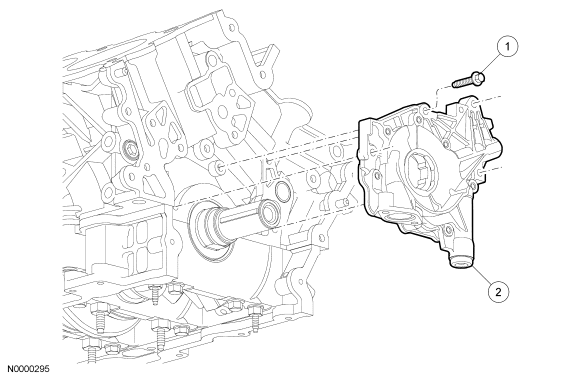

Fig 2: Exploded View Of Oil Pump
GF0017066Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500300-S Oil pump bolt (4 required)
2 6621 Oil pump
  1. For additional information, refer to the following procedures.
