Hydraulic Control Unit (HCU): Notes
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |

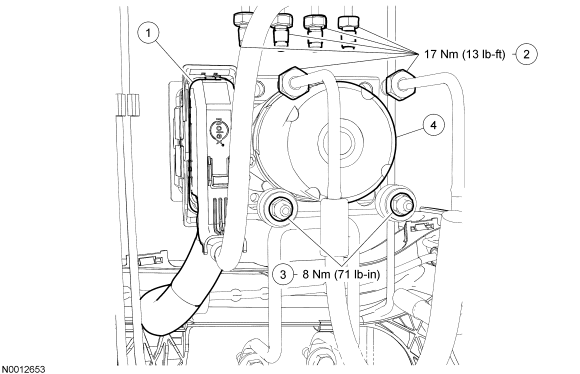

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Anti-lock brake system (ABS) electrical connector (part of 14A005) |
| 2 | - | Brake tube-to-hydraulic control unit (HCU) fittings (part of 2C296) |
| 3 | 3B676 | Bracket-to-HCU bolts (2 required) |
| 4 | 2C065 | HCU |
