Interior Lamp/ Map Lamp Assembly Connector

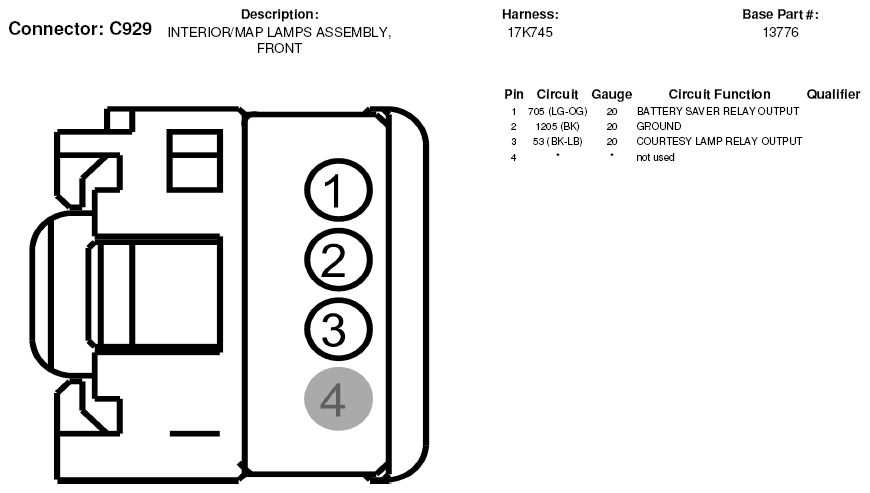

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C929)
Courtesy of FORD MOTOR CO.
Fig 2: Interior Lamp/ Map Lamp Assembly Connector End View (C961)
Courtesy of FORD MOTOR CO.

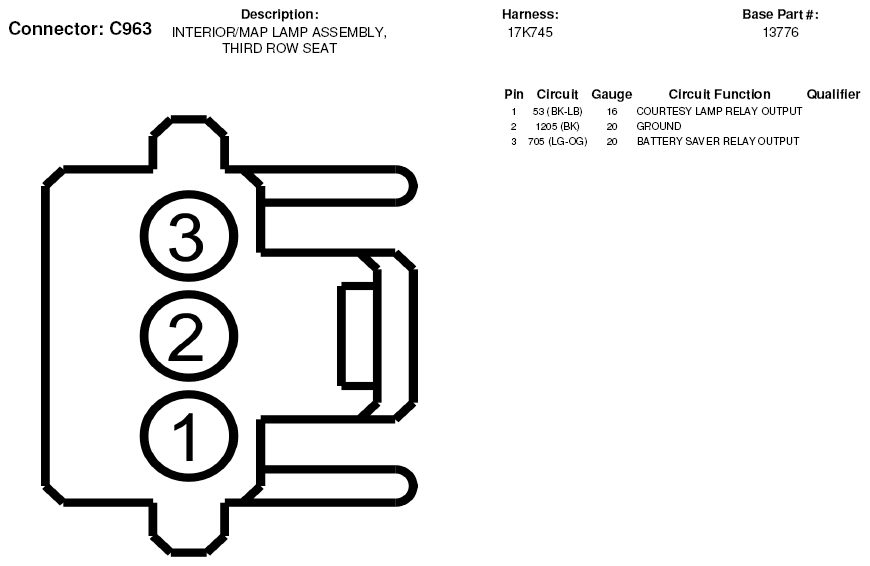

Fig 3: Interior Lamp/ Map Lamp Assembly Connector End View (C963)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
