Safety Canopy Module Connector

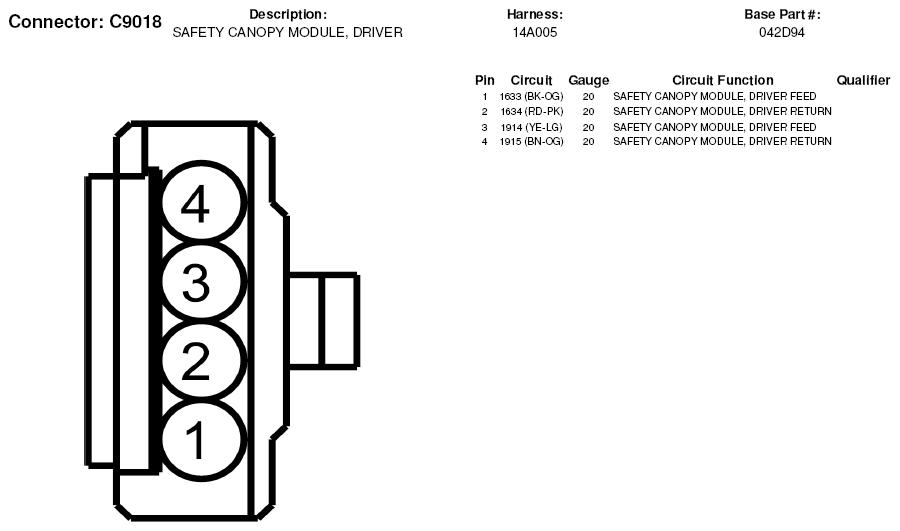

Fig 1: Safety Canopy Module Connector End View (C9018)
G05179666Courtesy of FORD MOTOR CO.

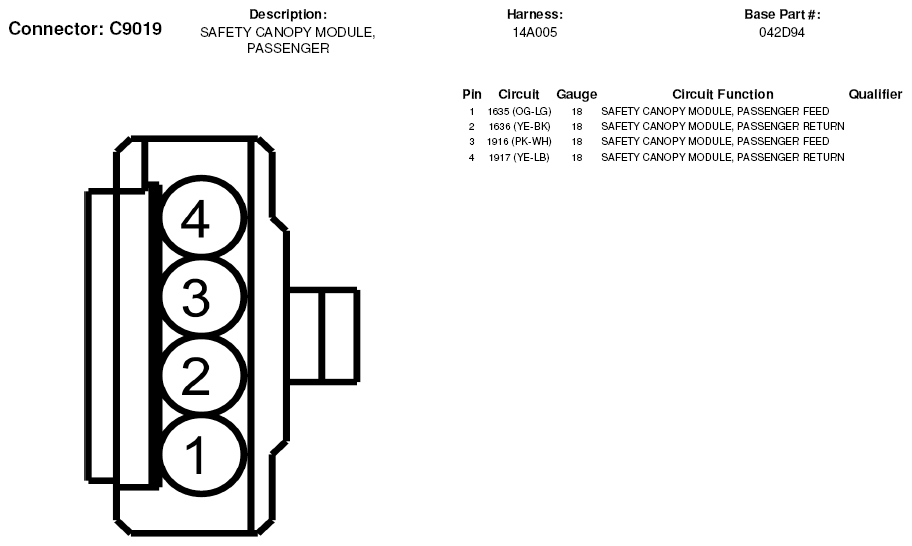

Fig 2: Safety Canopy Module Connector End View (C9019)
G05179667Courtesy of FORD MOTOR CO.

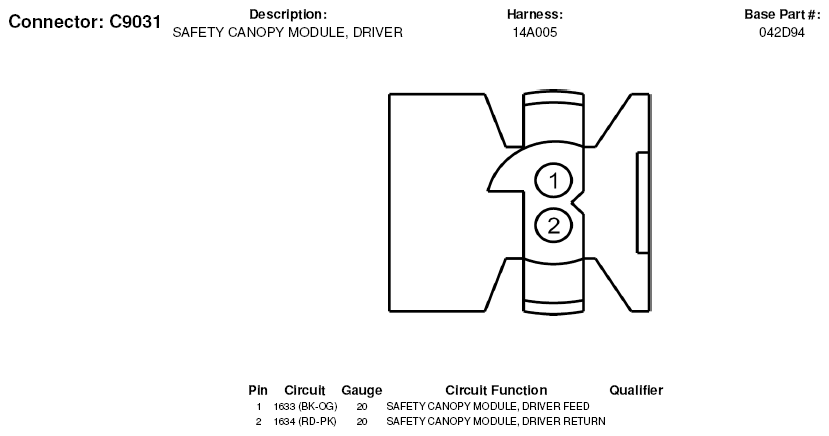

Fig 3: Safety Canopy Module Connector End View (C9031)
G05179670Courtesy of FORD MOTOR CO.

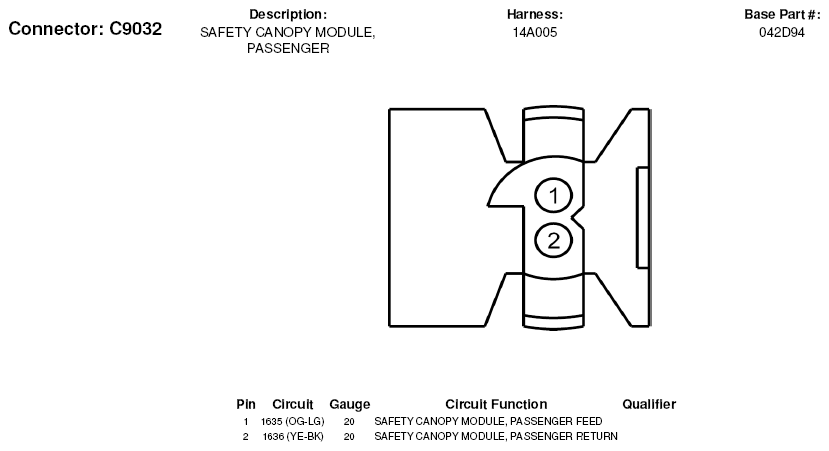

Fig 4: Safety Canopy Module Connector End View (C9032)
G05179671Courtesy of FORD MOTOR CO.
