Auxiliary Function Selector Switch Connector

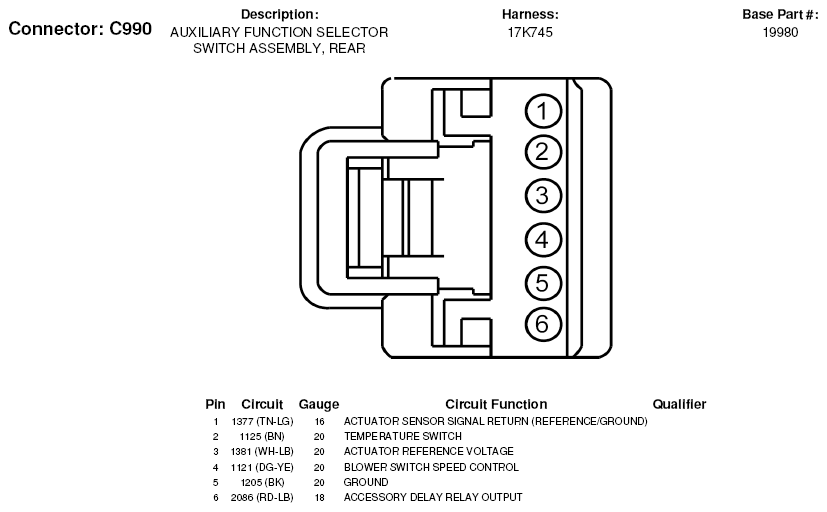

Fig 1: Auxiliary Function Selector Switch Connector End View (C990)
G05179560Courtesy of FORD MOTOR CO.
