Master window adjust switch (14529A): Schematic

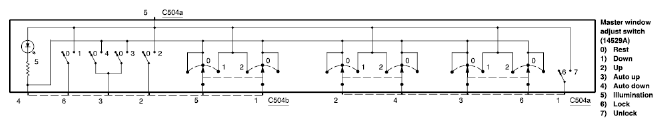

Fig 1: Master Window Adjust Switch (14529A) - Schematic

G05178931

Courtesy of FORD MOTOR CO.
