Seat adjust switch, driver side front (14A701): Schematic

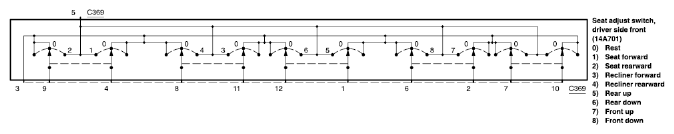

Fig 1: Seat Adjust Switch, Driver Side Front (14A701) - Schematic
G05178941Courtesy of FORD MOTOR CO.
