Fusion AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Control Module
>>
Locations
>>
Active Torque Control Coupling Solenoid
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Active Torque Control Coupling Solenoid

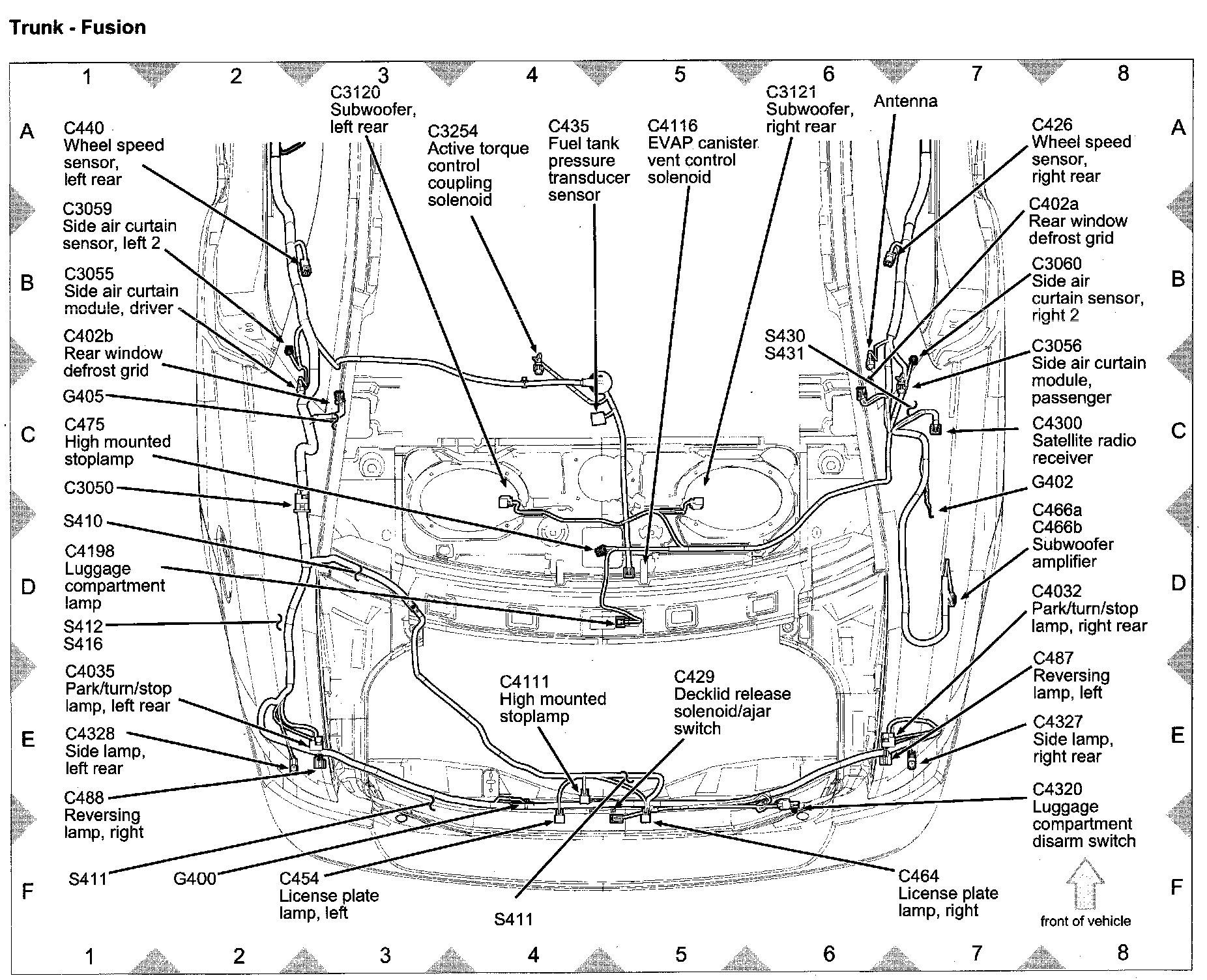

View 151-29 (Trunk - Fusion):
