Oil Pan, Engine

Oil Pan bolts

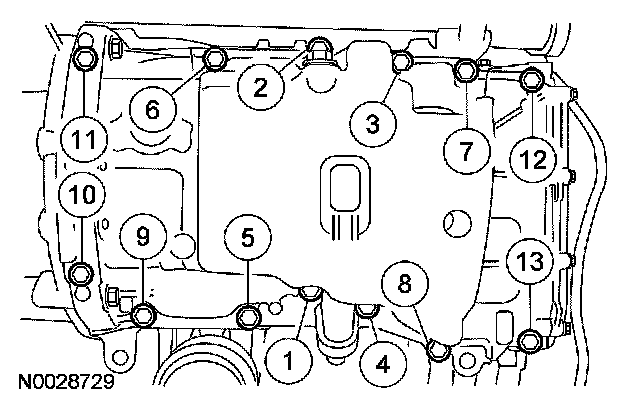

^ Tighten the oil pan bolts in the sequence shown.
^ Tighten to 25 Nm (18 ft. lbs.)
